SI8641 Series

Catalog

DGTL ISO 5000VRMS 4CH GP 16SOIC

Part	Pulse Width Distortion (Max) [Max]	Package / Case	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Type	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Technology	Supplier Device Package	Mounting Type	Propagation Delay tpLH / tpHL (Max)	Number of Channels [custom]	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Common Mode Transient Immunity (Min) [Min]	Package / Case [x]	Package / Case [y]	Voltage - Isolation	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Qualification	Grade	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Package / Case
Skyworks Solutions Inc. SI8641BD-B-IS2	4.5 ns	16-SOIC	7.5 mm	0.295 "	125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-SOIC	Surface Mount	13 ns	4	Unidirectional	4 ns	4 ns	150 Mbps	5.5 V	2.5 V	50 kV/çs

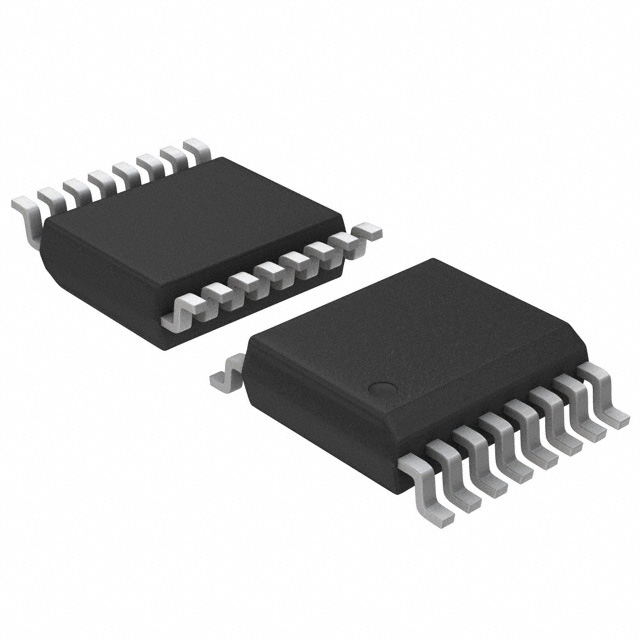

Skyworks Solutions Inc. SI8641BB-B-IUR	4.5 ns	16-SSOP			125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-QSOP	Surface Mount	13 ns	4	Unidirectional			150 Mbps	5.5 V	2.5 V	35 kV/µs	0.154 in	3.9 mm	2500 Vrms	2.5 ns	2.5 ns
Skyworks Solutions Inc. SI8641ED-AS	4.5 ns	16-SOIC	7.5 mm	0.295 "	125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-SOIC	Surface Mount	13 ns	4	Unidirectional			150 Mbps	5.5 V	2.375 V	60 kV/µs				2.5 ns	2.5 ns	AEC-Q100	Automotive
Skyworks Solutions Inc. SI8641BD-ASR	4.5 ns	16-SOIC	7.5 mm	0.295 "	125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-SOIC	Surface Mount	13 ns	4	Unidirectional			150 Mbps	5.5 V	2.375 V	35 kV/µs				2.5 ns	2.5 ns	AEC-Q100	Automotive
Skyworks Solutions Inc. SI8641ED-B-IS	4.5 ns	16-SOIC	7.5 mm	0.295 "	125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-SOIC	Surface Mount	13 ns	4	Unidirectional			150 Mbps	5.5 V	2.5 V	35 kV/µs				2.5 ns	2.5 ns
Skyworks Solutions Inc. SI8641BA-B-IU	4.5 ns	16-SSOP			125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-QSOP	Surface Mount	13 ns	4	Unidirectional			150 Mbps	5.5 V	2.5 V	35 kV/µs	0.154 in	3.9 mm	1000 VAC	2.5 ns	2.5 ns
Skyworks Solutions Inc. SI8641BA-AUR	4.5 ns	16-SSOP			125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-QSOP	Surface Mount	13 ns	4	Unidirectional			150 Mbps	5.5 V	2.375 V	35 kV/µs	0.154 in	3.9 mm	1000 VAC	2.5 ns	2.5 ns	AEC-Q100	Automotive
Skyworks Solutions Inc. SI8641BB-B-IS	4.5 ns	16-SOIC	7.5 mm	0.295 "	125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-SOIC	Surface Mount	13 ns	4	Unidirectional			150 Mbps	5.5 V	2.5 V	35 kV/µs			2500 Vrms	2.5 ns	2.5 ns
Skyworks Solutions Inc. SI8641AB-B-IS1R	25 ns	16-SOIC			125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-SOIC	Surface Mount		4	Unidirectional			1 Mbps	5.5 V	2.5 V	35 kV/µs			2500 Vrms	2.5 ns	2.5 ns			35 ns	35 ns	0.154 in 3.9 mm
Skyworks Solutions Inc. SI8641ET-ASR	4.5 ns	16-SOIC	7.5 mm	0.295 "	125 °C	-40 C	General Purpose	3	1	Capacitive Coupling	16-SOIC	Surface Mount	13 ns	4	Unidirectional			150 Mbps	5.5 V	2.375 V	35 kV/µs				2.5 ns	2.5 ns	AEC-Q100	Automotive
