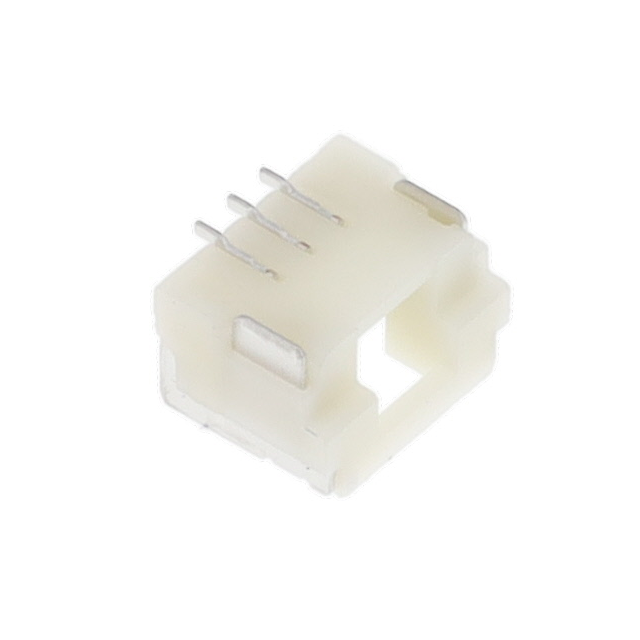

G880031 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
WIRE TO BOARD 1.25MM PITCH,STR S
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Termination | Contact Material | Number of Positions Loaded | Mounting Type | Connector Type | Material Flammability Rating | Style | Features | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Insulation Material | Insulation Color | Contact Shape | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Insulation Height | Insulation Height | Number of Rows | Voltage Rating | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 2.54 µm | 100 µin | 100 çin | 2.54 çm | Male Pin | Solder | Copper Alloy | All | Surface Mount | Header | UL94 V-0 | Board to Cable/Wire | Solder Retention | 0.049 in | 1.25 mm | Tin | Nylon 6T Polyamide (PA6T) | Natural | Rectangular | 85 °C | -25 °C | Shrouded - 4 Wall | 4.4 mm | 0.173 in | 1 | 100 VAC | Latch Holder |
