K10F1C-P Series
Manufacturer: ODU
Beta
⌘K

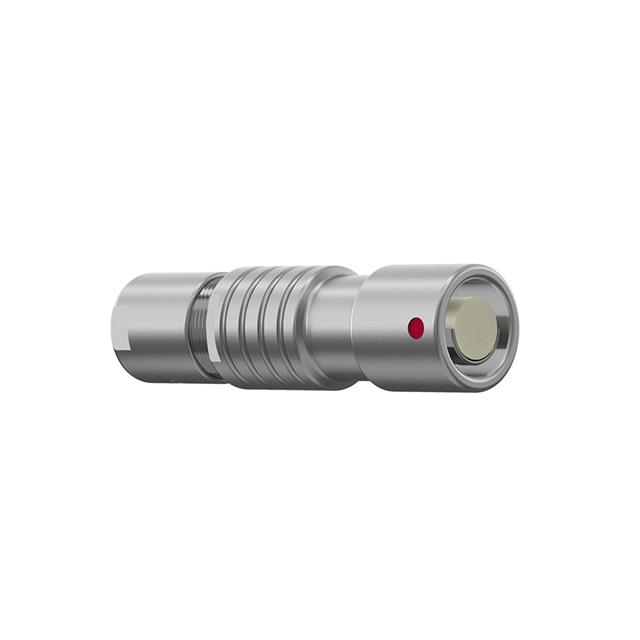

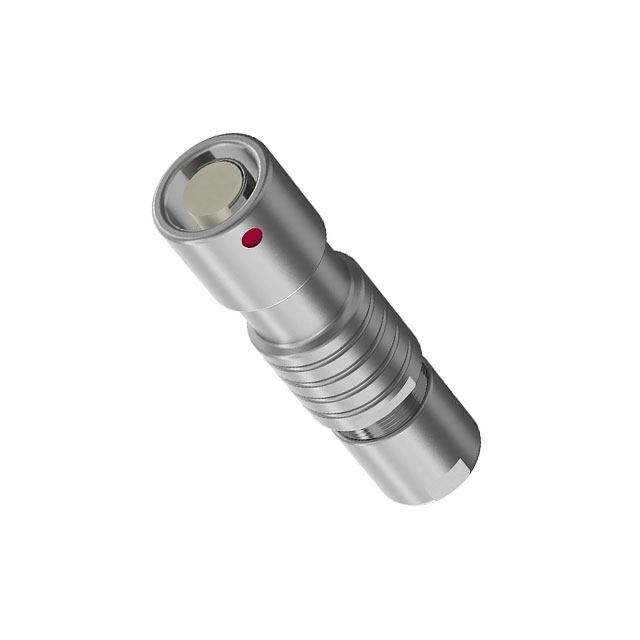

ODU MINI-SNAP INLINE RECEPTACLE,
| Part | Shell Finish | Connector Type | Current Rating (Amps) | Ingress Protection | Voltage Rating | Number of Positions | Backshell Material, Plating | Fastening Type | Orientation [custom] | Material Flammability Rating | Insert Material | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Min] | Contact Finish - Mating | Shell Size - Insert [custom] | Features | Applications | Shielding | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Primary Material | Mounting Type | Shell Material | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Chrome over Nickel | Receptacle Female Sockets | 7.5 A | IP50 - Dust Protected | 200 V | 5 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 3.5 mm | 3 mm | 0.138 in | 0.118 in | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | |
Chrome over Nickel | Receptacle Female Sockets | 7.5 A | IP50 - Dust Protected | 500 V | 2 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 3 mm | 2.5 mm | 0.118 " | 0.098 in | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | |
Chrome over Nickel | Receptacle Female Sockets | 7.5 A | IP50 - Dust Protected | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 5 mm | 4.5 mm | 0.197 in | 0.177 in | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | ||||
Chrome over Nickel | Receptacle Female Sockets | 7.5 A | IP50 - Dust Protected | 500 V | 2 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 4.5 mm | 4 mm | 0.177 " | 0.157 in | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | |
Chrome over Nickel | Receptacle Female Sockets | 4 A | IP50 - Dust Protected | 7 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 4.5 mm | 4 mm | 0.177 " | 0.157 in | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | |||
Chrome over Nickel | Receptacle Female Sockets | 7.5 A | IP50 - Dust Protected | 500 V | 2 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 4 mm | 3.5 mm | 0.157 in | 0.138 " | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | |
Chrome over Nickel | Receptacle Female Sockets | 7.5 A | IP50 - Dust Protected | 300 VDC | 4 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 5 mm | 4.5 mm | 0.197 in | 0.177 in | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | |
Chrome over Nickel | Receptacle Female Sockets | 7.5 A | IP50 - Dust Protected | 300 VDC | 4 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 3.5 mm | 3 mm | 0.138 in | 0.118 in | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | |
Chrome over Nickel | Receptacle Female Sockets | 4 A | IP50 - Dust Protected | 300 VDC | 9 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 2 mm | 1.5 mm | 0.079 " | 0.059 " | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver | |
Chrome over Nickel | Receptacle Female Sockets | 4 A | IP50 - Dust Protected | 300 VDC | 7 | Brass Chrome over Nickel | Push-Pull | 1 | UL94 V-0 | Polyetheretherketone (PEEK) | 1.5 mm | 1 mm | 0.059 in | 0.039 in | Gold | 0 | Backshell | Industrial Medical Military Testing Equipment & Measurement | Unshielded | Brass | 120 °C | -40 C | Metal | Free Hanging (In-Line) | Brass | Silver |
