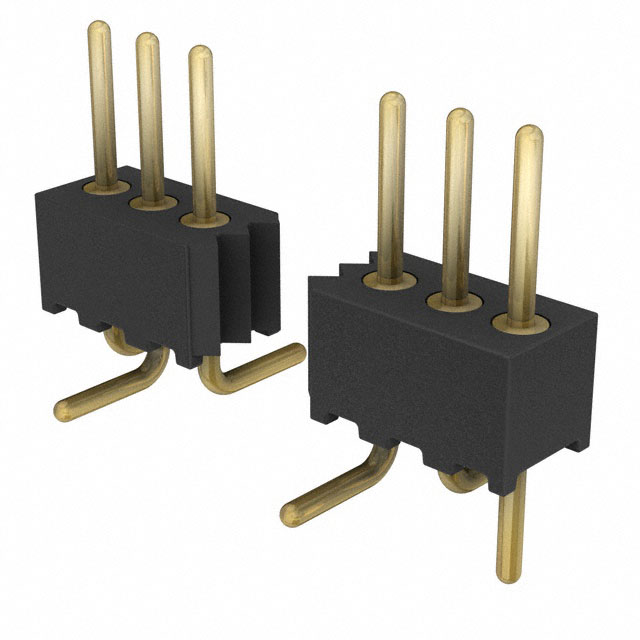

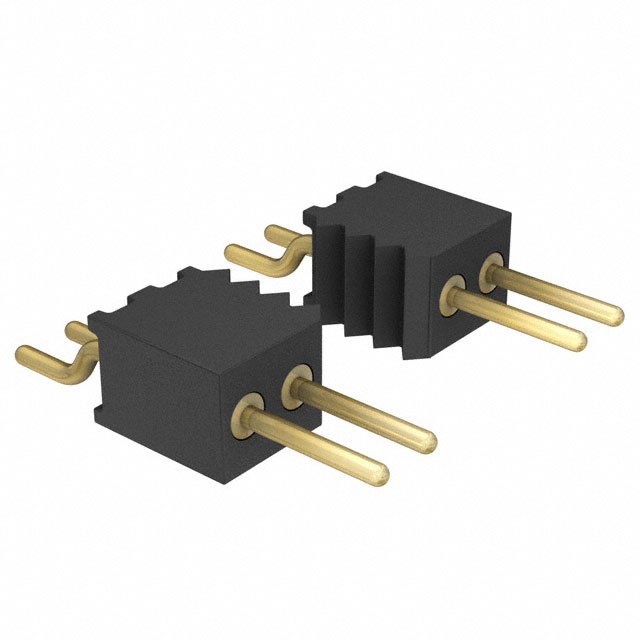

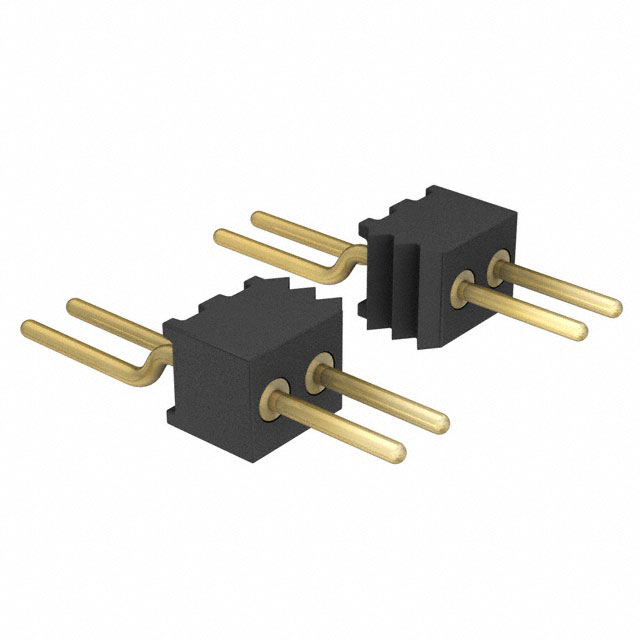

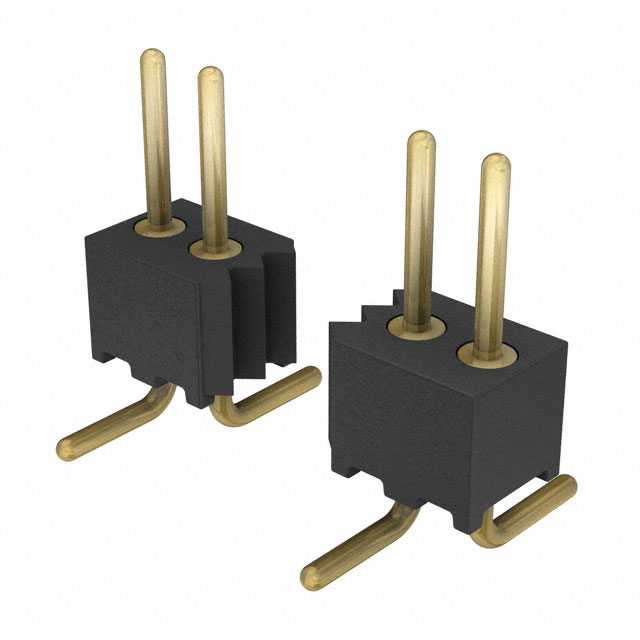

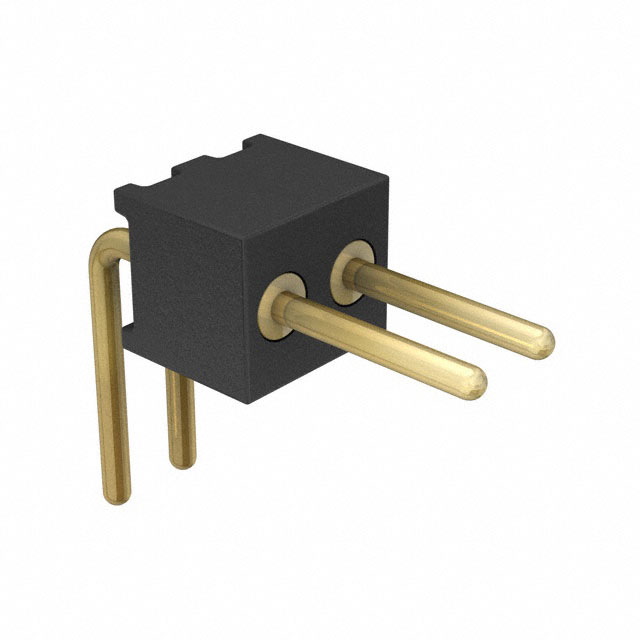

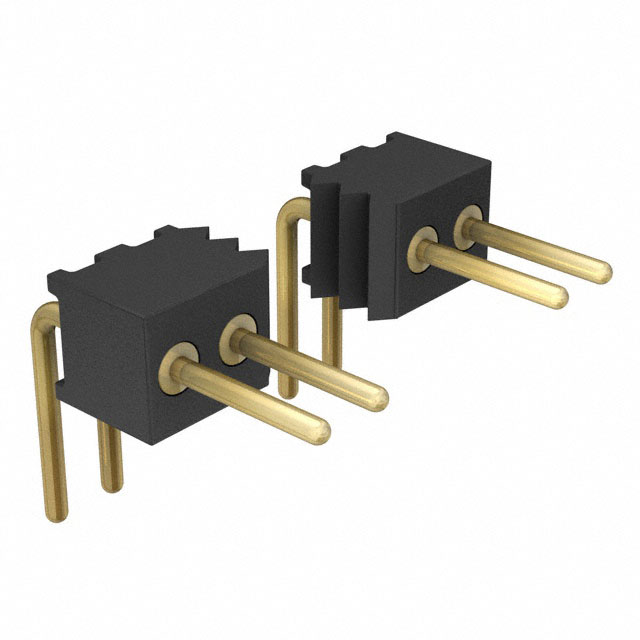

850-10 Series

Manufacturer: Preci-Dip

Catalog

Catalog

CONN HEADER SMD R/A 28POS 1.27MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Contact Type	Insulation Height	Insulation Height	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Shrouding	Voltage Rating	Insulation Material	Contact Shape	Contact Finish - Mating	Insulation Color	Mounting Type	Connector Type	Fastening Type	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Number of Rows	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Features	Contact Length - Post	Contact Length - Post	Number of Positions [custom]
Preci-Dip 850-10-028-40-001101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Right Angle Surface Mount	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	28	1	Solder
Preci-Dip 850-10-015-40-251101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Right Angle Surface Mount	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	15	1	Solder

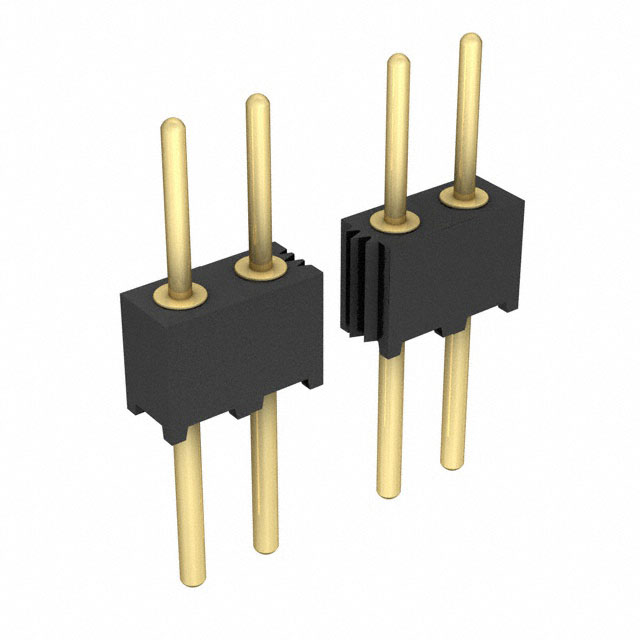

Preci-Dip 850-10-021-10-001101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Through Hole	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	21	1	Solder	0.114 in	2.9 mm	8.1 mm	0.319 in
Preci-Dip 850-10-030-30-135101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Surface Mount	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	30	1	Solder					Board Guide
Preci-Dip 850-10-041-30-001101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Surface Mount	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	41	1	Solder
Preci-Dip 850-10-015-20-001101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Right Angle Through Hole	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	15	1	Solder						0.118 in	3 mm
Preci-Dip 850-10-033-20-001101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Right Angle Through Hole	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin		1	Solder						0.118 in	3 mm	33
Preci-Dip 850-10-044-40-251101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Right Angle Surface Mount	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	44	1	Solder
Preci-Dip 850-10-014-20-001101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Right Angle Through Hole	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	14	1	Solder						0.118 in	3 mm
Preci-Dip 850-10-044-20-001101	10 Áin	0.25 çm	Gold	Male Pin	0.087 "	2.2 mm	Brass	-55 C	125 °C	All	Unshrouded	150 VDC	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	Gold	Black	Right Angle Through Hole	Header	Push-Pull	UL94 V-0	1.27 mm	0.05 in	3 mm	0.118 in	0.25 µm	10 µin	44	1	Solder						0.118 in	3 mm
