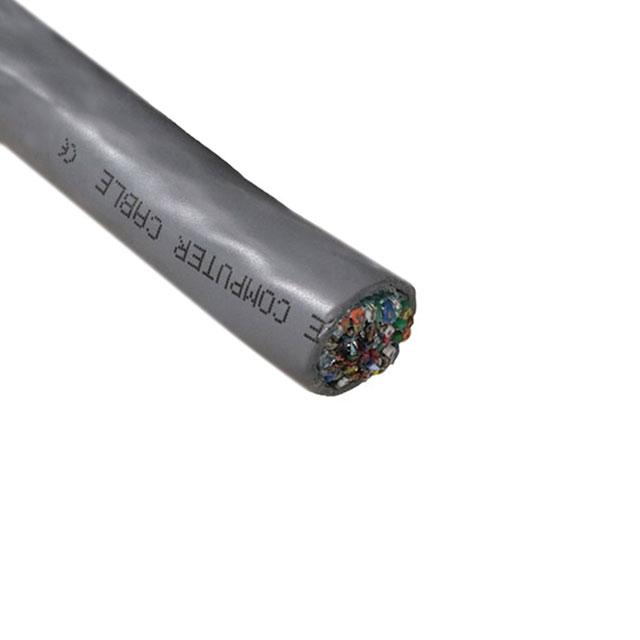

M13127 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 54COND 22AWG
| Part | Shield Coverage | Shield Material | Jacket Color | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Voltage | Conductor Material | Wire Gauge | Conductor Insulation | Shield Type | Features | Ratings | Cable Type | Jacket (Insulation) Material | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | Slate | 54 Conductors | 80 °C | -20 ░C | 152.4 m | 500 ft | 300 VDC | Copper Tinned | 22 AWG | Polypropylene (PP) | Foil | Drain Wire | UL Style 2919 | Multi-Pair | Poly-Vinyl Chloride (PVC) | 28 AWG | 7 | 17.4 mm | 0.685 in | 0.05 in | 1.27 mm |
