WP7083 Series

Catalog

LED BLUE DIFFUSED T-1 3/4 T/H

Part	Voltage - Forward (Vf) (Typ)	Lens Style	Wavelength - Peak	Size / Dimension [diameter]	Package / Case	Lens Transparency	Configuration	Supplier Device Package	Color	Lens Size	Lens Size	Wavelength - Dominant	Mounting Type	Height (Max) [Max] [z]	Viewing Angle	Millicandela Rating	Lens Color	Current - Test

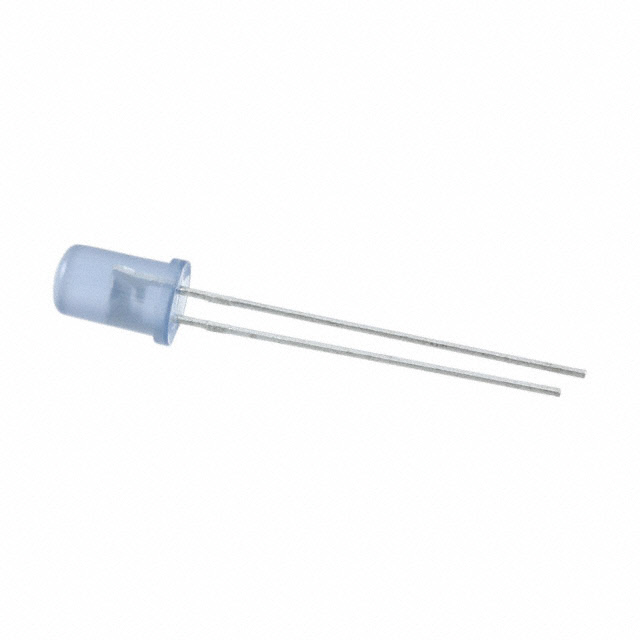

Kingbright WP7083QBD/G	3.3 V	Round with Domed Top	461 nm	5 mm	Radial	Diffused	Standard	T-1 3/4	Blue	5 mm	T-1 3/4	465 nm	Through Hole	8.6 mm	60 °	360 mcd	Blue	20 mA
Kingbright WP7083SYD/J3	2 V	Round with Domed Top	590 nm	5 mm	Radial	Diffused	Standard	T-1 3/4	Yellow	5 mm	T-1 3/4	590 nm	Through Hole	8.6 mm	60 °	1000 mcd	Yellow	20 mA

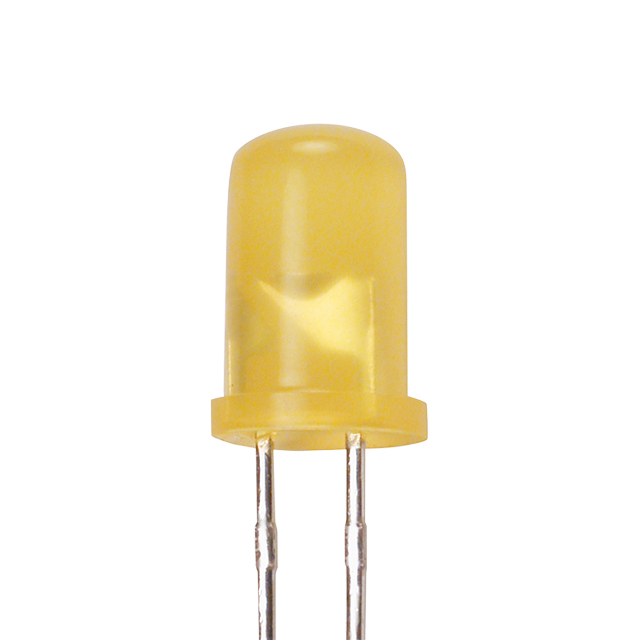

Kingbright WP7083SYDK/J3	2 V	Round with Domed Top	590 nm	5 mm	Radial	Diffused	Standard	T-1 3/4 (5mm)	Yellow	5 mm	T-1 3/4	590 nm	Through Hole	9.85 mm	60 °	900 mcd	Yellow	20 mA

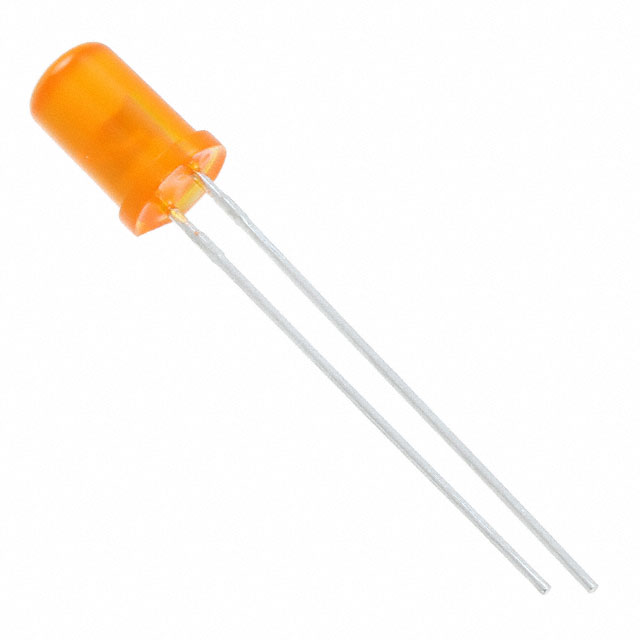

Kingbright WP7083SED/J3	2.2 V	Round with Domed Top	640 nm	5 mm	Radial	Diffused	Standard	T-1 3/4	Red	5 mm	T-1 3/4	625 nm	Through Hole	8.6 mm	60 °	1200 mcd	Orange	20 mA
Kingbright WP7083ZGD/G	3.2 V	Round with Domed Top	520 nm	5 mm	Radial	Diffused	Standard	T-1 3/4	Green	5 mm	T-1 3/4	525 nm	Through Hole	8.6 mm	60 °	2200 mcd	Green	20 mA

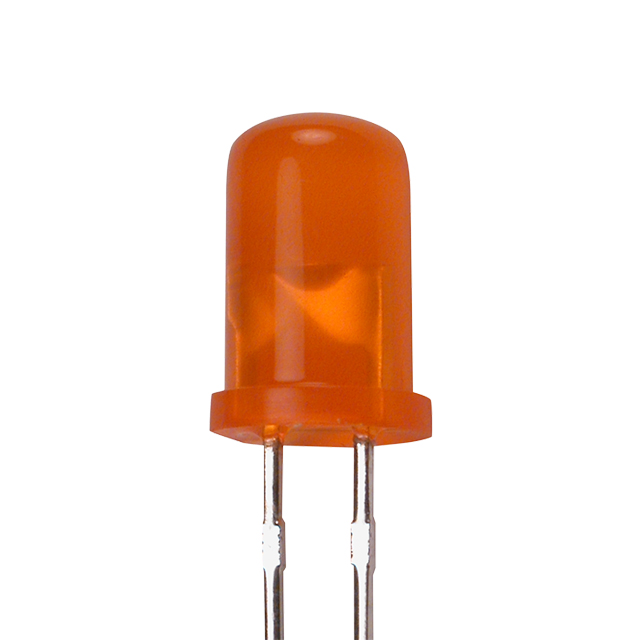

Kingbright WP7083SEDK/J3	2.2 V	Round with Domed Top	640 nm	5 mm	Radial	Diffused	Standard	T-1 3/4	Red	5 mm	T-1 3/4	625 nm	Through Hole	9.85 mm	60 °	1500 mcd	Orange	20 mA
