9545 Series

Catalog

CABLE 40COND 24AWG CHRM SHD

Part	Shield Material	Shield Coverage	Jacket (Insulation) Material	Ratings	Features	Wire Gauge	Length	Length	Cable Type	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Jacket Color	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Number of Conductors	Shield Type	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length [x]	Length [x]
Belden Inc. 9545 060500	Aluminum	100 %	Poly-Vinyl Chloride (PVC)	UL Style 2464	Drain Wire	24 AWG	152.4 m	500 ft	Multi-Conductor	Computer	80 °C	-30 ░C	Chrome	Copper Tinned	1.016 mm	0.04 in	7	32 AWG	300 VDC	40	Foil	Poly-Vinyl Chloride (PVC)	0.406 "	10.31 mm

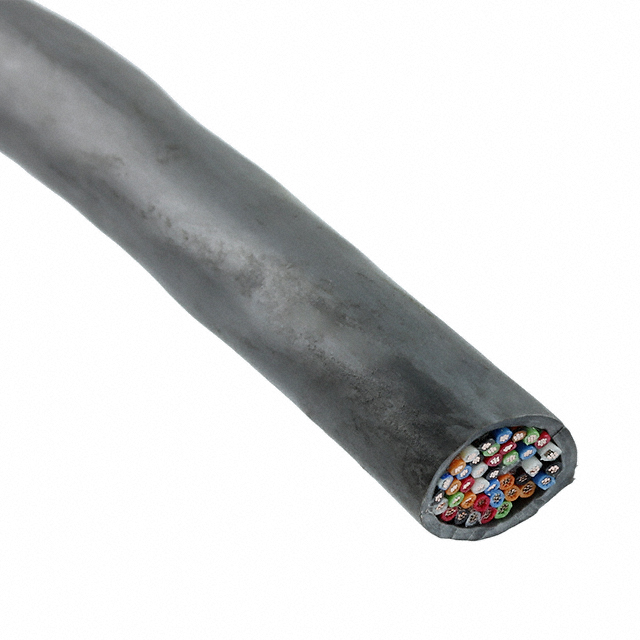

Belden Inc. 9545 060100	Aluminum	100 %	Poly-Vinyl Chloride (PVC)	UL Style 2464	Drain Wire	24 AWG			Multi-Conductor	Computer	80 °C	-30 ░C	Chrome	Copper Tinned	1.016 mm	0.04 in	7	32 AWG		40	Foil	Poly-Vinyl Chloride (PVC)	0.406 "	10.31 mm	100 ft	30.5 m

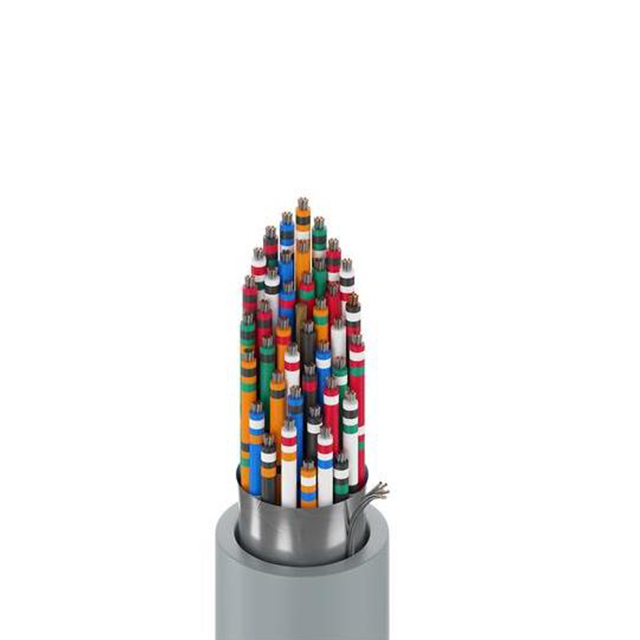

Belden Inc. 9545 0601000	Aluminum	100 %	Poly-Vinyl Chloride (PVC)	UL Style 2464	Drain Wire	24 AWG	304.8 m	1000 ft	Multi-Conductor	Computer	80 °C	-30 ░C	Chrome	Copper Tinned	1.016 mm	0.04 in	7	32 AWG	300 VDC	40	Foil	Poly-Vinyl Chloride (PVC)	0.406 "	10.31 mm
