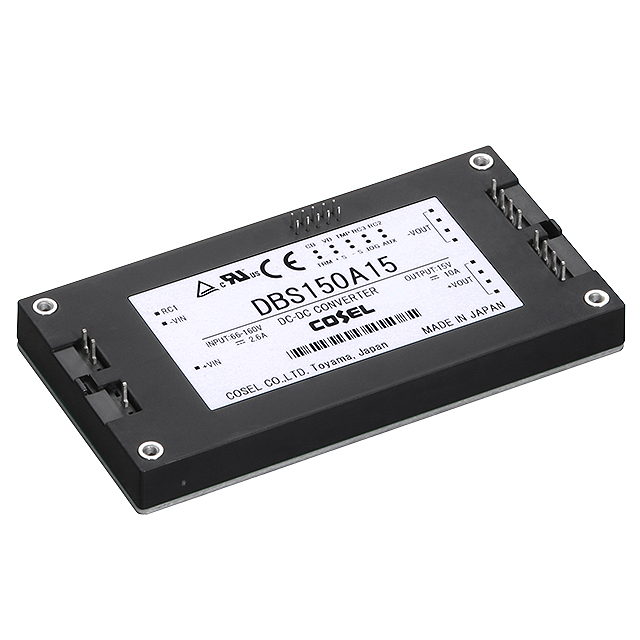

DBS150 Series

Catalog

DC DC CONVERTER 12V

Part	Number of Outputs	Package / Case	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Efficiency	Features	Applications	Voltage - Input (Min) [Min]	Power (Watts)
Cosel USA, Inc. DBS150A12	1	21-DIP Module	Through Hole	Isolated Module	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm	3000 V	85 °C	-20 ░C	12 V	12.5 A	160 V	87 %	OCP OTP OVP Remote On/Off	ITE (Commercial)	66 V
Cosel USA, Inc. DBS150A24	1	21-DIP Module	Through Hole	Isolated Module	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm		85 °C	-20 °C	24 V	6.3 A	160 V	87 %		ITE (Commercial)	66 V	151 W
Cosel USA, Inc. DBS150A15	1	21-DIP Module	Through Hole	Isolated Module	2.4 in	4.6 "	12.7 mm	0.5 in	61 mm	116.8 mm		85 °C	-20 °C	15 V	10 A	160 V	86 %		ITE (Commercial)	66 V	150 W
