802-40 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

Catalog

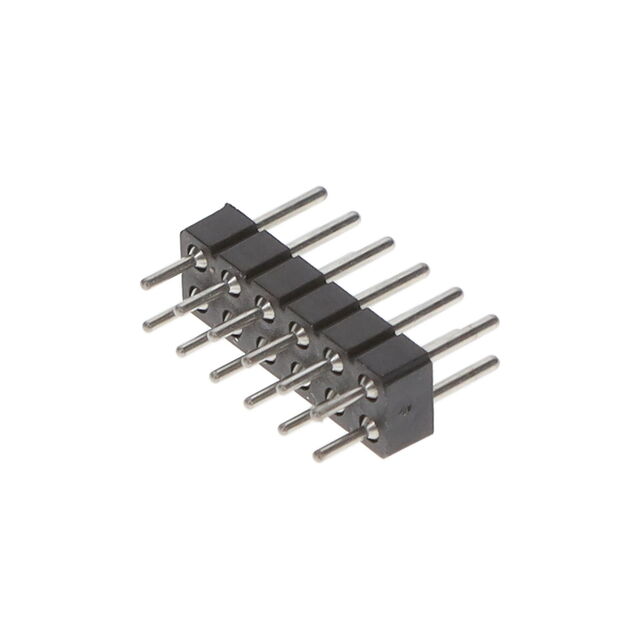

CONN HEADER VERT 8POS 2.54MM

...

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Contact Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Mounting Type	Shrouding	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Termination	Contact Shape	Insulation Color	Fastening Type	Contact Material	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Insulation Material	Overall Contact Length	Overall Contact Length	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Mill-Max Manufacturing Corp. 802-40-008-10-001000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.118 in	3 mm	Tin	Through Hole	Unshrouded	4.95 mm	0.195 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	8	Polycyclohexylenedimethylene Terephthalate (PCT)	0.438 in	11.12 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 802-40-086-10-004000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.125 in	3.18 mm	Tin	Through Hole	Unshrouded	3.18 mm	0.125 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	86	Polycyclohexylenedimethylene Terephthalate (PCT)	0.33 in	8.38 mm	0.1 in	2.54 mm	1.8 mm	0.071 in
Mill-Max Manufacturing Corp. 802-40-018-61-001000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.104 in	2.64 mm	Tin	Through Hole	Unshrouded	4.85 mm	0.191 in	All	Press-Fit Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	18	Polycyclohexylenedimethylene Terephthalate (PCT)	0.405 in	10.29 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 802-40-022-20-001000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin			Tin	Right Angle Through Hole	Unshrouded	4.95 mm	0.195 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	22	Polycyclohexylenedimethylene Terephthalate (PCT)			0.1 in	2.54 mm			0.2 in	5.08 mm	0.126 "	3.2 mm
Mill-Max Manufacturing Corp. 802-40-064-10-002000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.118 in	3 mm	Tin	Through Hole	Unshrouded	3.61 mm	0.142 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	64	Polycyclohexylenedimethylene Terephthalate (PCT)			0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 802-40-056-10-001000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.118 in	3 mm	Tin	Through Hole	Unshrouded	4.95 mm	0.195 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	56	Polycyclohexylenedimethylene Terephthalate (PCT)	0.438 in	11.12 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 802-40-042-10-001000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.118 in	3 mm	Tin	Through Hole	Unshrouded	4.95 mm	0.195 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	42	Polycyclohexylenedimethylene Terephthalate (PCT)	0.438 in	11.12 mm	0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 802-40-026-10-002000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.118 in	3 mm	Tin	Through Hole	Unshrouded	3.61 mm	0.142 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	26	Polycyclohexylenedimethylene Terephthalate (PCT)			0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 802-40-018-10-002000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.118 in	3 mm	Tin	Through Hole	Unshrouded	3.61 mm	0.142 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	18	Polycyclohexylenedimethylene Terephthalate (PCT)			0.1 in	2.54 mm
Mill-Max Manufacturing Corp. 802-40-012-10-001000	200 µin	5.08 µm	2	0.1 "	2.54 mm	Male Pin	0.118 in	3 mm	Tin	Through Hole	Unshrouded	4.95 mm	0.195 in	All	Solder	Circular	Black	Push-Pull	Brass Alloy	Header	5.08 µm	200 µin	12	Polycyclohexylenedimethylene Terephthalate (PCT)	0.438 in	11.12 mm	0.1 in	2.54 mm
