TX25-30P Series
Manufacturer: JAE Electronics
Beta
⌘K
BOARD TO BOARD & MEZZANINE CONNECTORS 30P PLUG STRAIGHT
| Part | Contact Finish Thickness | Contact Finish Thickness | Number of Rows [custom] | Mounting Type | Height Above Board [z] | Height Above Board [z] | Number of Positions | Mated Stacking Heights | Contact Finish | Pitch | Pitch | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

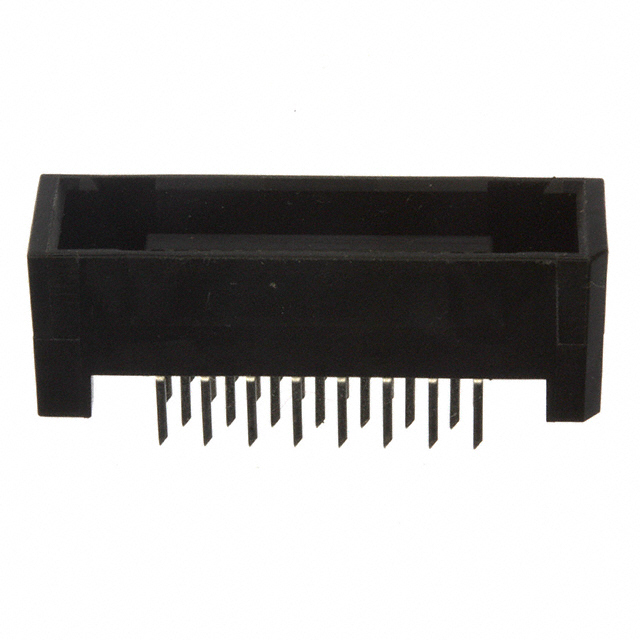

 JAE Electronics | 0.1 Ám | 4 Áin | 2 | Through Hole | 0.362 in | 9.2 mm | 30 | 12 mm 16 mm 18 mm | Gold | 0.05 in | 1.27 mm | |

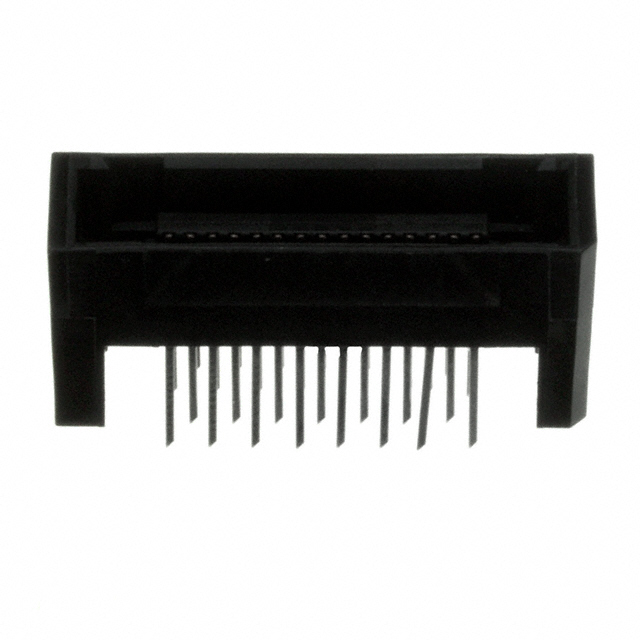

 JAE Electronics | 0.1 Ám | 4 Áin | 2 | Through Hole | 0.441 in | 11.2 mm | 30 | 14 mm 18 mm 20 mm | Gold | 0.05 in | 1.27 mm | |

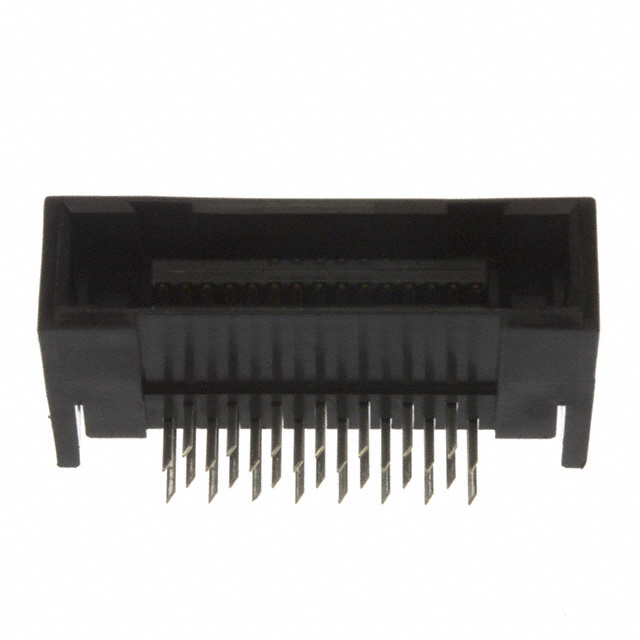

 JAE Electronics | 0.1 Ám | 4 Áin | 2 | Right Angle Through Hole | 0.354 in | 9 mm | 30 | Gold | 0.05 in | 1.27 mm | ||
 JAE Electronics | 0.1 Ám | 4 Áin | 2 | Through Hole | 0.598 " | 15.2 mm | 30 | 18 mm 22 mm 24 mm | Gold | 0.05 in | 1.27 mm | |

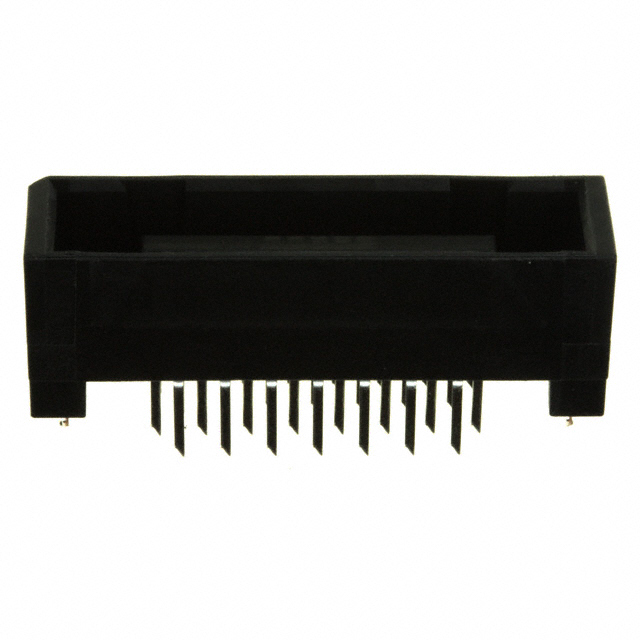

 JAE Electronics | 0.1 Ám | 4 Áin | 2 | Through Hole | 0.441 in | 11.2 mm | 30 | 14 mm 18 mm 20 mm | Gold | 0.05 in | 1.27 mm | Board Lock |
 JAE Electronics | 0.1 Ám | 4 Áin | 2 | Through Hole | 0.598 " | 15.2 mm | 30 | 18 mm 22 mm 24 mm | Gold | 0.05 in | 1.27 mm | |

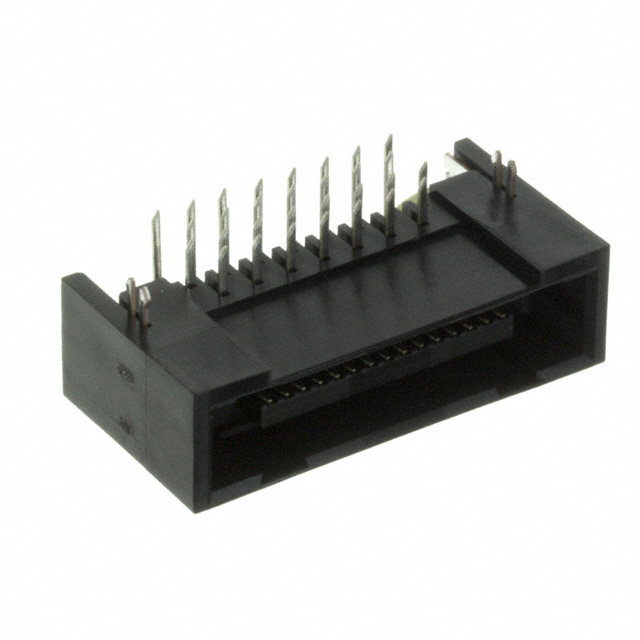

 JAE Electronics | 0.1 Ám | 4 Áin | 2 | Right Angle Through Hole | 0.354 in | 9 mm | 30 | Gold | 0.05 in | 1.27 mm | Board Lock |
