KTB8370 Series
Manufacturer: Kinetic Technologies
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

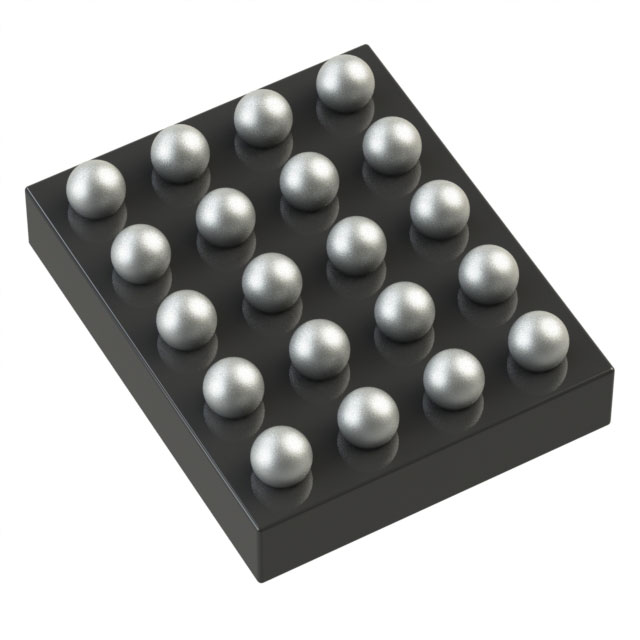

IC REG BUCK 1.8V 5A 20WLCSP
| Part | Mounting Type | Topology | Operating Temperature (Min) | Operating Temperature (Max) | Voltage - Output (Min/Fixed) | Function | Frequency - Switching | Synchronous Rectifier | Current - Output | Output Type | Package / Case | Number of Outputs | Voltage - Input (Max) | Package Name | Package Width | Package Length | Voltage - Input (Min) | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kinetic Technologies | Surface Mount | Buck | -40 °C | 150 °C | 1.8 V | Step-Down | 500 kHz | Yes | 5 A | Fixed | 20-WFBGA WLCSP | 1 | 17 V | 20-WLCSP | 2.06 mm | 1.75 mm | 4.7 V | Positive |
Kinetic Technologies | Surface Mount | Buck | -40 °C | 150 °C | 3.3 V | Step-Down | 500 kHz | Yes | 5 A | Fixed | 20-WFBGA WLCSP | 1 | 17 V | 20-WLCSP | 2.06 mm | 1.75 mm | 4.7 V | Positive |
Kinetic Technologies | Surface Mount | Buck | -40 °C | 150 °C | 5 V | Step-Down | 500 kHz | Yes | 5 A | Fixed | 20-WFBGA WLCSP | 1 | 17 V | 20-WLCSP | 2.06 mm | 1.75 mm | 4.7 V | Positive |
