HFW9S Series

Catalog

CONN FFC FPC VERT 9POS 1MM SMD

Part	Housing Color	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Housing Material	Contact Material	Contact Finish	Connector/Contact Type	Flat Flex Type	Pitch	Pitch	Number of Positions	FFC, FCB Thickness	Material Flammability Rating	Termination	Cable End Type	Mounting Type	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	FFC, FCB Thickness [custom]	FFC, FCB Thickness [custom]
Amphenol ICC (FCI) HFW9S-2STAE1HLF	Black	Flash	0.209 in	5.3 mm	Glass Filled Halogen Free Liquid Crystal Polymer (LCP)	Phosphor Bronze	Gold	Contacts Vertical - 1 Sided	FFC FPC	1 mm	0.039 in	9	0.3 mm	UL94 V-0	Solder	Straight Tapered	Surface Mount
Amphenol ICC (FCI) HFW9S-4STZE1HLF	Black		0.209 in	5.3 mm	Liquid Crystal Polymer (LCP) Halogen Free	Phosphor Bronze	Tin	Contacts Top	FFC FPC	1 mm	0.039 in	9	0.3 mm	UL94 V-0	Solder	Straight Tapered	Surface Mount	30	-55 C	105 ░C	100 V
Amphenol ICC (FCI) HFW9S-2STAE1LF	Black		0.209 in	5.3 mm	Glass Filled Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Gold	Contacts Vertical - 1 Sided	FPC	1 mm	0.039 in	9	0.3 mm	UL94 V-0	Solder	Tapered	Surface Mount	30	-55 C	85 °C	100 V

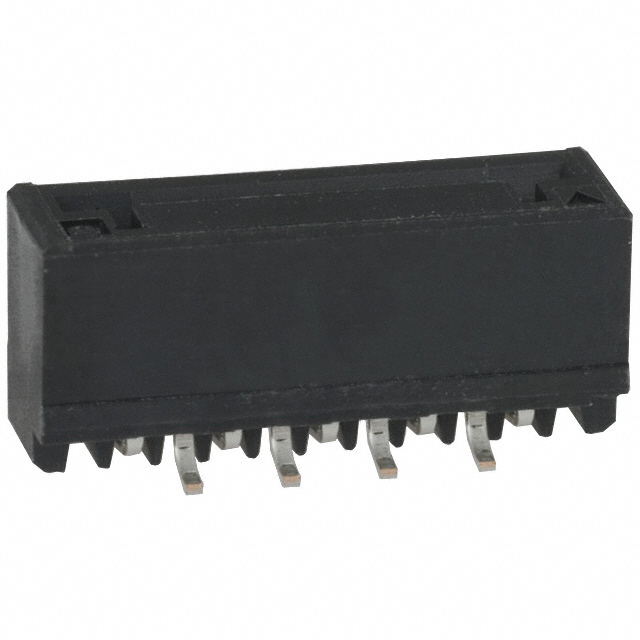

Amphenol ICC (FCI) HFW9S-2STE1LF	Black		0.209 in	5.3 mm	Glass Filled Nylon 6T Polyamide (PA6T)	Phosphor Bronze	Tin	Contacts Vertical - 1 Sided	FFC FPC	1 mm	0.039 in	9		UL94 V-0	Solder	Straight Tapered	Surface Mount	30	-55 C	85 °C	100 V	0.3 mm	0.33 mm
