276918 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

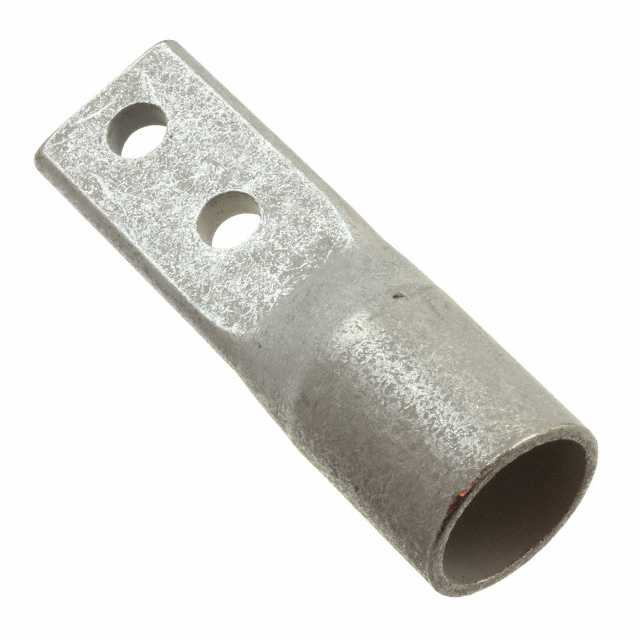

CONN TERM RECT 600 MCM #3/8
| Part | Terminal Style | Contact Finish | Length - Overall [x] | Length - Overall [x] | Terminal Type | Tab Thickness | Tab Thickness | Insulation | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Material | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Termination | Width - Outer Edges [y] | Width - Outer Edges [y] | Stud/Tab Size | Mounting Type | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Two Stud Holes | Tin | 4.18 " | 106.17 mm | Standard | 7.87 mm | 0.31 in | Non-Insulated | 1.075 " | 27.31 mm | Copper | 10.31 mm | 0.406 " | 33.43 mm | 1.316 in | Barrel Crimp | 32.51 mm | 1.28 in | 3/8 Stud | Free Hanging (In-Line) | 600 MCM (kcmil) |
