306-007 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 14POS 0.156

Part	Contact Type	Material - Insulation	Number of Positions/Bay/Row [custom]	Read Out	Features	Number of Positions	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Contact Finish	Number of Rows	Contact Material	Termination Rows	Gender	Color	Contact Finish Thickness	Contact Finish Thickness	Termination	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Mounting Type	Flange Feature [diameter]	Flange Feature [diameter]

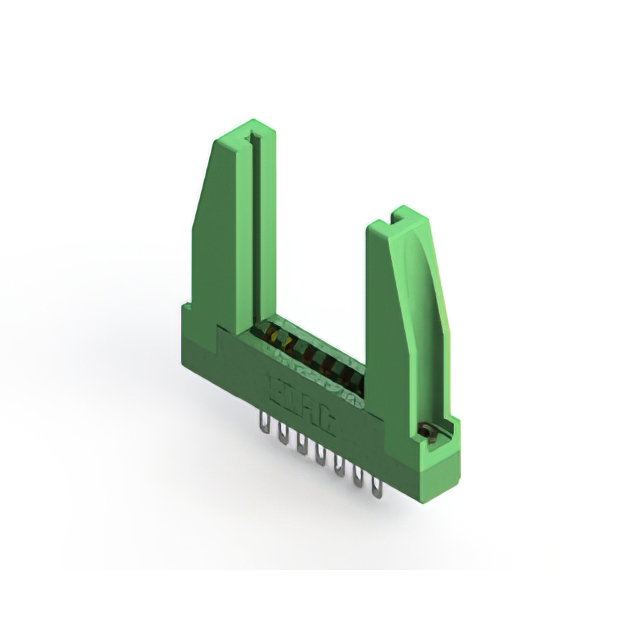

EDAC Inc. 306-007-500-178	Cantilever	Polyester Thermoplastic	7	Dual	Card Guides	14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	2	Copper Alloy	1	Female	Green	10 Áin	0.25 Ám	Solder Eyelet(s)	0.156 in	3.96 mm	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening

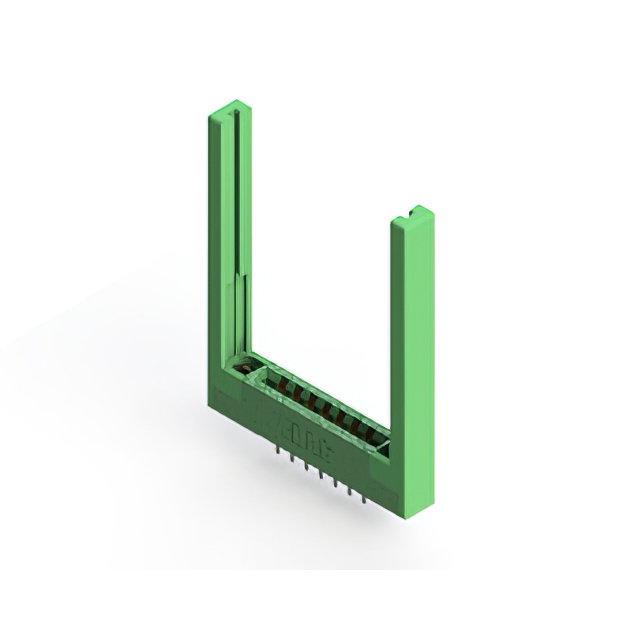

EDAC Inc. 306-007-520-168	Cantilever	Polyester Thermoplastic	7	Dual	Card Guides	14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	2	Copper Alloy	1	Female	Green	10 Áin	0.25 Ám	Solder	0.156 in	3.96 mm	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole
EDAC Inc. 306-007-521-104	Cantilever	Polyester Thermoplastic	7	Dual		14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	2	Copper Alloy	1	Female	Green	10 Áin	0.25 Ám	Solder	0.156 in	3.96 mm	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	3.96 mm	0.156 in
EDAC Inc. 306-007-521-158	Cantilever	Polyester Thermoplastic	7	Dual	Card Guides	14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	2	Copper Alloy	1	Female	Green	10 Áin	0.25 Ám	Solder	0.156 in	3.96 mm	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole

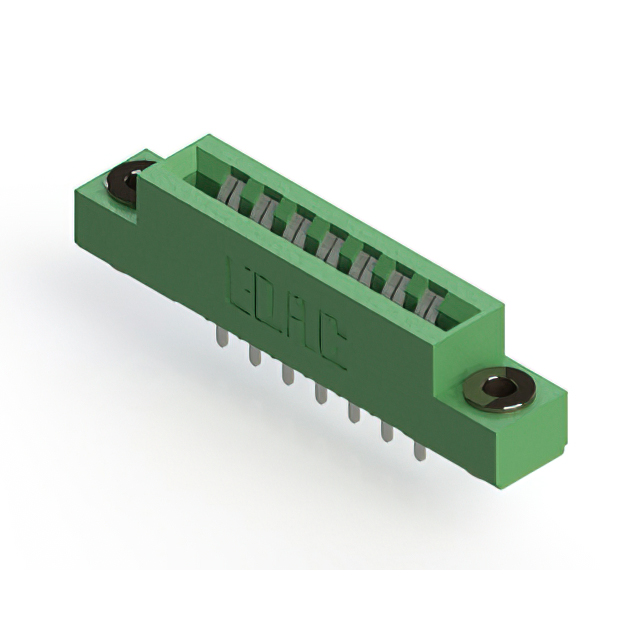

EDAC Inc. 306-007-420-103	Cantilever	Polyester Thermoplastic	7	Dual		14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Tin	2	Copper Alloy	1	Female	Green			Solder	0.156 in	3.96 mm	-40 °C	105 ░C	Floating Bobbin Flush Mount	Panel Mount Through Hole	2.95 mm	0.116 in
EDAC Inc. 306-007-521-103	Cantilever	Polyester Thermoplastic	7	Dual		14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	2	Copper Alloy	1	Female	Green	10 Áin	0.25 Ám	Solder	0.156 in	3.96 mm	-40 °C	105 ░C	Floating Bobbin Flush Mount	Panel Mount Through Hole	2.95 mm	0.116 in

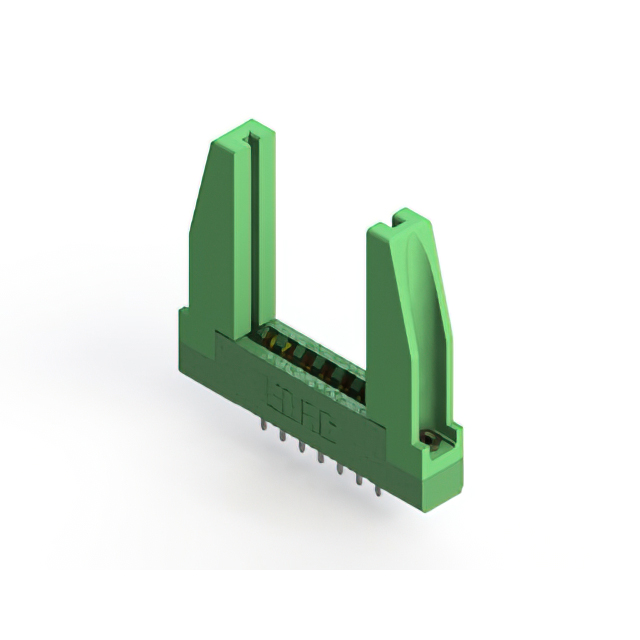

EDAC Inc. 306-007-520-178	Cantilever	Polyester Thermoplastic	7	Dual	Card Guides	14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	2	Copper Alloy	1	Female	Green	10 Áin	0.25 Ám	Solder	0.156 in	3.96 mm	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole

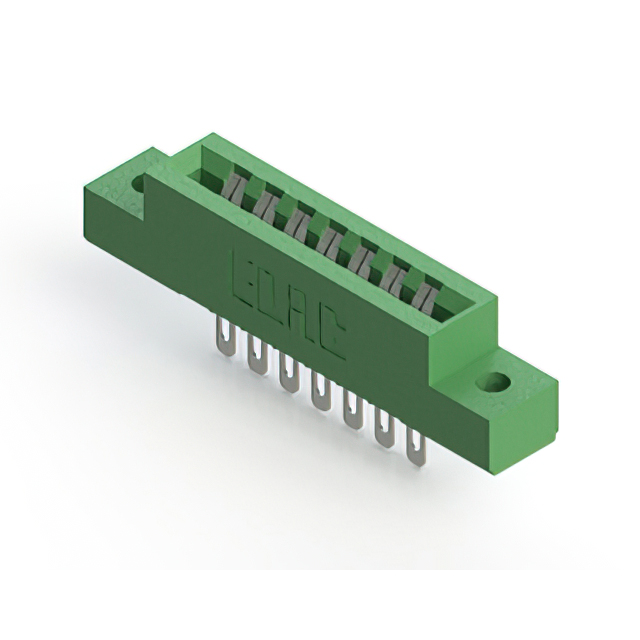

EDAC Inc. 306-007-400-102	Cantilever	Polyester Thermoplastic	7	Dual		14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Tin	2	Copper Alloy	1	Female	Green			Solder Eyelet(s)	0.156 in	3.96 mm	-40 °C	105 ░C	Flush Mount Top Opening Unthreaded		3.25 mm	0.128 "

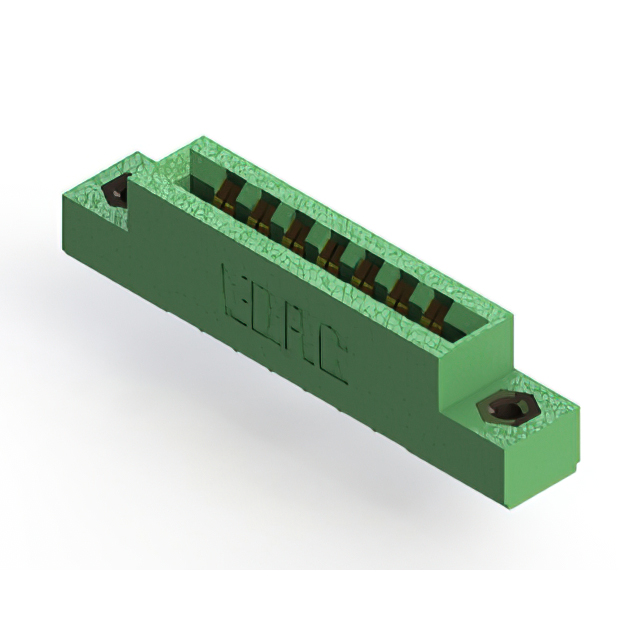

EDAC Inc. 306-007-521-108	Cantilever	Polyester Thermoplastic	7	Dual		14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	2	Copper Alloy	1	Female	Green	10 Áin	0.25 Ám	Solder	0.156 in	3.96 mm	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole
EDAC Inc. 306-007-521-168	Cantilever	Polyester Thermoplastic	7	Dual	Card Guides	14	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Gold	2	Copper Alloy	1	Female	Green	10 Áin	0.25 Ám	Solder	0.156 in	3.96 mm	-40 °C	105 ░C	4-40 Flush Mount Threaded Insert Top Opening	Panel Mount Through Hole
