1634219 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN D-SUB PLUG 15POS VERT SLDR
| Part | Connector Style | Mounting Type | Number of Positions | Voltage Rating | Color | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Features | Current Rating (Amps) | Shell Size, Connector Layout | Contact Type | Shell Material, Finish | Dielectric Material | Number of Rows | Contact Material | Flange Feature | Material Flammability Rating | Contact Finish | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

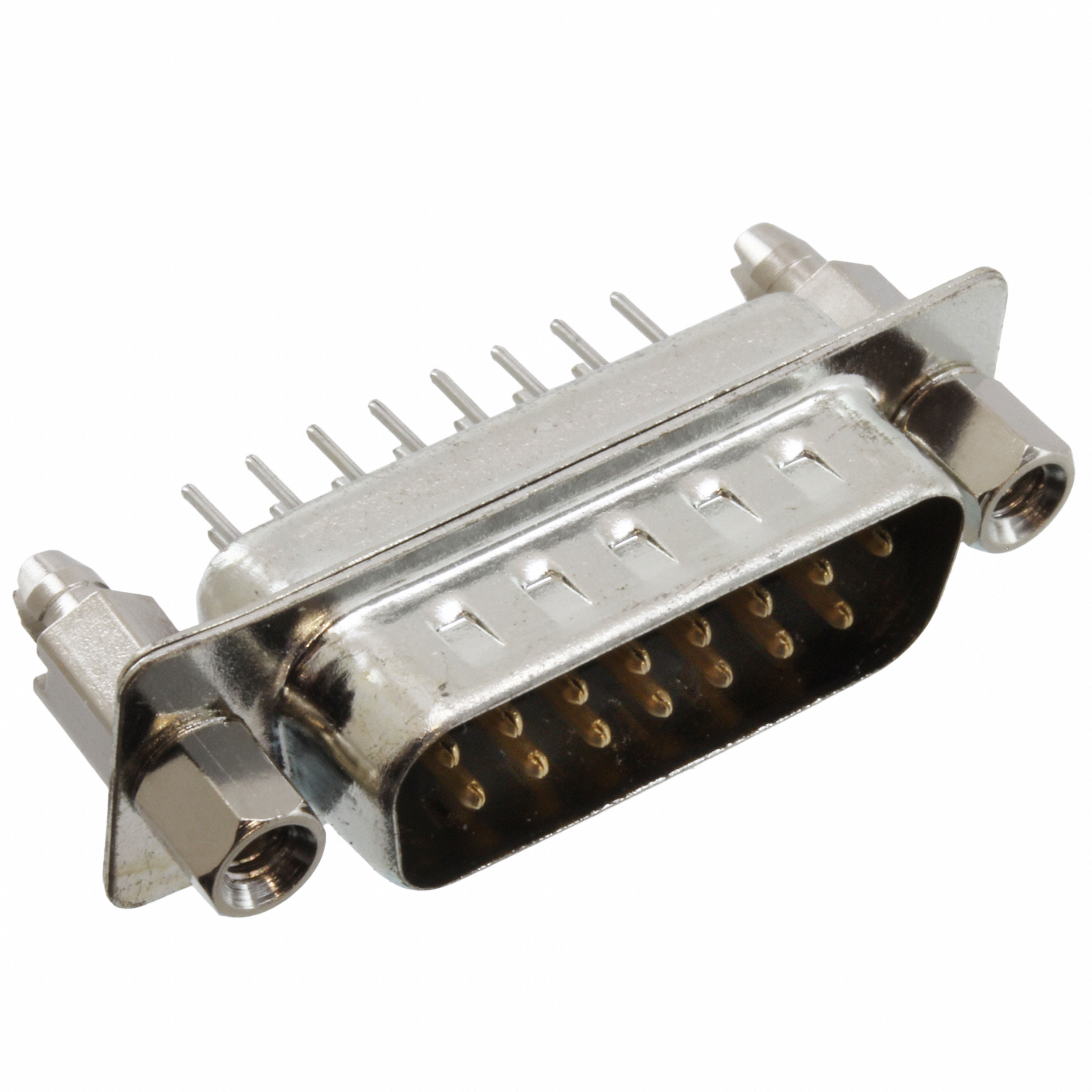

 TE Connectivity Raychem Cable Protection | D-Sub | Through Hole | 15 | 250 VDC | Black | 15 µin | 0.38 µm | Male Pins Plug | 105 ░C | -55 °C | Board Lock Grounding Indents | 3 A | 2 | Signal | Nickel Plated Steel | Thermoplastic | 2 | Brass | Female Screwlock (4-40) Mating Side | UL94 V-0 | Gold | Solder |

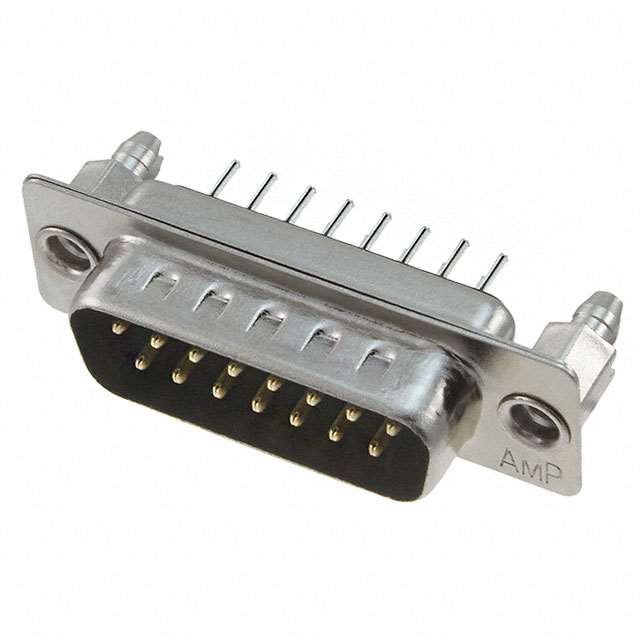

 TE Connectivity Raychem Cable Protection | D-Sub | Through Hole | 15 | 250 VDC | Black | 15 µin | 0.38 µm | Male Pins Plug | 105 ░C | -55 °C | Board Lock Grounding Indents | 3 A | 2 | Signal | Nickel Plated Steel | Thermoplastic | 2 | Brass | Housing/Shell (4-40) | UL94 V-0 | Gold | Solder |
