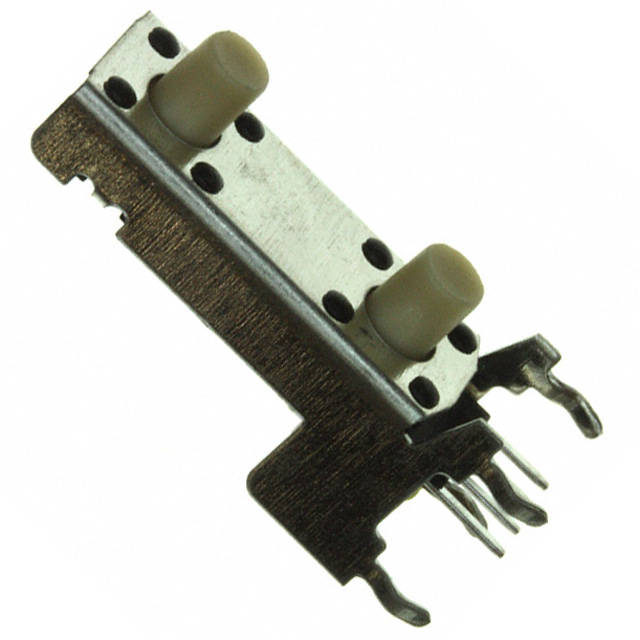

TL53C Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACT SPSTX2 0.05A 12V
| Part | Mechanical Life | Actuator Material | Switch Travel | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Actuator Length, Right Angle | Illumination | Operating Force | Contact Rating @ Voltage | Actuator Type | Termination Style | Actuator Orientation | Outline [y] | Outline [x] | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 100000 Cycles | Acetal | 0.25 mm | Right Angle Through Hole | -20 ░C | 70 °C | Off-Mom | 6.15 mm | Non-Illuminated | 160 gf | 0.05 A 12 VDC | Dual | PC Pin | Side Actuated | 10.5 mm | 8.4 mm | SPST x 2 |
