C14610N015 Series

Catalog

CONN BASE SIDE ENTRY SZA10 M25

Part	Housing Material	Connector Type	Style	Size	Thread Size	Lock Location	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Features

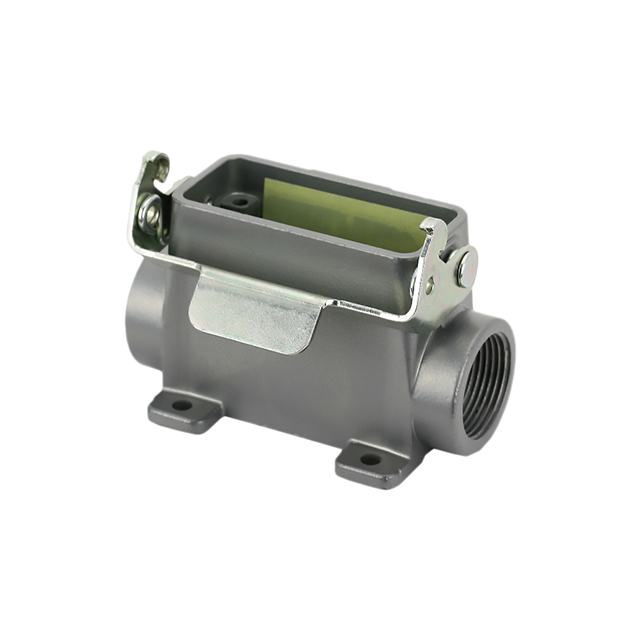

Amphenol Tuchel Industrial C14610N0155002	Aluminum Alloy Die Cast	Base - Box Mount	Side Entry	A10	M25	Locking Clip (1) on Base Bottom	-40 C	100 °C	IP65 - Dust Tight Water Resistant	1.969 in	84 mm	3.307 "	52 mm	2.047 "	50 mm

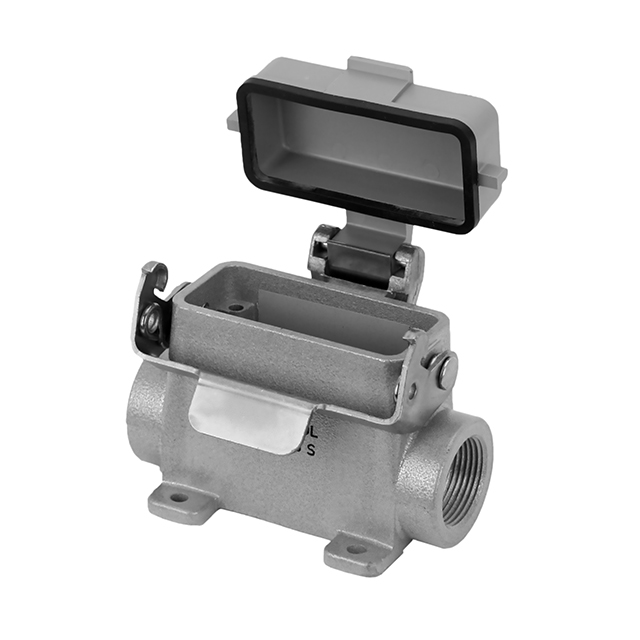

Amphenol Tuchel Industrial C14610N0158062	Aluminum Alloy Die Cast	Base - Box Mount	Side Entry	A10	M25	Locking Clip (1) on Base Bottom	-40 C	100 °C	IP65 - Dust Tight Water Resistant	1.969 in	84 mm	3.307 "	52 mm	2.047 "	50 mm	Cover

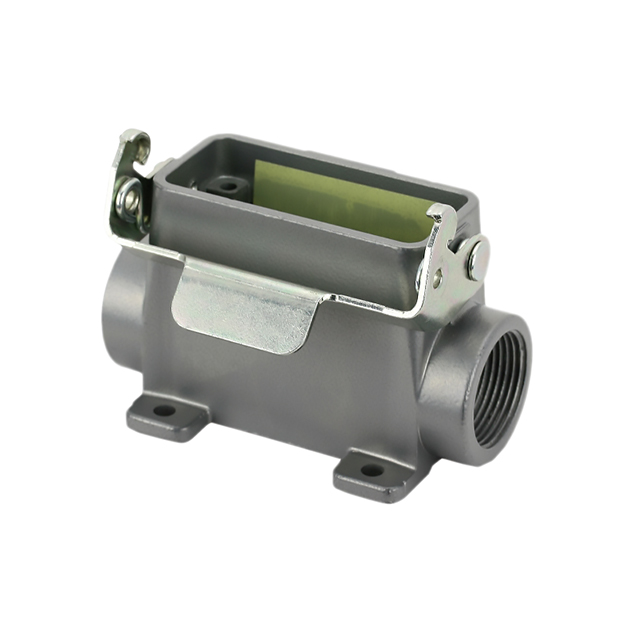

Amphenol Tuchel Industrial C14610N0156012	Aluminum Alloy Die Cast	Base - Box Mount	Side Entry	A10	M20	Locking Clip (1) on Base Bottom	-40 C	100 °C	IP65 - Dust Tight Water Resistant	1.969 in	84 mm	3.307 "	52 mm	2.047 "	50 mm	Feed Through
