VX-55 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

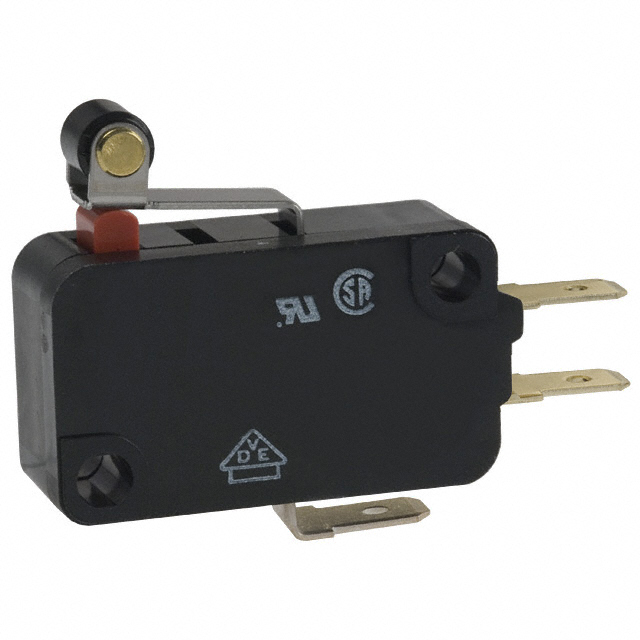

MICROSWITCH, MINIATURE, SHORT HINGE ROLLER LEVER, SPDT, QUICK CONNECT, 5 A
| Part | Operating Force | Pretravel | Pretravel | Differential Travel | Differential Travel | Electrical Life | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - AC | Release Force | Mounting Type | Ingress Protection | Circuit | Operating Position | Operating Position | Overtravel [custom] | Overtravel [custom] | Switch Function | Termination Style | Current Rating (Amps) | Actuator Type | Voltage Rating - DC | Mechanical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 60 gf | 0.063 in | 1.6 mm | 0.5 mm | 0.02 in | 500000 Cycles | -25 °C | 80 °C | 125 V | 4.079 gf | Chassis Mount | IP40 | SPDT | 20.7 mm | 0.815 in | 0.03 " | 0.76 mm | On-Mom | Quick Connect | 5 A | Lever Roller | 30 V | 50000000 Cycles |
