11_716-50 Series
Manufacturer: Huber+Suhner, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
11_716-50-12-60/033_-E
| Part | Connector Style | Shield Termination | Cable Group | Cable Group Size | Housing Color | Mounting Type | Fastening Type | Number of Ports | Contact Termination | Impedance | Connector Type | Center Contact Material | Frequency - Max | Center Contact Plating | Voltage Rating | Dielectric Material | Body Finish | Body Material | Operating Temperature (Min) | Operating Temperature (Max) | Ingress Protection Description | Ingress Protection IP Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

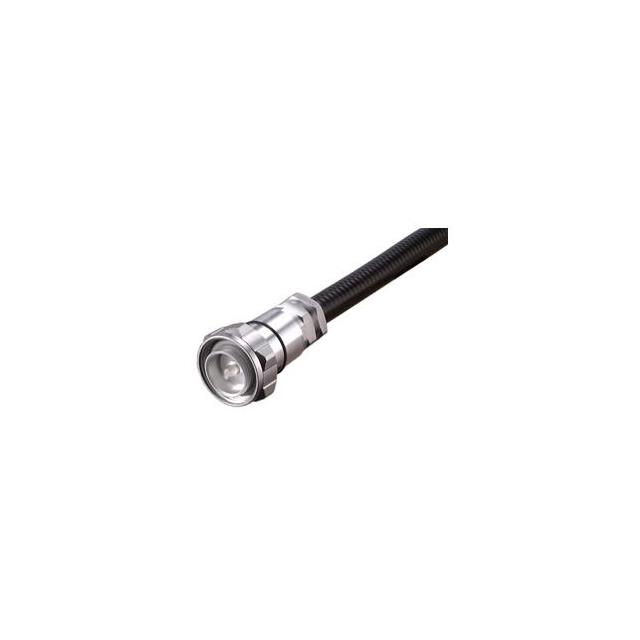

 Huber+Suhner, Inc. | 7/16 DIN | Clamp | Helical | 0.5 in | Silver | Free Hanging (In-Line) | Threaded | 1 | Crimp | 50 Ohm | Male Pin Plug | Bronze | 7.5 GHz | Silver | 2.5 kV | Polytetrafluoroethylene (PTFE) | White Bronze | Brass | -55 °C | 85 °C | ||
 Huber+Suhner, Inc. | 7/16 DIN | Crimp | Silver | Free Hanging (In-Line) | Threaded | 1 | Crimp | 50 Ohm | Male Pin Plug | Bronze | 7.5 GHz | Silver | 2.5 kV | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | Silver | Brass | -65 °C | 165 °C | ||||
 Huber+Suhner, Inc. | 7/16 DIN | Crimp | Silver | Free Hanging (In-Line) | Threaded | 1 | Crimp | 50 Ohm | Male Pin Plug | Beryllium Copper | 6000 MHz | Dust Tight Waterproof | IP67 | |||||||||
 Huber+Suhner, Inc. | 7/16 DIN | Clamp | Helical | 0.5 in | Silver | Free Hanging (In-Line) | Threaded | 1 | Crimp | 50 Ohm | Male Pin Plug | Bronze | 7.5 GHz | Silver | 2.5 kV | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | White Bronze | Brass | -40 °C | 85 °C |
