104075 Series
Manufacturer: Molex
Beta
⌘K

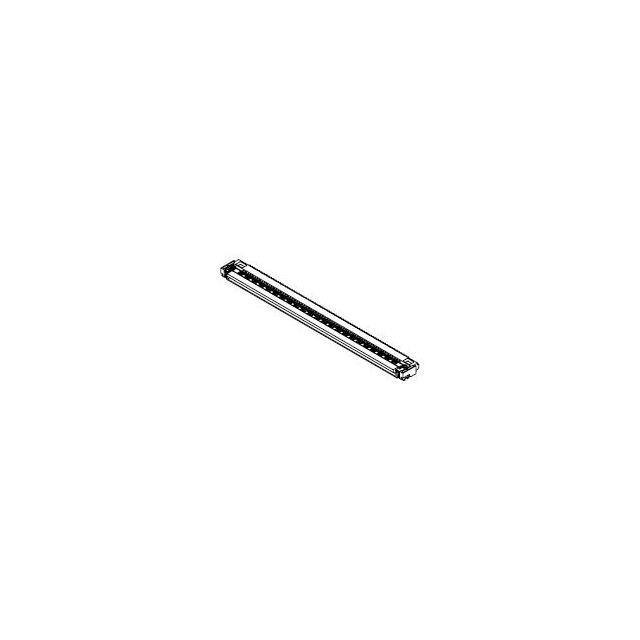

CONN FFC BOTTOM 68POS 0.5MM R/A
| Part | Actuator Color | FFC, FCB Thickness | Current Rating (Amps) | Pitch [x] | Pitch [x] | Termination | Contact Finish | Height Above Board | Height Above Board | Cable End Type | Voltage Rating | Contact Material | Material Flammability Rating | Flat Flex Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Housing Material | Mounting Type | Features | Housing Color | Actuator Material | Locking Feature | Connector/Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Black | 0.3 mm | 500 mA | 0.5 mm | 0.02 in | Solder | Gold | 0.059 in | 1.5 mm | Straight Tapered | 50 V | Phosphor Bronze | UL94 V-0 | FFC FPC | 85 °C | -20 C | 68 | Liquid Crystal Polymer (LCP) Glass Filled | Surface Mount Right Angle | Solder Retention Zero Insertion Force (ZIF) | Natural | Polybutylene Terephthalate (PBT) Glass Filled | Flip Lock | Contacts Bottom |
