1411325 Series

Catalog

2X3 POS GET-FEMALE CONNECTOR U

Part	Insulation Material	Fastening Type	Number of Positions	Contact Termination	Number of Rows [custom]	Mounting Type	Row Spacing	Row Spacing	Pitch	Pitch	Features	Operating Temperature [Max]	Operating Temperature [Min]	Color	Connector Type	Contact Type	Note
TE Connectivity AMP Connectors 9-1411325-5	Glass Filled Nylon Polyamide (PA)	Push-Pull	6	Crimp	2	Surface Mount	2.54 mm	0.1 "	0.1 "	2.54 mm	Terminal Position Lock (TPA)	125 °C	-40 C	Black	Housing for Female Insert	Female Socket
TE Connectivity AMP Connectors 9-1411325-1	Glass Filled Nylon 6/6 Polyamide (PA66)		6	Crimp	2	Free Hanging (In-Line)	2.54 mm	0.1 "	0.1 "	2.54 mm		100 °C	-40 C	Black	Receptacle	Female Socket	Contacts Not Included

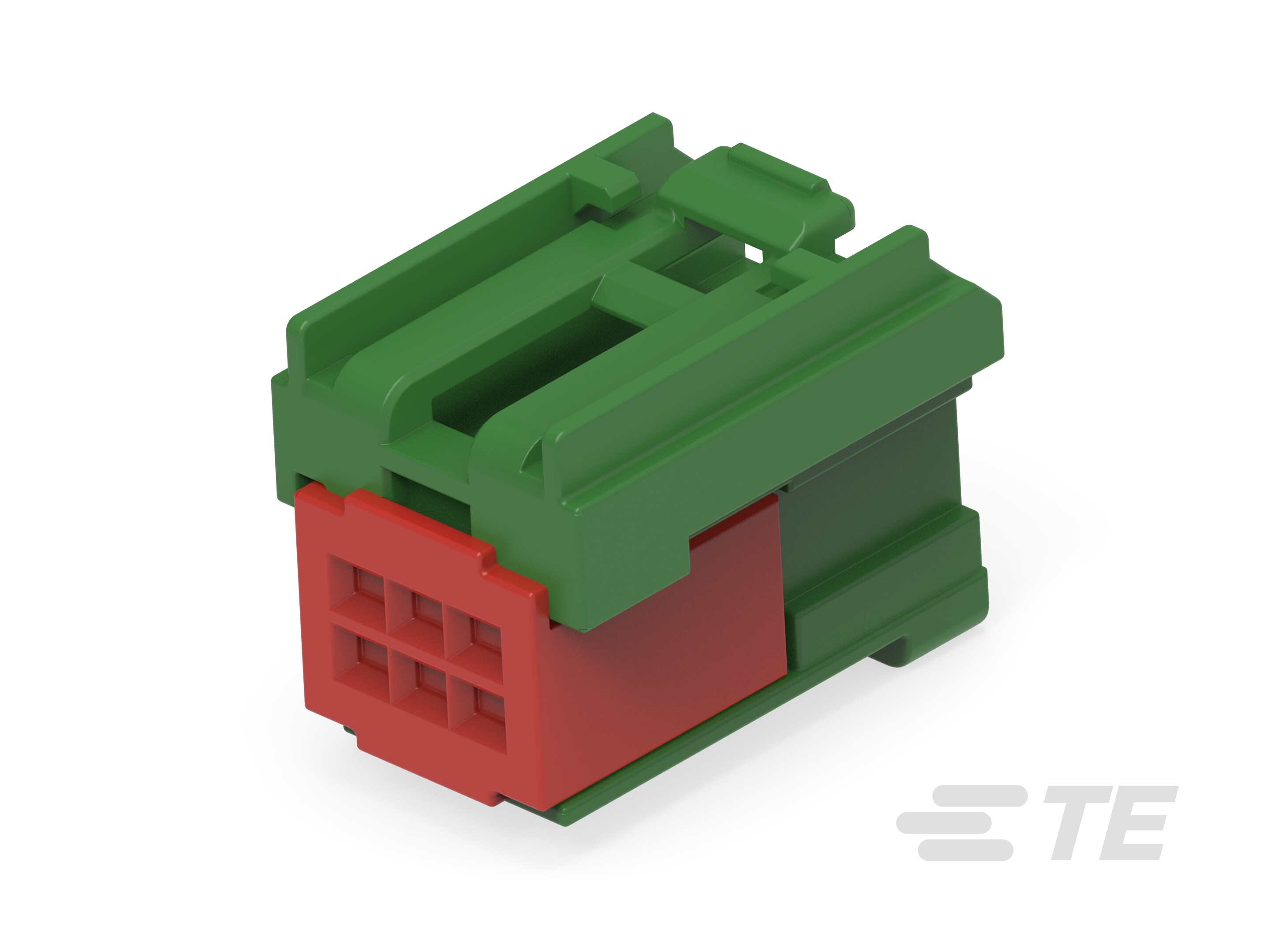

TE Connectivity AMP Connectors 1-1411325-1	Polybutylene Terephthalate (PBT) Glass Filled		6	Crimp	2	Free Hanging (In-Line)	2.54 mm	0.1 "	0.1 "	2.54 mm				Green	Receptacle	Female Socket	Contacts Not Included

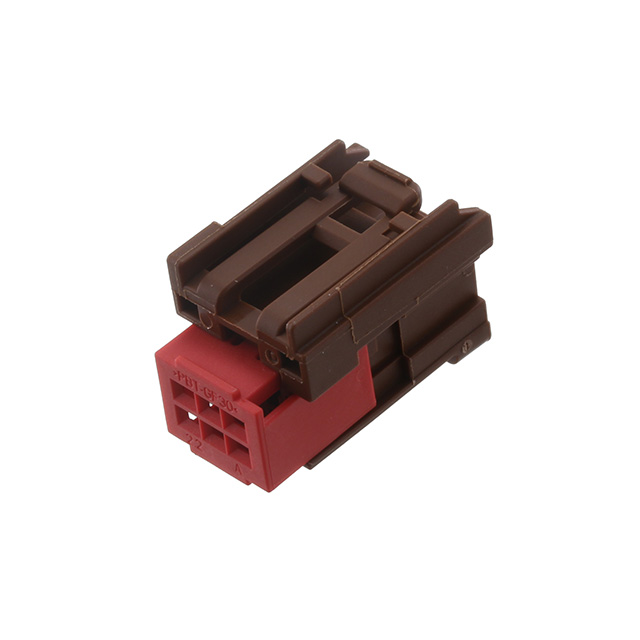

TE Connectivity AMP Connectors 1-1411325-3	Polybutylene Terephthalate (PBT) Glass Filled		6	Crimp	2	Free Hanging (In-Line)	2.54 mm	0.1 "	0.1 "	2.54 mm				Brown	Receptacle	Female Socket	Contacts Not Included
TE Connectivity AMP Connectors 1-1411325-4	Polybutylene Terephthalate (PBT) Glass Filled		6	Crimp	2	Free Hanging (In-Line)	2.54 mm	0.1 "	0.1 "	2.54 mm				Blue	Receptacle	Female Socket	Contacts Not Included
