76345 Series

Catalog

CONN HEADER R/A 40POS 2.54MM

Part	Insulation Material	Mounting Type	Contact Finish - Post	Contact Shape	Contact Length - Mating [x]	Contact Length - Mating	Contact Type	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Number of Positions	Connector Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Rows	Material Flammability Rating	Termination	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Mating	Contact Length - Mating	Contact Length - Mating [x]
Amphenol ICC (FCI) 76345-306-40LF	Thermoplastic	Through Hole Right Angle	Tin	Square	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	40	Header	All	78.7 µin	2 µm	Push-Pull	2	UL94 V-0	Solder	0.111 in	2.82 mm	0.1 in	2.54 mm	Black
Amphenol ICC (FCI) 76345-105-08LF	Thermoplastic	Through Hole Right Angle		Square		7.15 mm	Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	8	Header	All	30 Áin	0.76 Ám	Push-Pull	2	UL94 V-0	Solder			0.1 in	2.54 mm	Black	0.12 in	3.05 mm	Gold GXT™	0.281 in
Amphenol ICC (FCI) 76345-306-04LF	Thermoplastic	Through Hole Right Angle	Tin	Square	0.23 in	5.84 mm	Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	4	Header	All	78.7 µin	2 µm	Push-Pull	2	UL94 V-0	Solder	0.111 in	2.82 mm	0.1 in	2.54 mm	Black

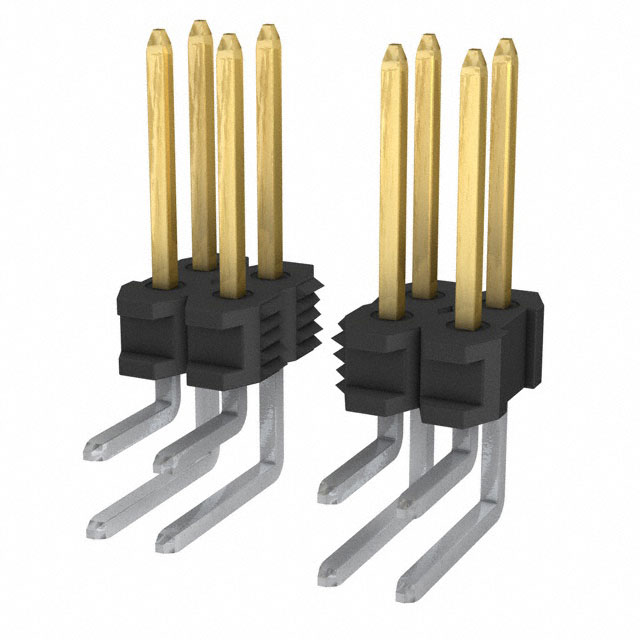

Amphenol ICC (FCI) 76345-103-12LF	Thermoplastic	Through Hole Right Angle		Square	0.318 "		Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	12	Header	All	30 Áin	0.76 Ám	Push-Pull	2	UL94 V-0	Solder	0.115 in	2.92 mm	0.1 in	2.54 mm	Black			Gold GXT™		8.08 mm

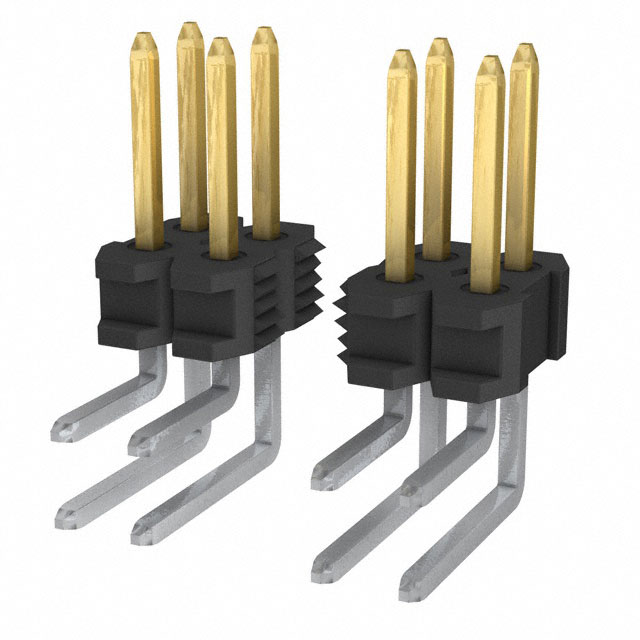

Amphenol ICC (FCI) 76345-504-44LF	Thermoplastic	Through Hole Right Angle		Square	0.24 in	6.1 mm	Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	44	Header	All	15 µin	0.38 µm	Push-Pull	2	UL94 V-0	Solder		3.2 mm	0.1 in	2.54 mm	Black	0.126 in		Gold
Amphenol ICC (FCI) 76345-103-40LF	Thermoplastic	Through Hole Right Angle		Square	0.318 "		Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	40	Header	All	30 Áin	0.76 Ám	Push-Pull	2	UL94 V-0	Solder	0.115 in	2.92 mm	0.1 in	2.54 mm	Black			Gold GXT™		8.08 mm
Amphenol ICC (FCI) 76345-804-12	Thermoplastic	Through Hole Right Angle		Square	0.24 in	6.1 mm	Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	12	Header	All	15 µin	0.38 µm	Push-Pull	2	UL94 V-0	Solder		3.2 mm	0.1 in	2.54 mm	Black	0.126 in		Gold GXT™
Amphenol ICC (FCI) 76345-103-72	Thermoplastic	Through Hole Right Angle		Square	0.318 "		Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	72	Header	All	30 Áin	0.76 Ám	Push-Pull	2	UL94 V-0	Solder	0.115 in	2.92 mm	0.1 in	2.54 mm	Black			Gold GXT™		8.08 mm
Amphenol ICC (FCI) 76345-103-72LF	Thermoplastic	Through Hole Right Angle		Square	0.318 "		Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	72	Header	All	30 Áin	0.76 Ám	Push-Pull	2	UL94 V-0	Solder	0.115 in	2.92 mm	0.1 in	2.54 mm	Black			Gold GXT™		8.08 mm

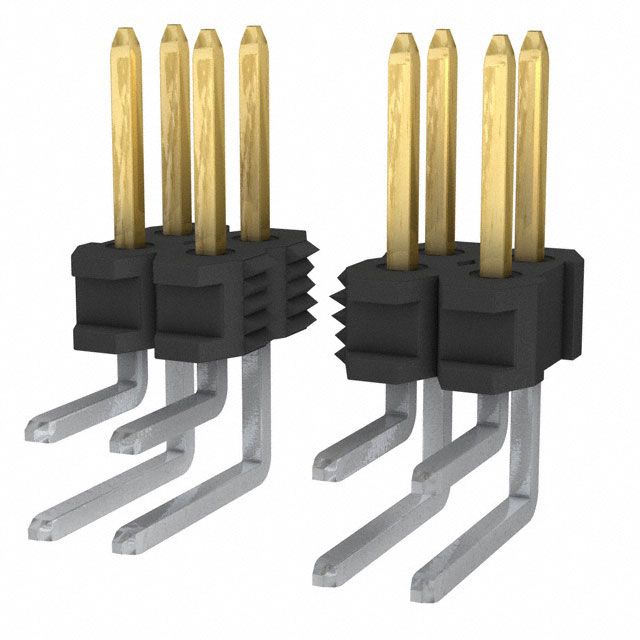

Amphenol ICC (FCI) 76345-101-10	Thermoplastic	Through Hole Right Angle		Square		5.72 mm	Male Pin	Phosphor Bronze	2.54 mm	0.1 in	Unshrouded	10	Header	All	30 Áin	0.76 Ám	Push-Pull	2	UL94 V-0	Solder			0.1 in	2.54 mm	Black	0.12 in	3.05 mm	Gold GXT™	0.225 in
