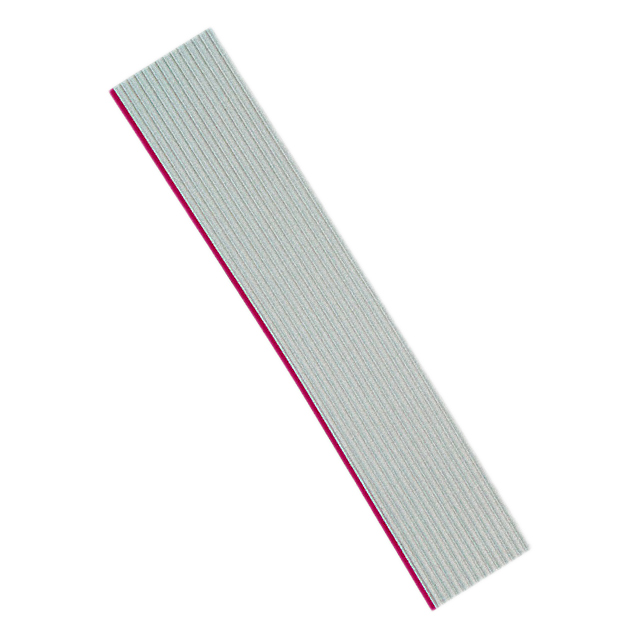

9L28010 Series
Manufacturer: Belden Inc.
Beta
⌘K

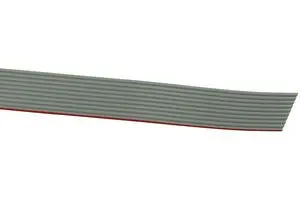

RIBBON CABLE, FLAT, UNSHIELDED, 10 CONDUCTOR, 28 AWG, 100 FT, 30.48 M
| Part | Insulation Resistance | Conductor Material | First Conductor Mark | Current Rating (Amps) | Wire Gauge | Pitch | Pitch | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Number of Conductors [custom] | Length | Length | Ribbon Thickness | Ribbon Thickness | Voltage | Jacket (Insulation) Material | Cable Type | Shielding | Ribbon Width [custom] | Ribbon Width [custom] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 10 GOhm | Copper | Red | 1 A | 28 AWG | 0.05 in | 1.27 mm | 36 AWG | 7 Strands | Gray | 10 | 100 ' | 30.48 m | 0.89 mm | 0.035 in | 300 VDC | Poly-Vinyl Chloride (PVC) | Flat Cable | Unshielded | 12.7 mm | 0.5 in | -40 C | 105 ░C |
