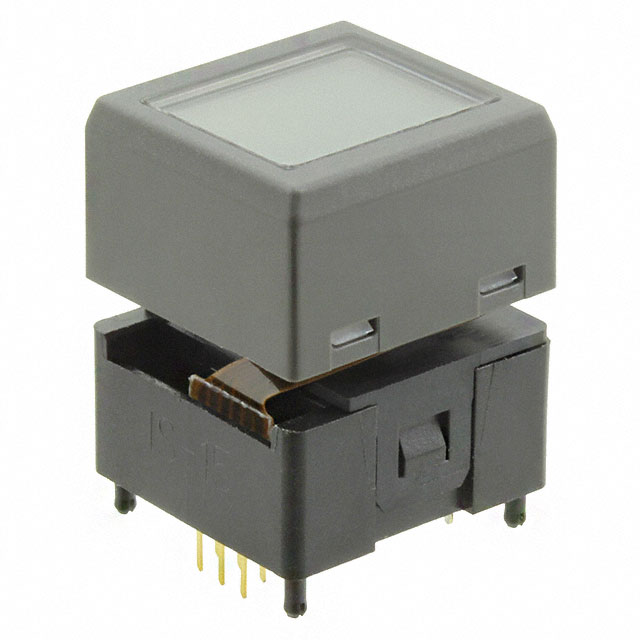

IS15ESBF Series
Manufacturer: NKK Switches
Beta
⌘K
PROGRAMMABLE DISPLAY SWITCH, FRAMELESS, IS SERIES, SPDT, THROUGH HOLE, 100 MA, 12 V, LCD
| Part | Travel Range [Max] | Operating Force | Style | LED Forward Voltage | Contact Rating @ Voltage | Pixel Format [y] | Pixel Format [x] | Display Mode | Viewing Area [x] | Viewing Area [y] | Type | Circuit | Mounting Type | Supply Voltage [Max] | Supply Voltage [Min] | Switch Function | Operating Temperature [Max] | Operating Temperature [Min] | Face Size [x] | Face Size [y] | LED Color | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 1.8 mm | 173 gf | Compact High Resolution | 2 2.8 VDC 2.8 | 0.1 A 12 VDC | 32 | 64 | Black and White FSTN Positive | 14.5 mm | 11.8 mm | LCD Pushbutton | SPST-NO | Through Hole | 5.1 VDC | 4.9 VDC | Off-Mom | 50 °C | -15 °C | 19 mm | 18 mm | Blue Green Red | PC Pin |
