HFW10S Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

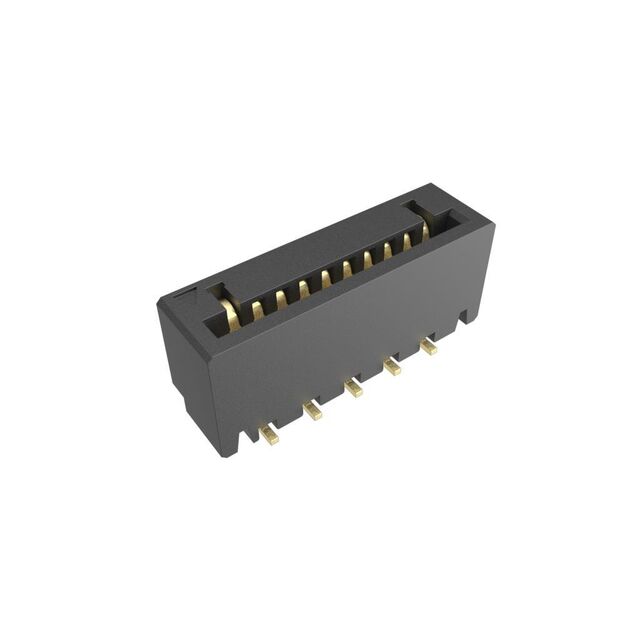

CONN FFC FPC VERT 10POS 1MM SMD
| Part | Contact Finish Thickness | Housing Color | FFC, FCB Thickness | Housing Material | Number of Positions | Contact Finish | Mounting Type | Cable End Type | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] | Material Flammability Rating | Contact Material | Connector/Contact Type | Termination | Flat Flex Type | Mating Cycles | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Flash | Black | 0.3 mm | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | 10 | Gold | Surface Mount | Straight Tapered | 1 mm | 0.039 in | 0.209 in | 5.3 mm | UL94 V-0 | Phosphor Bronze | Contacts Vertical - 1 Sided | Solder | FFC FPC | ||||
 Amphenol ICC (FCI) | Black | 0.3 mm | Glass Filled Nylon 6T Polyamide (PA6T) | 10 | Gold | Surface Mount | Tapered | 1 mm | 0.039 in | 0.209 in | 5.3 mm | UL94 V-0 | Phosphor Bronze | Contacts Vertical - 1 Sided | Solder | FPC | 30 | -55 C | 85 °C | 100 V |
