OSTTJ02 Series

Catalog

TERM BLOCK PLUG 2POS STR 3.81MM

Part	Housing Material	Contact Material	Wire Strip Length [Max]	Wire Strip Length [Min]	Wire Gauge or Range - mm˛	Torque - Screw	Torque - Screw	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch	Pitch	Termination Style	Number of Levels	Number of Positions	Wire Gauge or Range - mm²	Color	Operating Temperature [Max]	Operating Temperature [Min]	Type	Positions Per Level	Mounting Type	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Material Flammability Rating	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Voltage - IEC	Contact Mating Finish

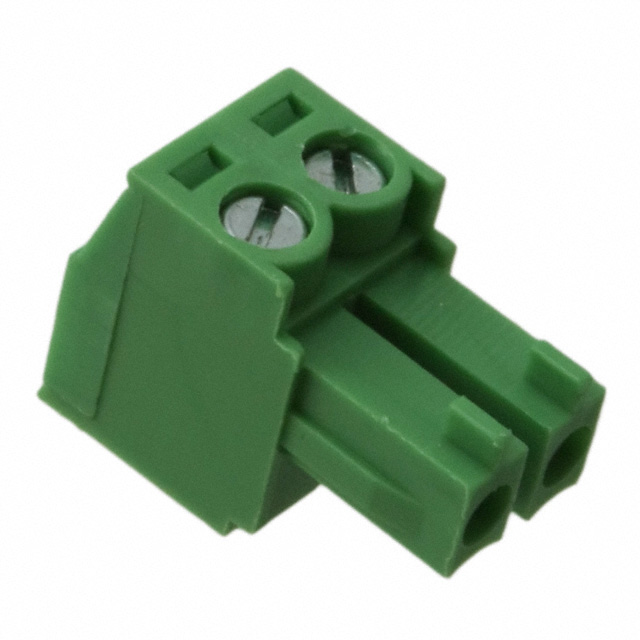

On Shore Technology Inc. OSTTJ0231530	Brass	Brass	7 mm	6 mm	1.5 mm˛	0.28 Nm	2.5 Lb-In	300 V	16 AWG	26 AWG	3.81 mm	0.15 in	Screw	1	2	1.5 mm²	Green	115 °C	-40 C	Plug Female Sockets	2	Free Hanging (In-Line)
On Shore Technology Inc. OSTTJ025103	Brass	Brass	8 mm	7 mm		0.56 Nm	5 Lb-In	300 V	12 AWG	24 AWG	5.08 mm	0.2 in	Screw	1	2		Black	105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)	0.34 mm˛	2.5 mm˛	UL94 V-0	0.34 mm²	2.5 mm²	300 V	Tin
On Shore Technology Inc. OSTTJ0211520	Brass	Brass	7 mm	6 mm		0.28 Nm	2.5 Lb-In	300 V	16 AWG	26 AWG	3.5 mm	0.138 "	Screw	1	2			105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)			UL94 V-0

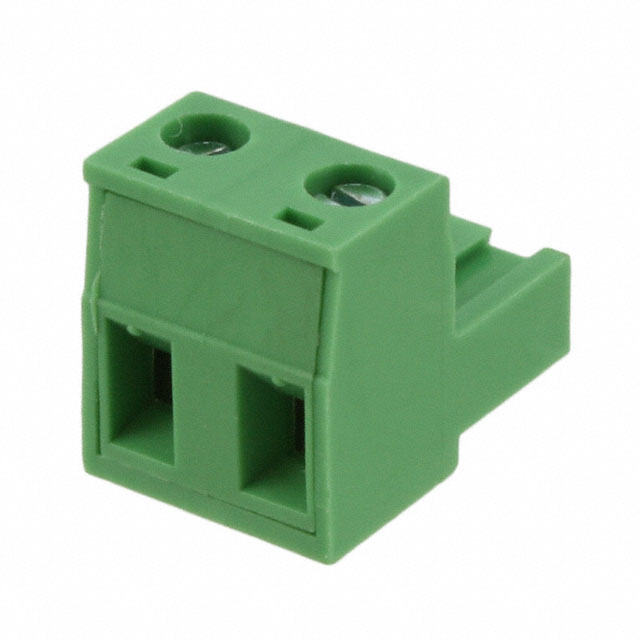

On Shore Technology Inc. OSTTJ020150	Brass	Brass	8 mm	7 mm		0.56 Nm	5 Lb-In	300 V	12 AWG	24 AWG	7.62 mm	0.3 in	Screw	1	2			105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)			UL94 V-0

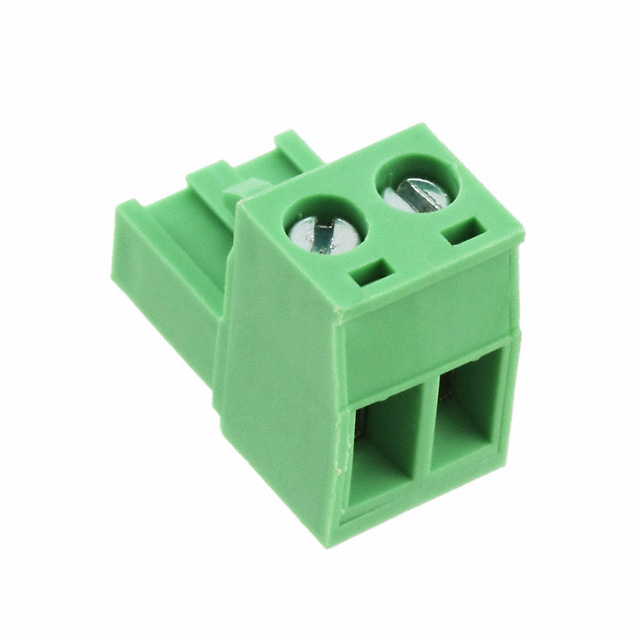

On Shore Technology Inc. OSTTJ025153	Brass	Brass	8 mm	7 mm		0.56 Nm	5 Lb-In	300 V	12 AWG	24 AWG	5.08 mm	0.2 in	Screw	1	2		Green	105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)	0.34 mm˛	2.5 mm˛	UL94 V-0	0.34 mm²	2.5 mm²	300 V	Tin
On Shore Technology Inc. OSTTJ020152	Brass	Brass	8 mm	7 mm		0.56 Nm	5 Lb-In	300 V	12 AWG	24 AWG	7.62 mm	0.3 in	Screw	1	2			105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)			UL94 V-0
On Shore Technology Inc. OSTTJ027152	Brass	Brass	8 mm	7 mm		0.56 Nm	5 Lb-In	300 V	12 AWG	24 AWG	5 mm	0.197 in	Screw	1	2		Green	105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)	0.34 mm˛	2.5 mm˛	UL94 V-0	0.34 mm²	2.5 mm²

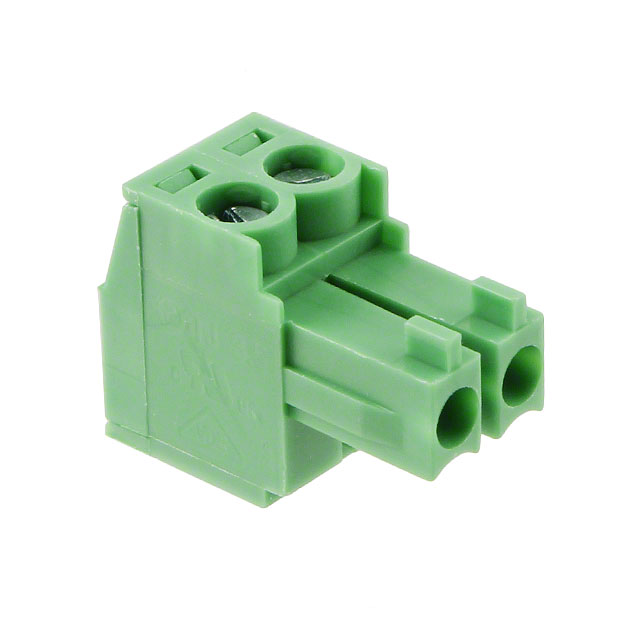

On Shore Technology Inc. OSTTJ0211530	Brass	Brass	7 mm	6 mm		0.28 Nm	2.5 Lb-In	300 V	16 AWG	26 AWG	3.5 mm	0.138 "	Screw	1	2			105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)

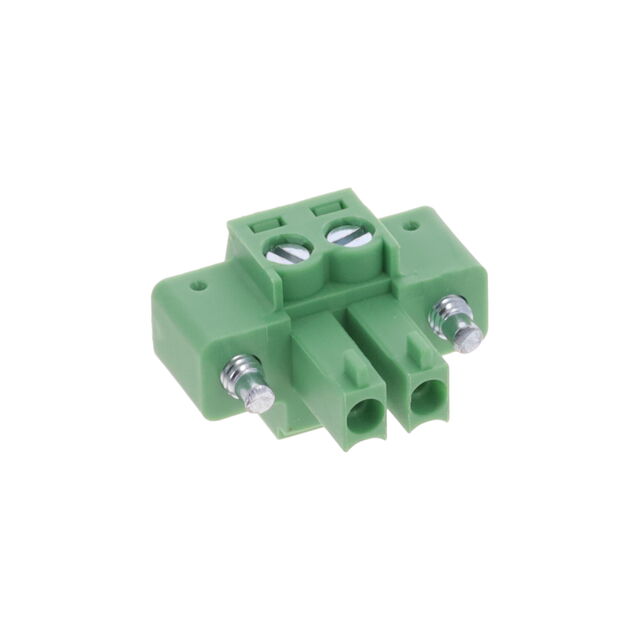

On Shore Technology Inc. OSTTJ0231520	Brass	Brass	7 mm	6 mm	1.5 mm˛	0.28 Nm	2.5 Lb-In	300 V	16 AWG	26 AWG	3.81 mm	0.15 in	Screw	1	2	1.5 mm²	Green	105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)			UL94 V-0

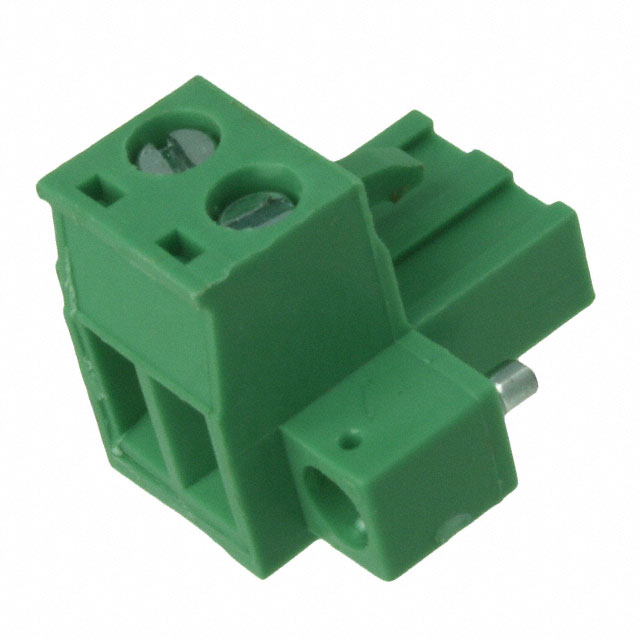

On Shore Technology Inc. OSTTJ025152	Brass	Brass	8 mm	7 mm		0.56 Nm	5 Lb-In	300 V	12 AWG	24 AWG	5.08 mm	0.2 in	Screw	1	2		Green	105 ░C	-30 ░C	Plug Female Sockets	2	Free Hanging (In-Line)	0.34 mm˛	2.5 mm˛	UL94 V-0	0.34 mm²	2.5 mm²
