DPF18 Series

Catalog

CONN QC RCPT 18-22AWG 0.110

Part	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Terminal Type	Length - Overall [x]	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Gender	Color	Contact Material	Termination	Tab Width	Tab Width	Features	Contact Finish	Tab Thickness	Tab Thickness	Insulation	Mounting Type	Insulation Diameter [Min]	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Tab Width [x]	Tab Width [x]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]
Panduit Corp DPF18-110FIB-C	0.08 in	2.03 mm	3.35 mm	0.132 in	Standard	0.71 in	18.03 mm	22 AWG	17.5 AWG	Female	Red	Brass	Crimp	0.11 "	2.79 mm	Butted Seam	Tin	0.81 mm	0.032 in	Fully Insulated	Free Hanging (In-Line)

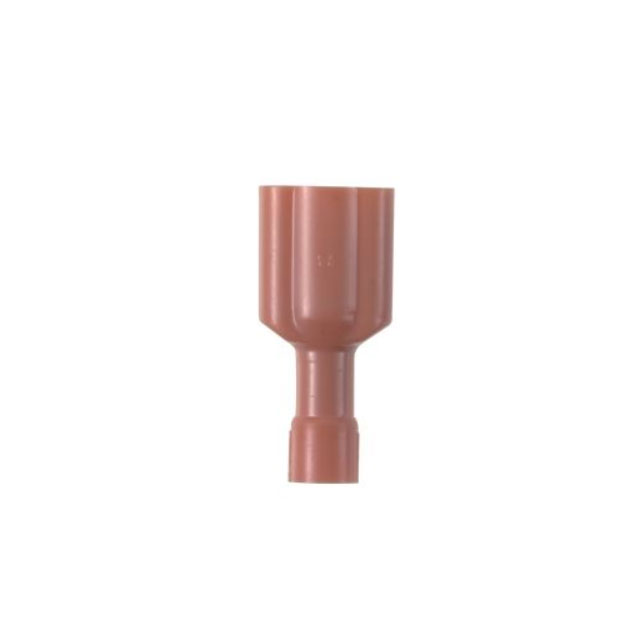

Panduit Corp DPF18-250FIM-L					Standard	0.9 "	22.86 mm	22 AWG	17.5 AWG	Male	Red	Brass	Crimp				Nickel	0.81 mm	0.032 in	Fully Insulated	Free Hanging (In-Line)	0.06 in	1.52 mm	3.38 mm	0.133 in	6.35 mm	0.25 in

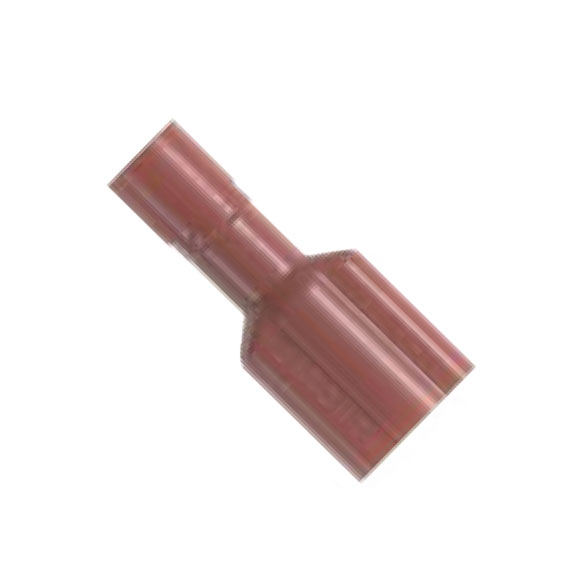

Panduit Corp DPF18-250FIB-3K		0.06 "	0.136 "		Standard	0.84 in	21.34 mm	22 AWG	17.5 AWG	Female	Red	Brass	Crimp			Butted Seam	Tin	0.81 mm	0.032 in	Fully Insulated	Free Hanging (In-Line)					6.35 mm	0.25 in	1.52 mm	3.45 mm
Panduit Corp DPF18-187FIB-3K		0.06 "	0.136 "		Standard	0.78 in	19.81 mm	22 AWG	17.5 AWG	Female	Red	Brass	Crimp				Tin	0.81 mm	0.032 in	Fully Insulated	Free Hanging (In-Line)					4.75 mm	0.187 in	1.52 mm	3.45 mm
Panduit Corp DPF18-250FIB-C					Standard	0.84 in	21.34 mm	22 AWG	17.5 AWG	Female	Red	Brass	Crimp				Tin	0.81 mm	0.032 in	Fully Insulated	Free Hanging (In-Line)	0.08 "	2.03 mm	3.38 mm	0.133 in	6.35 mm	0.25 in

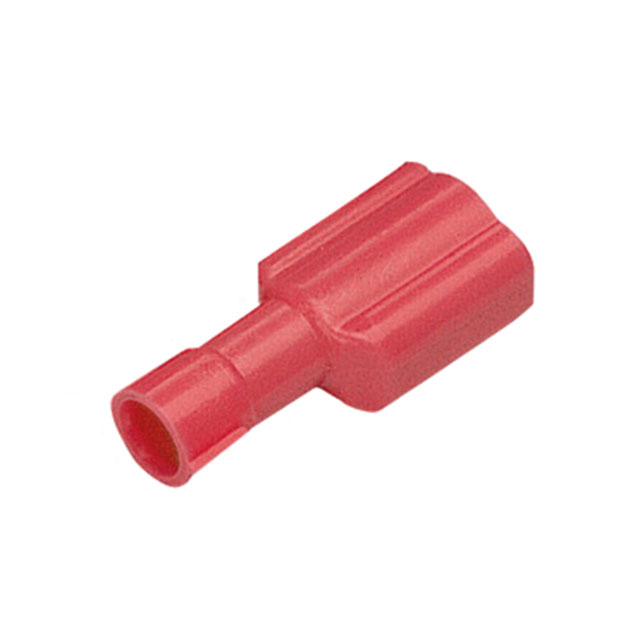

Panduit Corp DPF18-250FIMB-K					Standard	0.92 in	23.37 mm	22 AWG	17.5 AWG	Male	Red	Brass	Crimp			Butted Seam	Nickel	0.81 mm	0.032 in	Fully Insulated	Free Hanging (In-Line)	0.06 in	1.52 mm	3.38 mm	0.133 in	6.35 mm	0.25 in
Panduit Corp DPF18-250FIM-M					Standard	0.9 "	22.86 mm	22 AWG	17.5 AWG	Male	Red	Brass	Crimp				Nickel	0.81 mm	0.032 in	Fully Insulated	Free Hanging (In-Line)	0.06 in	1.52 mm	3.38 mm	0.133 in	6.35 mm	0.25 in

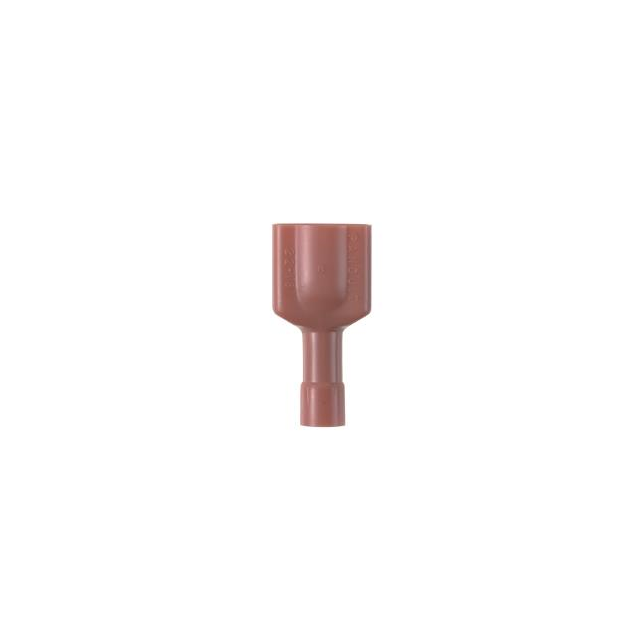

Panduit Corp DPF18-250FIMB-D					Standard	0.92 in	23.37 mm	22 AWG	17.5 AWG	Male	Red	Brass	Crimp			Butted Seam	Nickel	0.81 mm	0.032 in	Fully Insulated	Free Hanging (In-Line)	0.08 "	2.03 mm	3.38 mm	0.133 in	6.35 mm	0.25 in
