LTILA71 Series
Manufacturer: Carling Technologies
Beta
⌘K

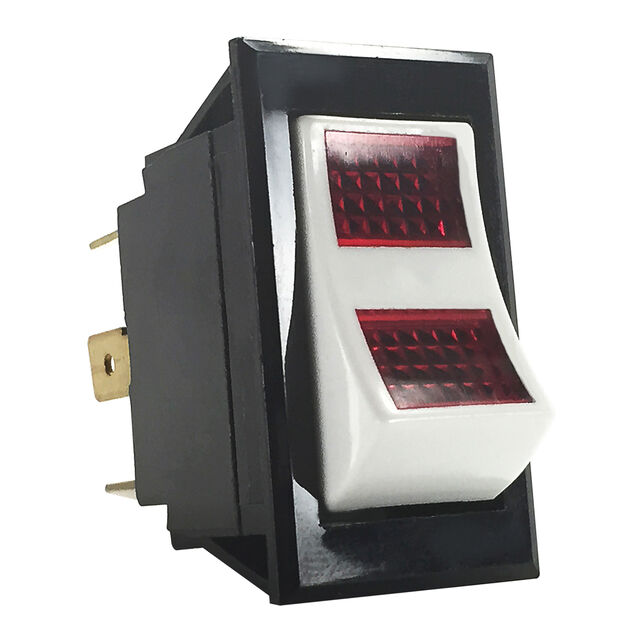

SWITCH ROCKER SPST 17A 125V
| Part | Mechanical Life | Electrical Life | Actuator Marking | Mounting Type | Illumination Voltage (Nominal) | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Switch Function | Actuator Type | Circuit | Color - Actuator/Cap | Illumination Type, Color | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Approval Agency | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carling Technologies | 50000 Cycles | 50000 Cycles | No Marking | Panel Mount Snap-In | 125 VAC | 17 A | 85 °C | -40 C | On-Off | Concave (Curved) - Illuminated | SPST | White | Neon Red | 36.83 mm | 21.08 mm | Quick Connect - 0.250" (6.3mm) | CSA UL VDE | 125 V |
 Carling Technologies | 50000 Cycles | 50000 Cycles | No Marking | Panel Mount Snap-In | 125 VAC | 17 A | On-Off | Concave (Curved) - Illuminated | SPST | Black | Neon Red | 36.83 mm | 21.08 mm | Quick Connect - 0.250" (6.3mm) | CSA UL VDE | 125 V |
