FI4D144 Series
Manufacturer: Belden Inc.
Beta
⌘K

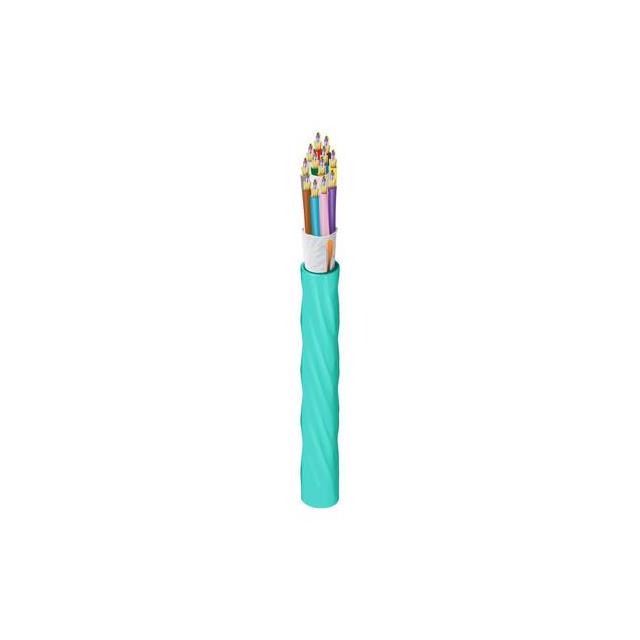

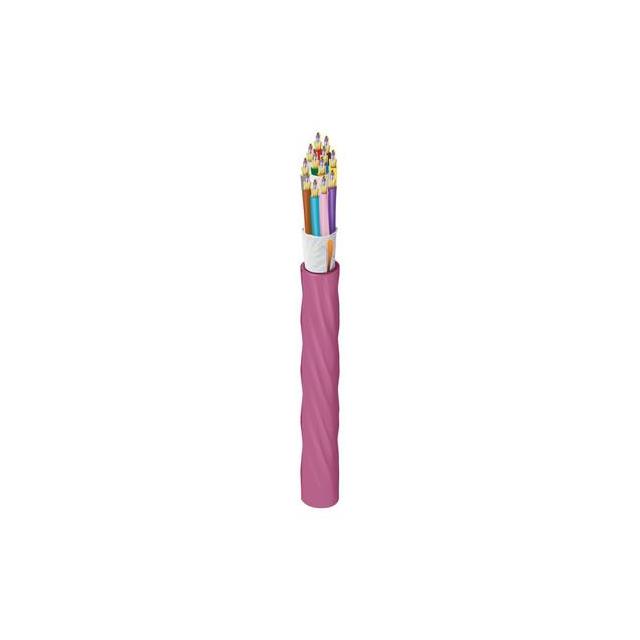

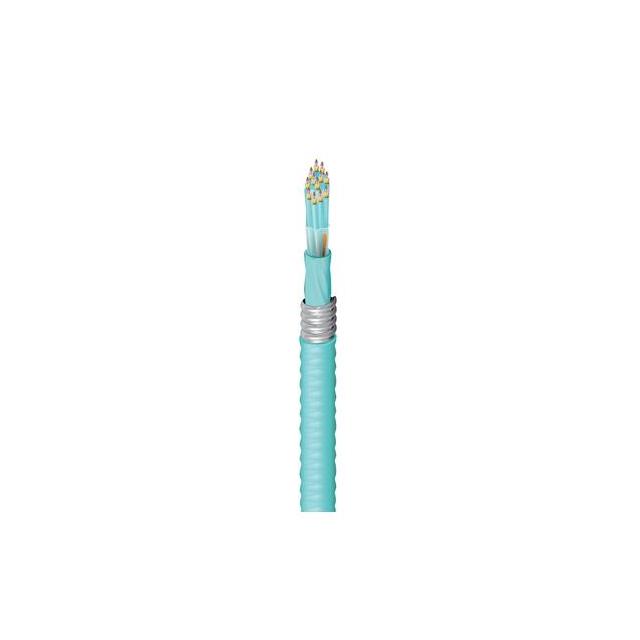

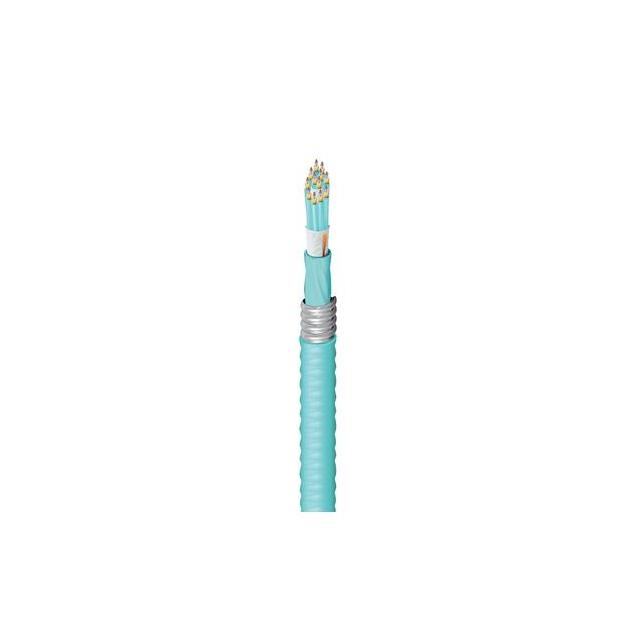

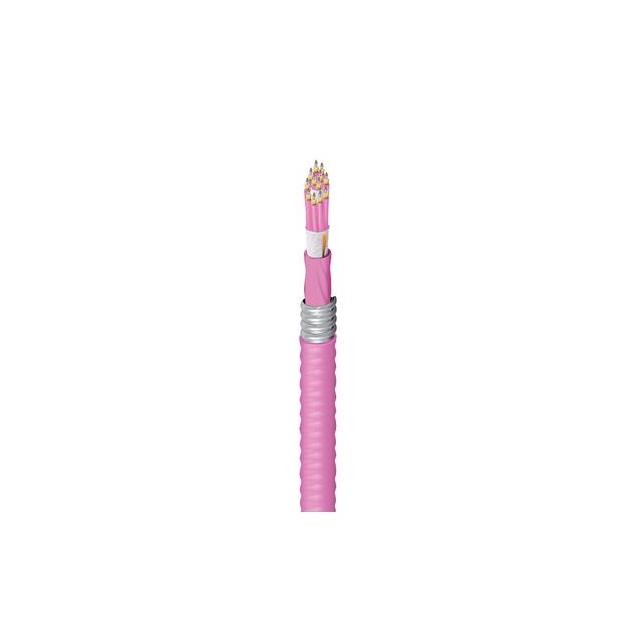

CBL FIBER OPTIC 125UM MULTIMODE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Ratings | Tensile Strength | Jacket Color | Features | Features | Style | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Type | Cladding Diameter [diameter] | Core Diameter [diameter] | Jacket (Insulation) Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 70 °C | 0 °C | OFCP | 40.8 kg | Aqua | Armored | 144 Fibers | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 36.2 mm | 1.425 in | Multimode | 125 µm | 50 µm | |
 Belden Inc. | 70 °C | 0 °C | OFCP | 40.8 kg | Violet | Armored | 144 Fibers | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 36.2 mm | 1.425 in | Multimode | 125 µm | 50 µm | |
 Belden Inc. | |||||||||||||||
 Belden Inc. | 70 °C | -20 ░C | OFCR | 40.8 kg | Aqua | Armored | 144 Fibers | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 37.85 mm | 1.49 " | Multimode | 125 µm | 50 µm | |
 Belden Inc. | 70 °C | -20 ░C | OFNR | 40.8 kg | Violet | 144 Fibers Rip Cord | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 27.33 mm | Multimode | 125 µm | 50 µm | 1.076 in | ||
Belden Inc. | |||||||||||||||
 Belden Inc. | 70 °C | 0 °C | OFNP | 40.8 kg | Aqua | 144 Fibers Rip Cord | Multiple Fibers | Poly-Vinyl Chloride (PVC) | 26.21 mm | 1.032 in | Multimode | 125 µm | 50 µm |
