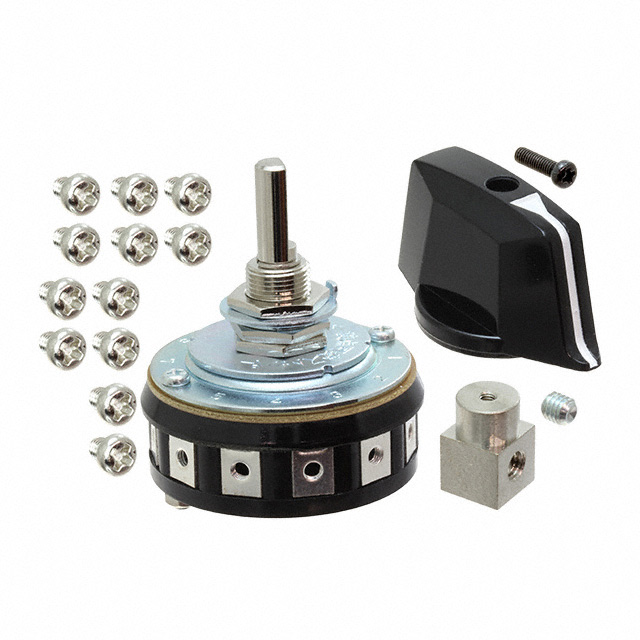

TS1N Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROTARY 2-11POS 6A 125V
| Part | Panel Cutout Dimensions [diameter] | Angle of Throw | Contact Material | Depth Behind Panel [custom] | Circuit per Deck | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Actuator Type | Actuator Length [x] | Number of Decks [custom] | Index Stops | Termination Style | Number of Poles per Deck | Mounting Type | Number of Positions [Max] | Number of Positions [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10.3 mm | 30 ° | Phosphor Bronze | 22 mm | SP11T | Non-Shorting (BBM) | 6 A | 125 V | Knob | 15.6 mm | 1 | Adjustable | Screw Terminal | 1 | Panel Mount | 11 | 2 |
