RSA-3252 Series
Manufacturer: RF Industries
Beta
⌘K

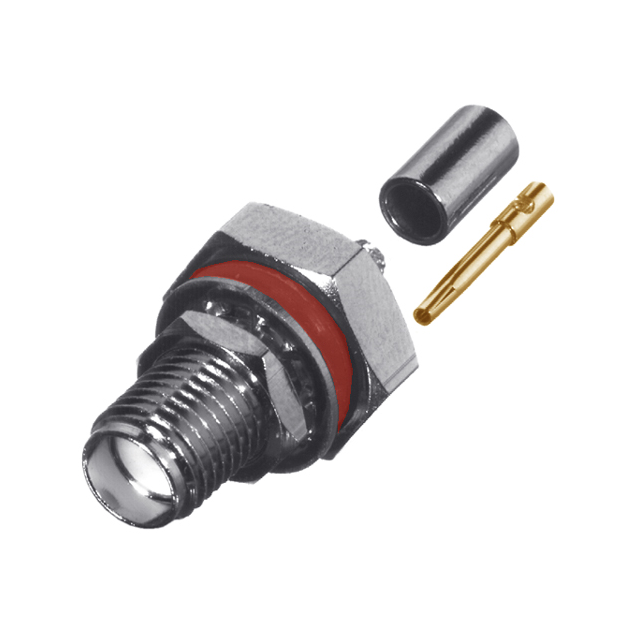

SMA FEMALE BH CRIMP; 50 OHMS
| Part | Dielectric Material | Body Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Shield Termination | Cable Group | Connector Type | Contact Termination | Frequency - Max [Max] | Center Contact Material | Connector Style | Fastening Type | Mounting Type | Number of Ports | Housing Color | Mounting Feature | Impedance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Polytetrafluoroethylene (PTFE) | Brass | 375 V | -65 ░C | 85 °C | Nickel | Gold | Crimp | 188 188A 316 RG-174 | Female Socket Jack | Solder | 12.4 GHz | Beryllium Copper | SMA | Threaded | Panel Mount | 1 | Silver | Bulkhead - Front Side Nut | 50 Ohms |
 RF Industries | Polytetrafluoroethylene (PTFE) | Brass | 500 V | -65 ░C | 165 °C | Nickel | Gold | Crimp | 178A 178B 196 196A RG-178 | Female Socket Jack | Solder | 12.4 GHz | Beryllium Copper | SMA | Threaded | Panel Mount | 1 | Silver | Bulkhead - Front Side Nut | 50 Ohms |
 RF Industries | Polytetrafluoroethylene (PTFE) | Nickel | Gold | Crimp | 122 82907 88240 89907 9158S Alpha 9859 Belden 82240 RG-58 Plenum | Female Socket Jack | Crimp | SMA | Threaded | Panel Mount | 1 | Silver | Bulkhead - Front Side Nut | 50 Ohms |
