AFB0724 Series

Catalog

FAN AXIAL 70X25.4MM 24VDC WIRE

Part	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Material - Blade	Current Rating (Amps)	Lifetime @ Temp.	Bearing Type	Weight	Weight	Air Flow	Air Flow	Power (Watts)	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Static Pressure	Static Pressure	Voltage - Rated	Fan Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Noise	Features	Approval Agency	Weight [custom]	Weight [custom]	RPM

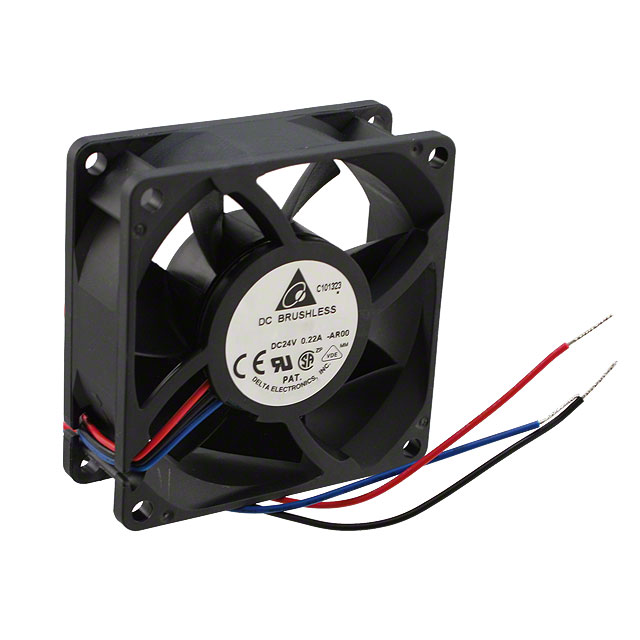

Delta Electronics AFB0724HH-AR00	14 VDC	26.4 VDC	Plastic	Plastic	0.18 A	70000 Hrs	Ball	0.199 lb	90.26 g	44 CFM	1.23 m³/min	4.32 W	70 mm	70 mm	25.4 mm	77.5 Pa	0.311 in H2O	24 VDC	Tubeaxial	3 Wire Leads	70 °C	-10 °C	44 dB(A)	Locked Rotor Sensor	CE CSA UL VDE

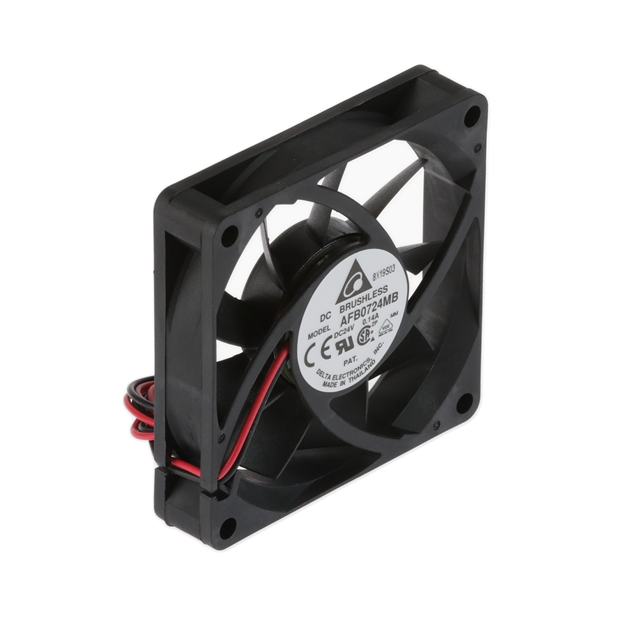

Delta Electronics AFB0724MB	14	27.6 VDC	Plastic	Plastic	0.09 A		Ball			28.2 CFM	0.79 mł/min	2.16 W	70 mm	70 mm	15 mm	30.6 Pa	0.123 in H2O	24 VDC	Tubeaxial	2 Wire Leads			31 dB(A)			47.17 g	0.104 lb	3300 RPM

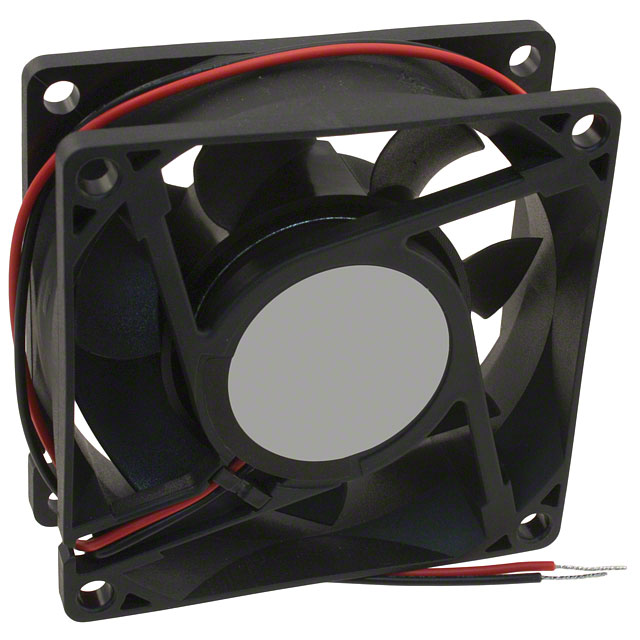

Delta Electronics AFB0724M			Plastic	Plastic			Ball					1.2 W	70 mm	70 mm	25.4 mm			24 VDC	Tubeaxial	2 Wire Leads			28 dB
Delta Electronics AFB0724M-A	14	27.6 VDC	Plastic	Plastic	0.09 A		Ball	0.199 lb	90.26 g	28.9 CFM	0.809 m³/min	2.16 W	70 mm	70 mm	25.4 mm	34.9 Pa	0.14 in H2O	24 VDC	Tubeaxial	2 Wire Leads			31.5 dB		CE CSA UL VDE			3100 RPM

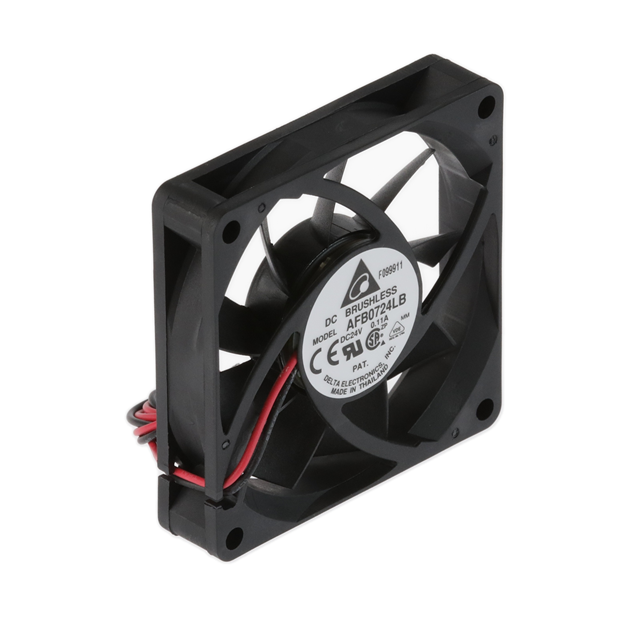

Delta Electronics AFB0724LB	14	27.6 VDC	Plastic	Plastic	60 mA		Ball			23.4 CFM	0.655 m³/min	1.44 W	70 mm	70 mm	15 mm			24 VDC	Tubeaxial	2 Wire Leads			26.5 dB		CE CSA UL VDE	47.17 g	0.104 lb	2800 RPM

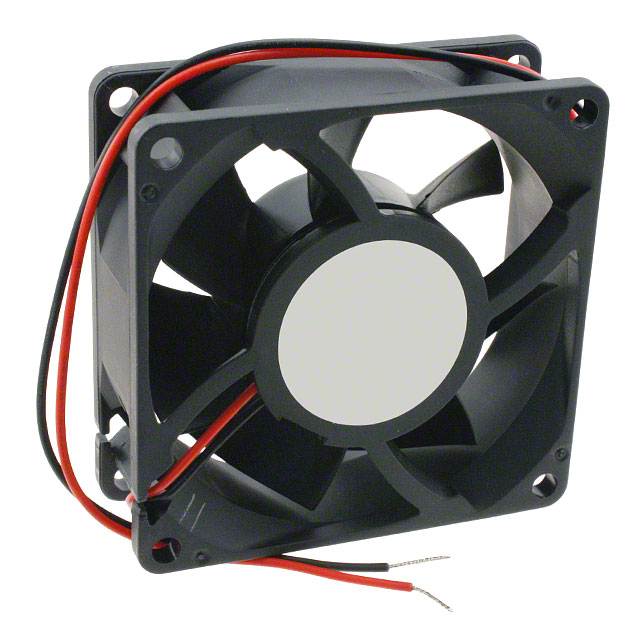

Delta Electronics AFB0724H-A	14 VDC	26.4 VDC	Plastic	Plastic		70000 Hrs	Ball	0.199 lb	90.26 g	36.3 CFM	1.02 m³/min	3.12 W	70 mm	70 mm	25.4 mm	54.1 Pa	0.217 in H2O	24 VDC	Tubeaxial	2 Wire Leads	70 °C	-10 °C	37.5 dB(A)		CE CSA UL VDE			3900 RPM
Delta Electronics AFB0724HH-AF00	14 VDC	26.4 VDC	Plastic	Plastic	0.18 A	70000 Hrs	Ball	0.199 lb	90.26 g	44 CFM	1.23 m³/min	4.32 W	70 mm	70 mm	25.4 mm	77.5 Pa	0.311 in H2O	24 VDC	Tubeaxial	3 Wire Leads	70 °C	-10 °C	44 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	CE CSA UL VDE
