178-009 Series
Manufacturer: NorComp Inc.
Beta
⌘K

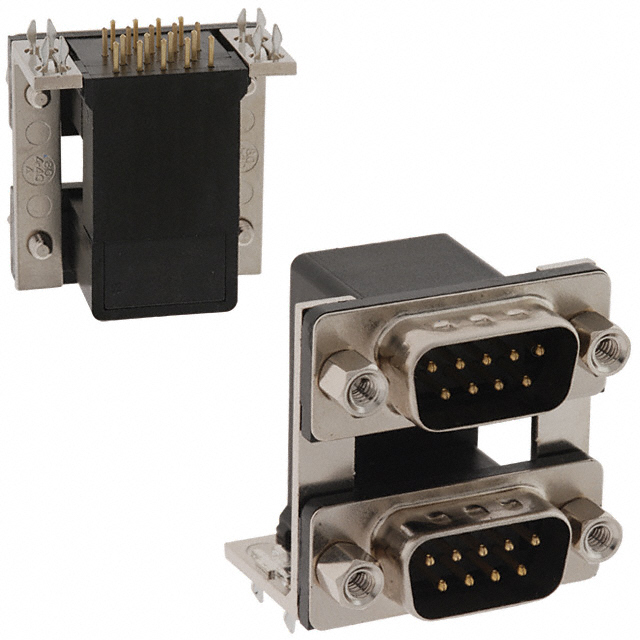

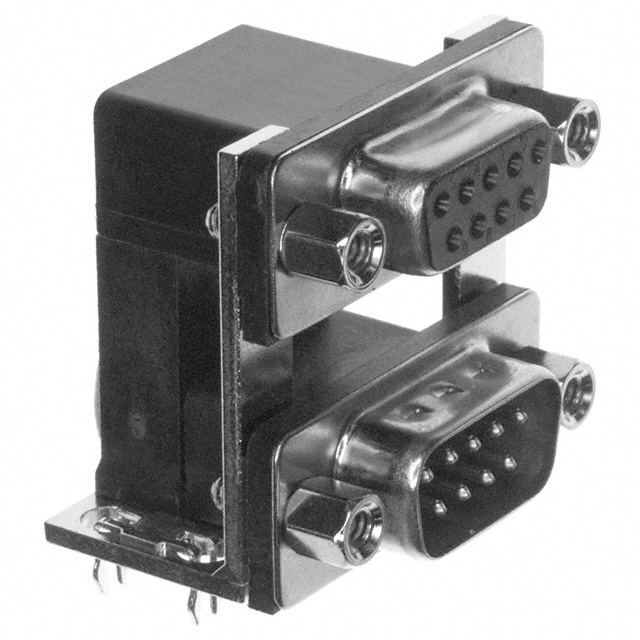

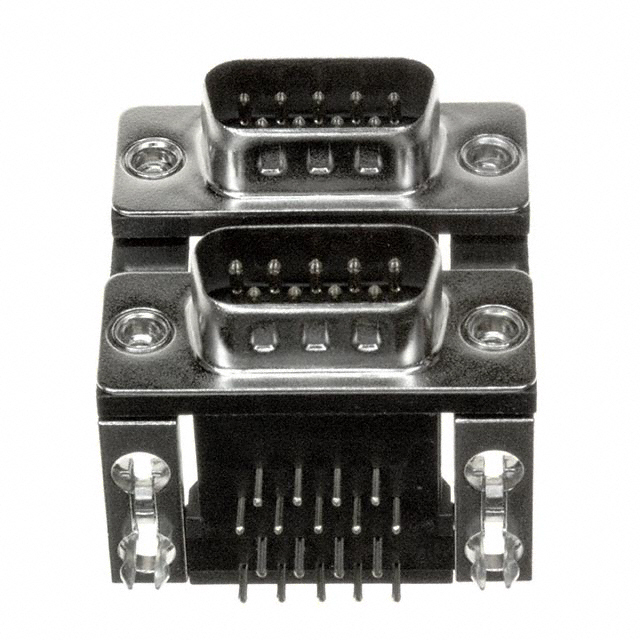

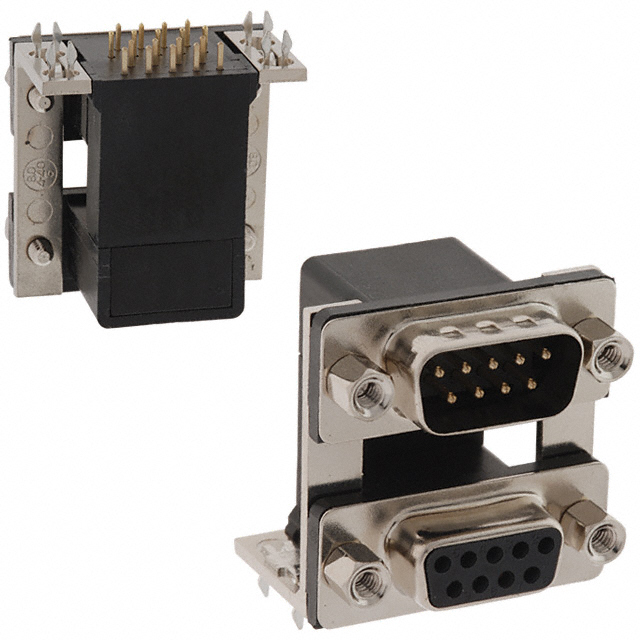

CONN D-SUB PLUG 9POS R/A SLDR
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Connector Style | Current Rating (Amps) | Mounting Type | Flange Feature | Material Flammability Rating | Termination | Contact Finish Thickness | Number of Positions | Contact Type | Contact Finish | Shell Size, Connector Layout | Connector Type | Backset Spacing | Backset Spacing | Features | Number of Rows [custom] | Shell Material, Finish | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | Black | Polyester Glass Filled | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | 2 | ||
NorComp Inc. | Brass | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | Housing/Shell | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | 2 | Nickel Plated Steel | 4-40 |
 NorComp Inc. | Brass | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | Housing/Shell | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | 2 | Nickel Plated Steel | 4-40 |
 NorComp Inc. | Brass | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | 2 | Nickel Plated Steel | |
 NorComp Inc. | Brass | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Receptacle Female Sockets | 8.08 mm | 0.318 " | Board Lock Shielded | 2 | Nickel Plated Steel | |
 NorComp Inc. | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | 2 | Nickel Plated Steel | ||
 NorComp Inc. | Brass | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | 2 | Nickel Plated Steel | |
NorComp Inc. | Brass | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Grounding Indents Shielded | 2 | Nickel Plated Steel | |
 NorComp Inc. | Brass | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | 4-40 Mating Side Female Screwlock | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Board Lock Grounding Indents Shielded | 2 | Nickel Plated Steel | |
NorComp Inc. | Brass | Black | Nylon 9T Polyamide (PA9T) | -55 C | 105 ░C | Stamped | D-Sub - Stacked | 5 A | Panel Mount Right Angle Through Hole | Housing/Shell | UL94 V-0 | Solder | Flash | 9 | Signal | Gold | 1 | Plug Male Pins Receptacle Female Sockets | 8.08 mm | 0.318 " | Grounding Indents Shielded | 2 | Nickel Plated Steel | 4-40 |
