HLMP-1540 Series

Catalog

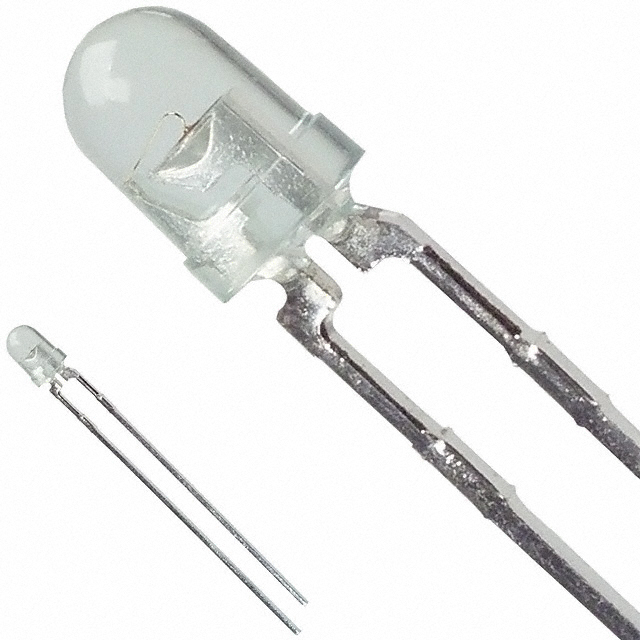

LED GREEN CLEAR T-1 T/H

Part	Viewing Angle	Voltage - Forward (Vf) (Typ)	Wavelength - Dominant	Lens Size	Lens Size	Height (Max) [z]	Millicandela Rating	Mounting Type	Wavelength - Peak	Lens Style	Supplier Device Package	Current - Test	Configuration	Lens Transparency	Color	Package / Case	Lens Color
Broadcom Limited HLMP-1540-H0002	24 °	2.2 V	569 nm	3 mm	T-1	6.35 mm	45 mcd	Through Hole	565 nm	Round with Domed Top	T-1	20 mA	Standard	Clear	Green	Radial
Broadcom Limited HLMP-1540	24 °	2.2 V	569 nm	3 mm	T-1	6.35 mm	45 mcd	Through Hole	565 nm	Round with Domed Top	T-1	20 mA	Standard	Clear	Green	Radial	Colorless
