PCA-6-LA Series

Manufacturer: Adam Tech

Catalog

CONN FFC FPC TOP 19POS 0.5MM R/A

Part	Housing Color	Current Rating (Amps)	Actuator Color	Connector/Contact Type	Material Flammability Rating	Contact Finish	Housing Material	Number of Positions	Locking Feature	FFC, FCB Thickness	Contact Material	Mounting Type	Cable End Type	Actuator Material	Operating Temperature [Max]	Operating Temperature [Min]	Pitch	Pitch	Termination	Height Above Board	Height Above Board [z]	Flat Flex Type	Features

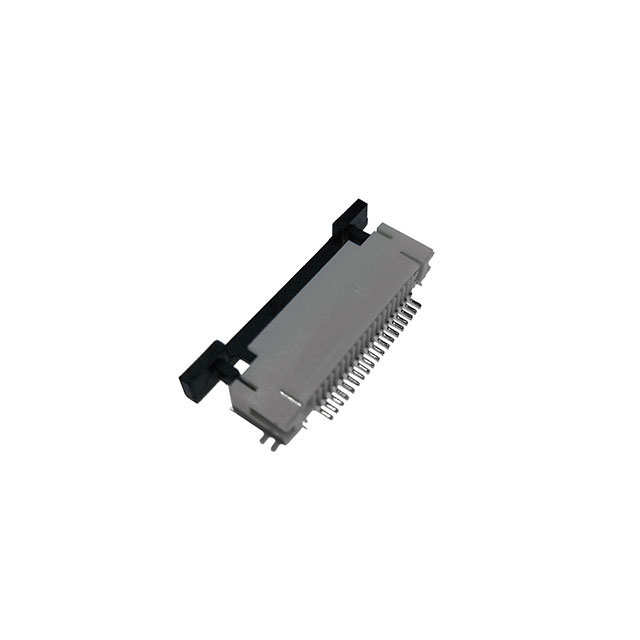

Adam Tech PCA-6-LA-19-HU-3	Natural	0.5 A	Black	Contacts Top	UL94 V-0	Tin	Thermoplastic	19	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)
Adam Tech PCA-6-LA-04-HU-3-T/R	Natural	0.5 A	Black	Contacts Top	UL94 V-0	Tin	Thermoplastic	4	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)
Adam Tech PCA-6-LA-04-HU-3	Natural	0.5 A	Black	Contacts Top	UL94 V-0	Tin	Thermoplastic	4	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)

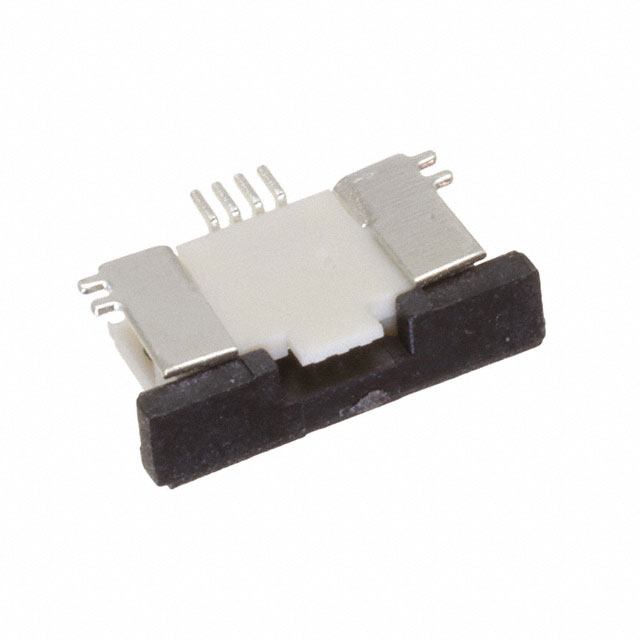

Adam Tech PCA-6-LA-04-HL-3	Natural	0.5 A	Black	Contacts Bottom	UL94 V-0	Tin	Thermoplastic	4	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)
Adam Tech PCA-6-LA-04-HL-3-T/R	Natural	0.5 A	Black	Contacts Bottom	UL94 V-0	Tin	Thermoplastic	4	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)

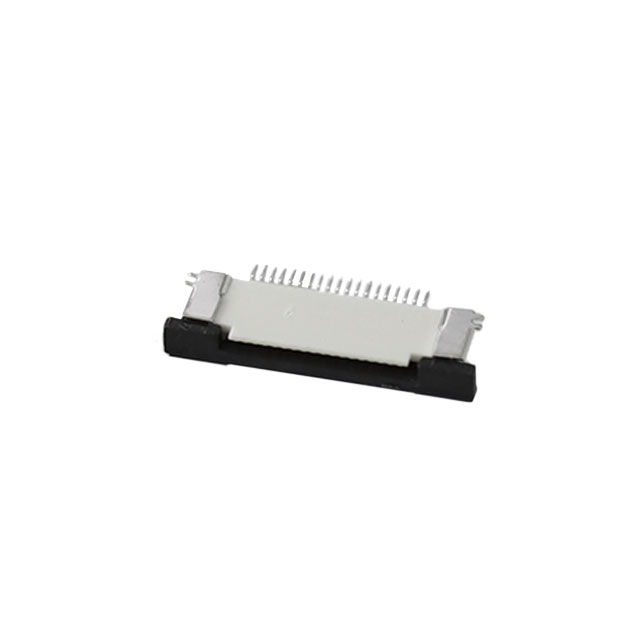

Adam Tech PCA-6-LA-19-HL-3	Natural	0.5 A	Black	Contacts Bottom	UL94 V-0	Tin	Thermoplastic	19	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)

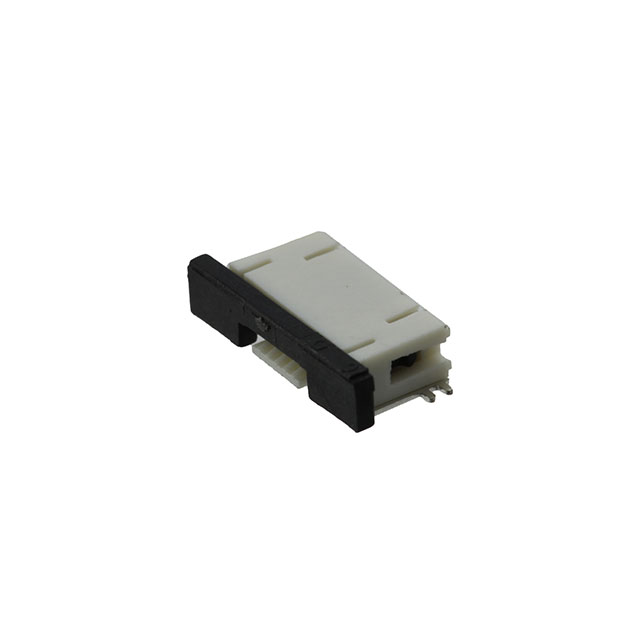

Adam Tech PCA-6-LA-06-HL-3	Natural	0.5 A	Black	Contacts Bottom	UL94 V-0	Tin	Thermoplastic	6	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)
Adam Tech PCA-6-LA-19-HL-3-T/R	Natural	0.5 A	Black	Contacts Bottom	UL94 V-0	Tin	Thermoplastic	19	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)
Adam Tech PCA-6-LA-10-HU-3-T/R	Natural	0.5 A	Black	Contacts Top	UL94 V-0	Tin	Thermoplastic	10	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)
Adam Tech PCA-6-LA-24-HL-3	Natural	0.5 A	Black	Contacts Bottom	UL94 V-0	Tin	Thermoplastic	24	Slide Lock	0.3 mm	Phosphor Bronze	Right Angle Surface Mount	Straight	Thermoplastic	85 °C	-25 °C	0.02 "	0.5 mm	Solder	2.3 mm	0.091 "	FFC FPC	Solder Retention Zero Insertion Force (ZIF)
