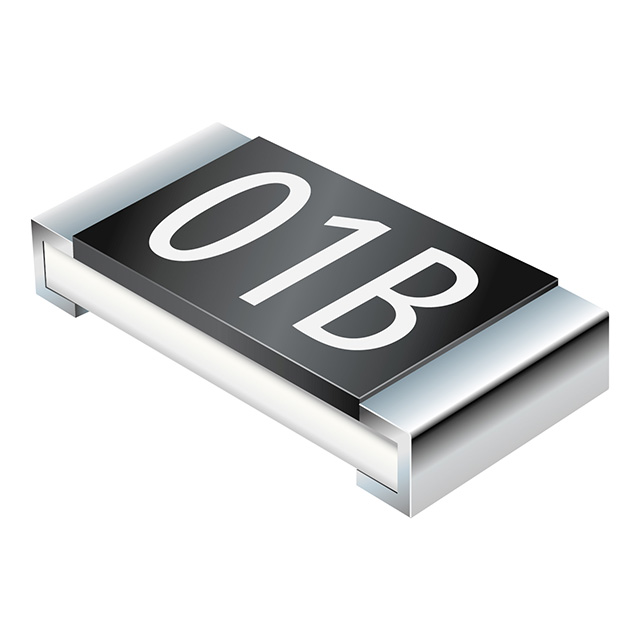

CHP Series

Catalog

THICK FILM RESISTORS - SMD RESHIGHPOWER 1206 1R 1% 3/4W TC100

Part	Resistance	Temperature Coefficient	Power (Watts)	Power (Watts)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Package / Case	Features	Supplier Device Package	Number of Terminations [custom]	Tolerance	Composition	Power (Watts)	Size / Dimension [y]	Package / Case
Bourns Inc. CHP1206-FX-1R00ELF	1 Ohms	100 ppm/°C	3/4W	0.75 W	0.026 in	0.65 mm	155 C	-55 C	0.063 "	1.6 mm	0.122 "	3.1 mm	1206 (3216 Metric)	Moisture Resistant Pulse Withstanding	1206	2	1 %	Thick Film
Bourns Inc. CHP0805-FX-1001ELF	1000 Ohms	100 ppm/°C		0.5 W	0.024 in	0.6 mm	155 C	-55 C	0.049 "	1.25 mm	0.079 in	2 mm	0805	Moisture Resistant Pulse Withstanding	0805	2	1 %	Thick Film	0.5 W
Bourns Inc. CHP0603-FX-6491ELF	6.49 kOhms	100 ppm/°C		0.333 W	0.022 in	0.55 mm	155 C	-55 C	0.031 in		0.063 "	1.6 mm	0603	Moisture Resistant Pulse Withstanding		2	1 %	Thick Film	0.3333333333333333 W	0.8 mm	1608 Metric
Bourns Inc. CHP0805-FX-1800ELF	180 Ohms	100 ppm/°C		0.5 W	0.024 in	0.6 mm	155 C	-55 C	0.049 "	1.25 mm	0.079 in	2 mm	0805	Moisture Resistant Pulse Withstanding	0805	2	1 %	Thick Film	0.5 W
Bourns Inc. CHP0603-FX-15R0ELF	15 Ohms	100 ppm/°C		0.333 W	0.022 in	0.55 mm	155 C	-55 C	0.031 in		0.063 "	1.6 mm	0603	Moisture Resistant Pulse Withstanding		2	1 %	Thick Film	0.3333333333333333 W	0.8 mm	1608 Metric
Bourns Inc. CHP1206-FX-8R20ELF		100 ppm/°C	3/4W	0.75 W	0.026 in	0.65 mm	155 C	-55 C	0.063 "	1.6 mm	0.122 "	3.1 mm	1206 (3216 Metric)	Moisture Resistant Pulse Withstanding	1206	2	1 %	Thick Film
Bourns Inc. CHP0603-FX-1201ELF	1.2 kOhms	100 ppm/°C		0.333 W	0.022 in	0.55 mm	155 C	-55 C	0.031 in		0.063 "	1.6 mm	0603	Moisture Resistant Pulse Withstanding		2	1 %	Thick Film	0.3333333333333333 W	0.8 mm	1608 Metric
Bourns Inc. CHP0603-FX-5602ELF	56 kOhms	100 ppm/°C		0.333 W	0.022 in	0.55 mm	155 C	-55 C	0.031 in		0.063 "	1.6 mm	0603	Moisture Resistant Pulse Withstanding		2	1 %	Thick Film	0.3333333333333333 W	0.8 mm	1608 Metric
Bourns Inc. CHP1206-JW-201ELF	200 Ohms	200 ppm/°C	3/4W	0.75 W	0.026 in	0.65 mm	155 C	-55 C	0.063 "	1.6 mm	0.122 "	3.1 mm	1206 (3216 Metric)	Moisture Resistant Pulse Withstanding	1206	2	5 %	Thick Film
Bourns Inc. CHP0805-FX-5600ELF	560 Ohms	100 ppm/°C		0.5 W	0.024 in	0.6 mm	155 C	-55 C	0.049 "	1.25 mm	0.079 in	2 mm	0805	Moisture Resistant Pulse Withstanding	0805	2	1 %	Thick Film	0.5 W
