PPTC321 Series

Catalog

CONN HDR 32POS 0.1 TIN PCB

Part	Insulation Material	Contact Material	Contact Shape	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Voltage Rating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Contact Type	Insulation Color	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Post	Fastening Type	Current Rating (Amps)	Number of Positions Loaded	Termination	Contact Length - Post	Contact Length - Post

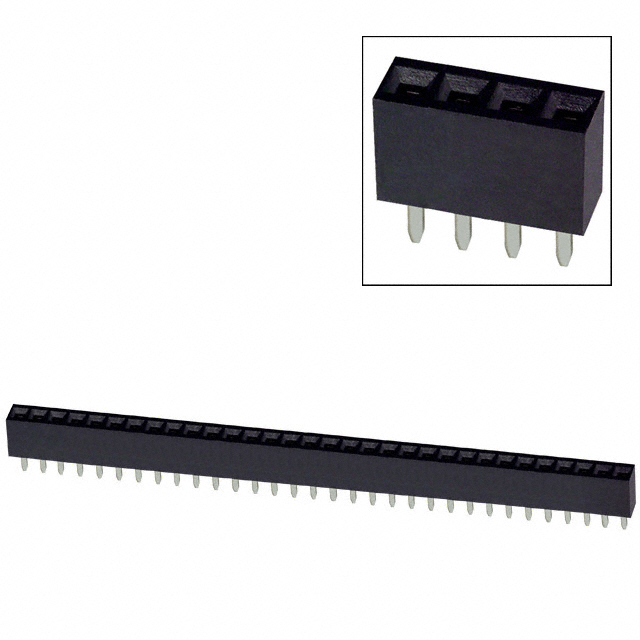

Sullins Connector Solutions PPTC321LFBN-RC	Polyester	Phosphor Bronze	Square	Header	0.126 "	3.2 mm	1	250 V	Through Hole	-40 C	105 ░C	0.335 "	8.51 mm	Female Socket	Black	0.1 "	2.54 mm	UL94 V-0	Tin	Push-Pull	3 A	All	Solder

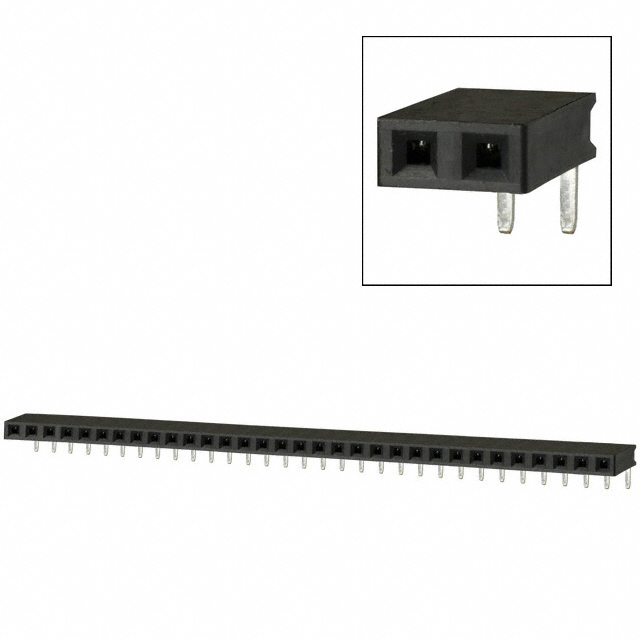

Sullins Connector Solutions PPTC321LGBN-RC	Polyester	Phosphor Bronze	Square	Header			1	250 V	Right Angle Through Hole	-40 C	105 ░C	0.1 in	2.54 mm	Female Socket	Black	0.1 "	2.54 mm	UL94 V-0	Tin	Push-Pull	3 A	All	Solder	0.124 in	3.15 mm
Sullins Connector Solutions PPTC321LGBN	Polyester	Phosphor Bronze	Square	Header			1	250 V	Right Angle Through Hole	-40 C	105 ░C	0.1 in	2.54 mm	Female Socket	Black	0.1 "	2.54 mm	UL94 V-0	Tin	Push-Pull	3 A	All	Solder	0.124 in	3.15 mm
