GTW020 Series
Manufacturer: Delta Electronics
Beta
⌘K

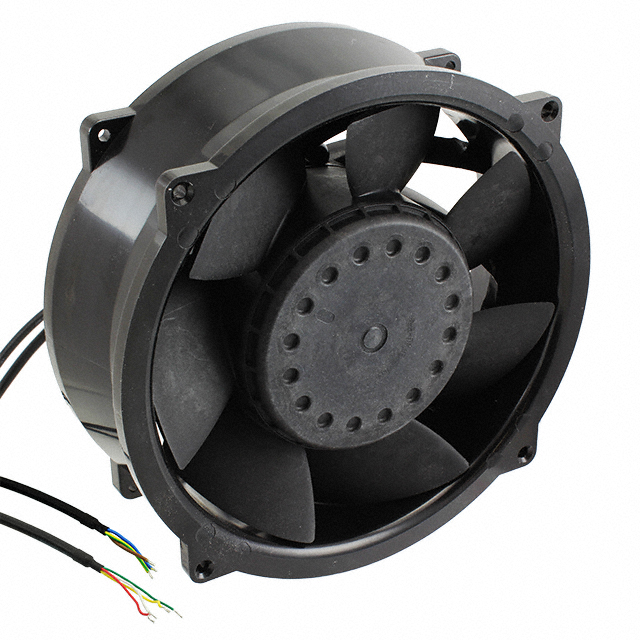

FAN AXIAL 200X122MM BALL 230VAC
| Part | Lifetime @ Temp. | Air Flow | Air Flow | Noise | Static Pressure | Static Pressure | Ingress Protection | Fan Type | Bearing Type | Features | Size / Dimension | Size / Dimension [diameter] | Width [y] | Voltage - Rated | Approval Agency | Weight | Weight | RPM | Operating Temperature [Min] | Operating Temperature [Max] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 40 °C 60000 Hrs | 636 CFM | 17.81 m³/min | 70 dB(A) | 1037 Pa | 4.163 in H2O | IP54 - Dust Protected Water Resistant | Tubeaxial | Ball | PWM Control Speed Sensor (Tach) | Round | 200 mm | 122 mm | 230 VAC | TUV UL | 2.7 kg | 6 lbs | 6000 RPM | -25 °C | 60 °C | 240 Watts |
