R60540 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

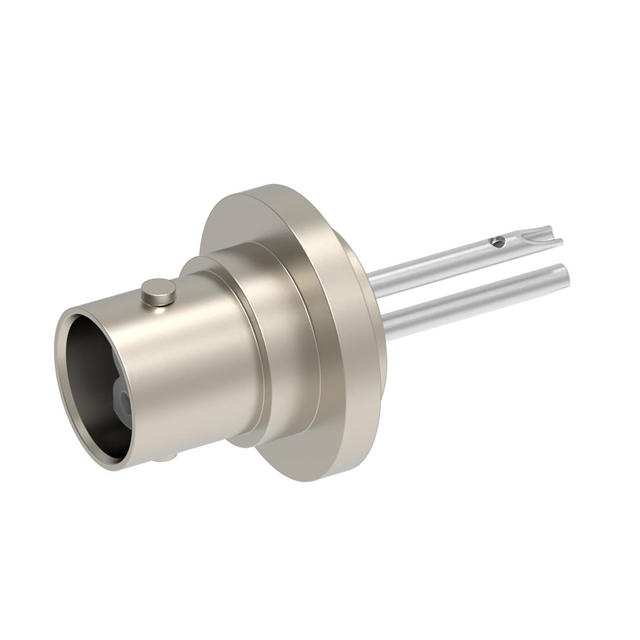

BR2 / STRAIGHT FEMALE SQUARE FLA
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Body Finish | Dielectric Material | Connector Type | Number of Ports | Mounting Type | Contact Termination | Mounting Feature | Shield Termination | Frequency - Max [Max] | Housing Color | Impedance | Fastening Type | Connector Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -40 C | 100 °C | 500 | Brass | Nickel | Diallyl Phthalate (DAP) Nylon Polyamide (PA) | Receptacle Female Socket | 1 | Panel Mount | Solder Cup | Flange | Solder | 500 MHz | Silver | 80 Ohms | Bayonet Lock | BR2 |
