Hds0 Series Series

Micro Mini Side Actuated Surface Mount Detect Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Micro Mini Side Actuated Surface Mount Detect Switch

Part	Current Rating (Amps)	Operating Force	Circuit	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Overtravel	Overtravel	Voltage Rating - DC	Mechanical Life	Pretravel	Pretravel	Actuator Type	Mounting Type	Termination Style	Operating Position [x]	Operating Position [x]

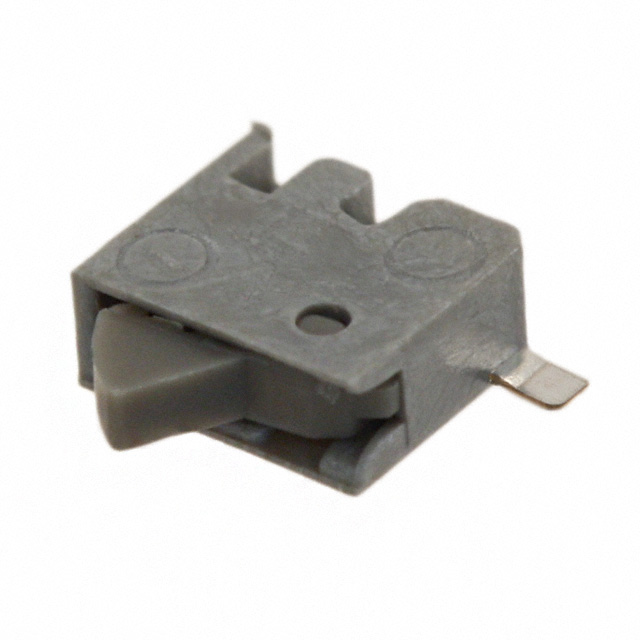

Littelfuse/Commercial Vehicle Products HDS001L	1 mA	30 gf	SPST-NO	Off-Mom	-40 °C	80 C	100000 Cycles	0.02 in	0.5 mm	5 V	100000 Cycles	0.17 mm	0.007 "	Angled Toggle (Detector)	Surface Mount Right Angle	SMD (SMT) Tab	1.5 mm	0.059 in

Catalog

Micro Mini Side Actuated Surface Mount Detect Switch

Key Features

• Low profile package sits just 1.4 mm off PCB

• Design allows top or side actuation

• Right and left options available

Description
