PLR75C Series
Manufacturer: Cinch Connectivity Solutions Trompeter
Beta
⌘K

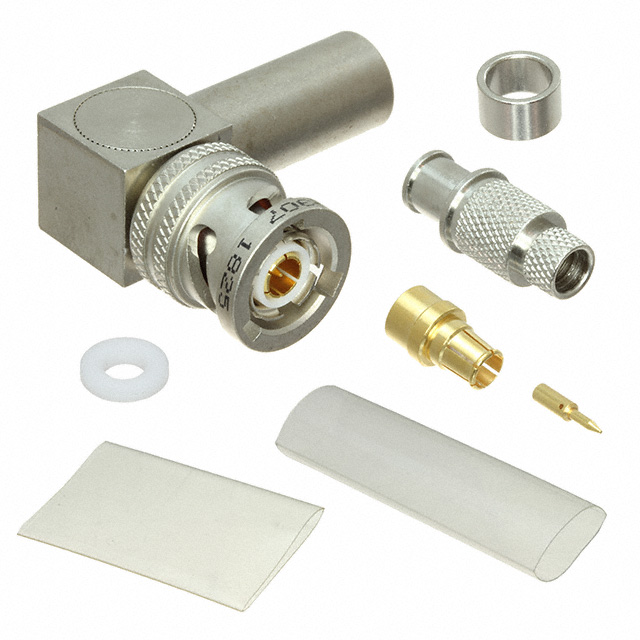

CONN TRB PLUG R/A CRIMP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Includes | Center Contact Plating | Body Finish | Mating Cycles | Body Material | Frequency - Max [Max] | Mounting Type | Connector Style | Impedance | Fastening Type | Shield Termination | Center Contact Material | Features | Number of Ports | Cable Group | Contact Termination | Connector Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 1 Connector 1 Heat Shrink 1 Strain Relief | Gold | Nickel | 500 | Brass | 500 MHz | Free Hanging (In-Line) Right Angle | TRB Twinaxial/Triaxial | Non-Constant | Bayonet Lock | Crimp | Beryllium Copper | Three Lug | 1 | Raychem 7528A5314 | Crimp | Plug Male Pin (Concentric) | Silver |
 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 1 Connector 1 Heat Shrink 1 Strain Relief | Gold | Nickel | 500 | Brass | 500 MHz | Free Hanging (In-Line) Right Angle | TRB Twinaxial/Triaxial | Non-Constant | Bayonet Lock | Crimp | Beryllium Copper | Three Lug | 1 | Raychem 10602 | Crimp | Plug Male Pin (Concentric) | Silver |
 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 1 Connector 1 Heat Shrink 1 Strain Relief | Gold | Nickel | 500 | Brass | 500 MHz | Free Hanging (In-Line) Right Angle | TRB Twinaxial/Triaxial | Non-Constant | Bayonet Lock | Crimp | Beryllium Copper | Three Lug | 1 | M17/176-00002 | Crimp | Plug Male Pin (Concentric) | Silver |
 Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 1 Connector 1 Heat Shrink 1 Strain Relief | Gold | Nickel | 500 | Brass | 500 MHz | Free Hanging (In-Line) Right Angle | TRB Twinaxial/Triaxial | Non-Constant | Bayonet Lock | Crimp | Beryllium Copper | Three Lug | 1 | TRC-75-1 | Crimp | Plug Male Pin (Concentric) | Silver |
Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 1 Connector 1 Strain Relief | Gold | Nickel | 500 | Brass | 500 MHz | Free Hanging (In-Line) Right Angle | TRB Twinaxial/Triaxial | Non-Constant | Bayonet Lock | Crimp | Beryllium Copper | Three Lug | 1 | TRC-75-2 | Crimp | Plug Male Pin (Concentric) | Silver |
Cinch Connectivity Solutions Trompeter | -65 ░C | 165 °C | 400 V | 1 Connector 1 Heat Shrink 1 Strain Relief | Gold | Nickel | 500 | Brass | 500 MHz | Free Hanging (In-Line) Right Angle | TRB Twinaxial/Triaxial | Non-Constant | Bayonet Lock | Crimp | Beryllium Copper | Three Lug | 1 | TWCP-124-3 | Crimp | Plug Male Pin (Concentric) | Silver |
