842-032 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE SINGLE FML 32POS 0.100

...

Part	Material - Insulation	Termination Rows	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Type	Contact Material	Number of Rows	Mounting Type	Flange Feature	Pitch	Pitch	Color	Termination	Read Out	Operating Temperature [Max]	Operating Temperature [Min]	Card Type	Gender	Contact Finish	Flange Feature [diameter]	Flange Feature [diameter]	Termination Rows [custom]	Number of Rows [custom]	Features
EDAC Inc. 842-032-540-108	Diallyl Phthalate (DAP)	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	32	Cantilever	Copper Alloy	1	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	0.1 "	2.54 mm	Green	Wire Wrap	Single	125 °C	-40 C	Non Specified - Single Edge	Female	Gold
EDAC Inc. 842-032-540-104	Diallyl Phthalate (DAP)	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	32	Cantilever	Copper Alloy	1	Through Hole	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm	Green	Wire Wrap	Single	125 °C	-40 C	Non Specified - Single Edge	Female	Gold	0.156 "	3.96 mm

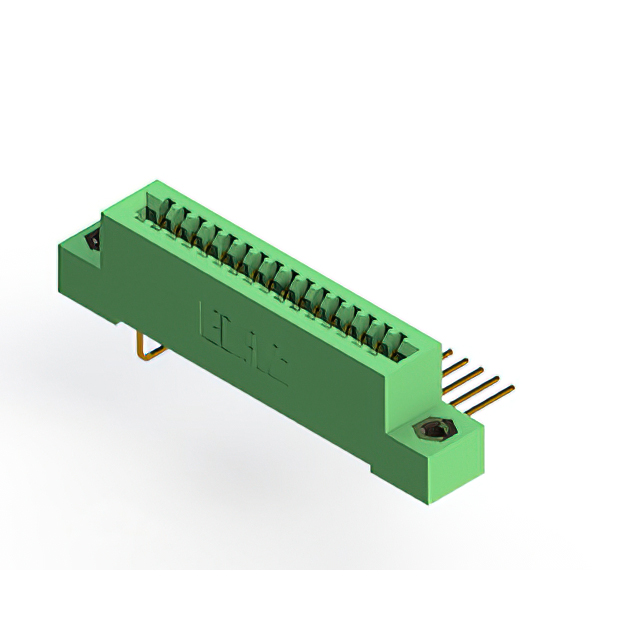

EDAC Inc. 842-032-559-208	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Copper Alloy		Right Angle Through Hole	4-40 Flush Mount Threaded Insert Top Opening	0.1 "	2.54 mm	Green	Solder	Dual	125 °C	-40 C	Non Specified - Dual Edge	Female	Gold			2	2

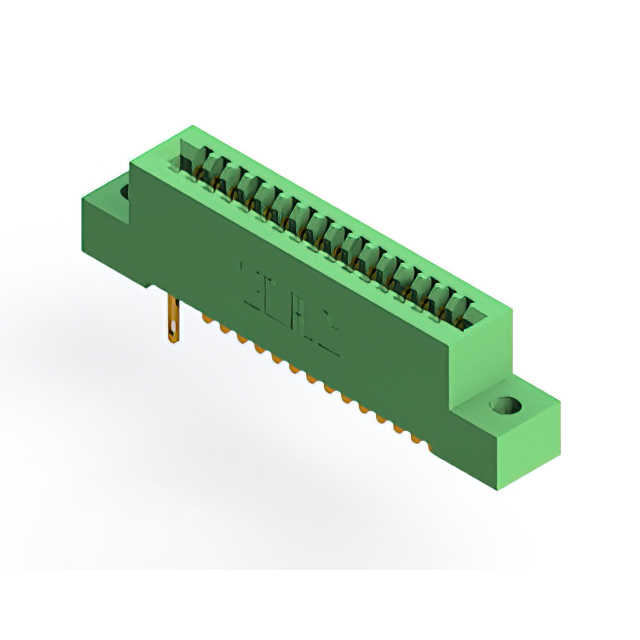

EDAC Inc. 842-032-500-202	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Copper Alloy		Through Hole	Flush Mount Top Opening Unthreaded	0.1 "	2.54 mm	Green	Solder Eyelet(s)	Dual	125 °C	-40 C	Non Specified - Dual Edge	Female	Gold	0.128 "	3.25 mm	2	2

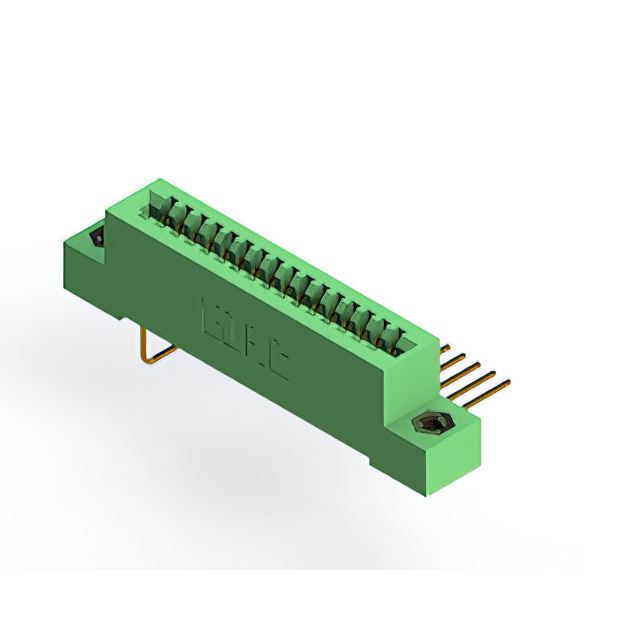

EDAC Inc. 842-032-558-208	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Copper Alloy		Right Angle Through Hole	4-40 Flush Mount Threaded Insert Top Opening	0.1 "	2.54 mm	Green	Solder	Dual	125 °C	-40 C	Non Specified - Dual Edge	Female	Gold			2	2

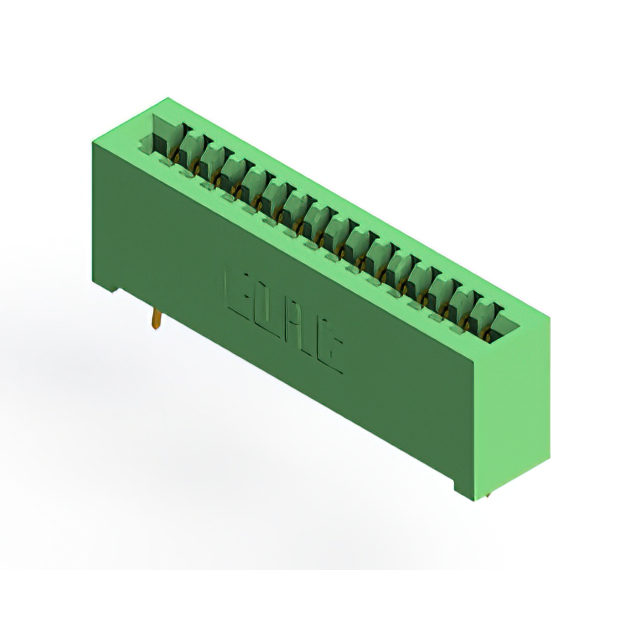

EDAC Inc. 842-032-556-201	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Copper Alloy		Board Edge Straddle Mount		0.1 "	2.54 mm	Green	Solder	Dual	125 °C	-40 C	Non Specified - Dual Edge	Female	Gold			2	2	Card Extender
EDAC Inc. 842-032-560-208	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Copper Alloy		Board Edge Straddle Mount	4-40 Flush Mount Threaded Insert Top Opening	0.1 "	2.54 mm	Green	Solder	Dual	125 °C	-40 C	Non Specified - Dual Edge	Female	Gold			2	2	Card Extender
EDAC Inc. 842-032-540-207	Diallyl Phthalate (DAP)		0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	16	Cantilever	Copper Alloy		Through Hole	Flush Mount M3 Threaded Insert Top Opening	0.1 "	2.54 mm	Green	Wire Wrap	Dual	125 °C	-40 C	Non Specified - Dual Edge	Female	Gold			2	2
EDAC Inc. 842-032-540-112	Diallyl Phthalate (DAP)	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	32	Cantilever	Copper Alloy	1	Through Hole	Flush Mount Side Opening Unthreaded	0.1 "	2.54 mm	Green	Wire Wrap	Single	125 °C	-40 C	Non Specified - Single Edge	Female	Gold	0.128 "	3.25 mm

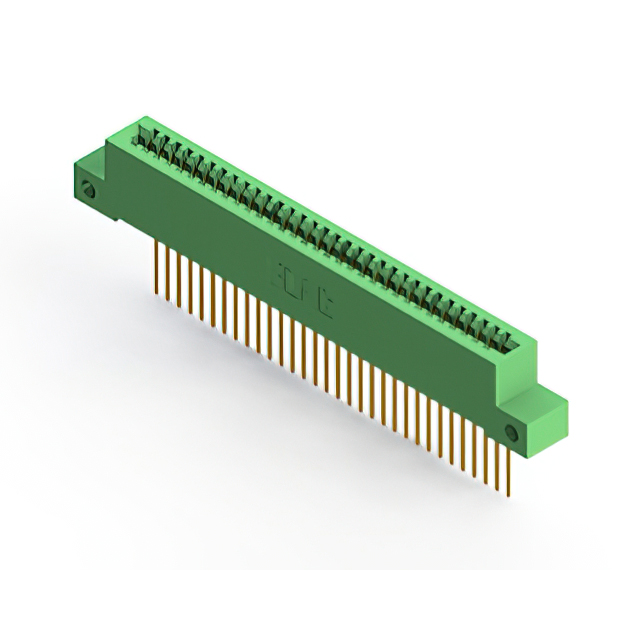

EDAC Inc. 842-032-542-112	Diallyl Phthalate (DAP)	1	0.25 Ám	10 Áin	0.07 in 1.78 mm	0.054 in 1.37 mm	32	Cantilever	Copper Alloy	1	Through Hole	Flush Mount Side Opening Unthreaded	0.1 "	2.54 mm	Green	Wire Wrap	Single	125 °C	-40 C	Non Specified - Single Edge	Female	Gold	0.128 "	3.25 mm
