TJ07 Series

Catalog

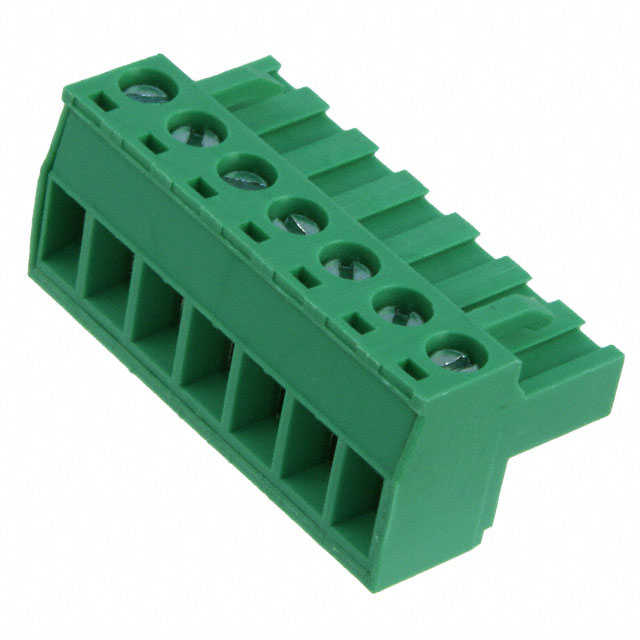

TERM BLOCK PLUG 7POS STR 7.62MM

Part	Housing Material	Features	Contact Material	Insulation Height	Insulation Height	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - UL	Screw Size	Voltage - UL	Wire Strip Length [Min]	Wire Strip Length [Max]	Positions Per Level	Mounting Type	Torque - Screw	Torque - Screw	Pitch [x]	Pitch [x]	Material Flammability Rating	Number of Positions	Contact Mating Finish	Color	Number of Levels	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Current - IEC	Voltage - IEC	Wire Gauge or Range - mm²	Wire Gauge or Range - mm˛	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Amphenol Anytek TJ0701020000G	Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	Phosphor Bronze	0.594 in	15.09 mm	Screw	-40 °C	115 °C	Plug Female Sockets	24 AWG	12 AWG	20 A	M3	300 V	7 mm	8 mm	7	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	0.3 in	7.62 mm	UL94 V-0	7	Tin	Black	1
Amphenol Anytek TJ0771560000G	Thermoplastic Resin		Copper Alloy	0.594 in	15.09 mm	Screw - Rising Cage Clamp	-40 °C	115 °C	Plug Female Sockets	24 AWG	12 AWG	12 A	M3	300 V	7 mm	8 mm	7	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	0.197 in	5 mm	UL94 V-0	7	Tin	Green	1	1 mm˛	2.5 mm˛
Amphenol Anytek TJ0731030000G	Thermoplastic		Phosphor Bronze	0.437 in	11.1 mm	Screw	-40 °C	115 °C	Plug Female Sockets	28 AWG	16 AWG	10 A	M2	300 V	6 mm	7 mm	7	Free Hanging (In-Line)			0.15 in	3.81 mm	UL94 V-0	7	Tin	Black	1			10.5 A	300 V	1.5 mm²
Amphenol Anytek TJ0731820000G	Thermoplastic	Mating Flange	Phosphor Bronze	0.437 in	11.1 mm	Screw	-40 °C	115 °C	Plug Female Sockets	28 AWG	16 AWG	10 A	M2	300 V	6 mm	7 mm	7	Free Hanging (In-Line)			0.15 in	3.81 mm	UL94 V-0	7	Tin	Gray	1			10.5 A	300 V		1.5 mm˛
Amphenol Anytek TJ0751040000G	Thermoplastic	Retention Latches (Non-Wire Side) Strain Relief	Copper			Screw	-40 °C	115 °C	Plug Female Sockets	24 AWG	12 AWG	20 A	M3	300 V	7 mm	8 mm	7	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	0.2 in	5.08 mm	UL94 V-0	7	Tin	Black	1			20 A	300 V			0.34 mm²	2.5 mm²
Amphenol Anytek TJ07A1020000G	Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	Copper	0.594 in	15.09 mm	Screw	-40 °C	115 °C	Plug Female Sockets	24 AWG	12 AWG	20 A	M3	300 V	7 mm	8 mm	7	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	0.295 in	7.5 mm	UL94 V-0	7	Tin	Black	1
Amphenol Anytek TJ0751570000G	Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	Copper	0.594 in	15.09 mm	Screw	-40 °C	115 °C	Plug Female Sockets	24 AWG	12 AWG	20 A	M3	300 V	7 mm	8 mm	7	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	0.2 in	5.08 mm	UL94 V-0	7	Tin	Green	1
Amphenol Anytek TJ0771870000G	Thermoplastic	Mating Flange Retention Latches (Non-Wire Side)	Copper	0.594 in	15.09 mm	Screw	-40 °C	115 °C	Plug Female Sockets	24 AWG	12 AWG	20 A	M3	300 V	7 mm	8 mm	7	Free Hanging (In-Line)	0.56 Nm	5 Lb-In	0.197 in	5 mm	UL94 V-0	7	Tin	Gray	1
Amphenol Anytek TJ0711040000G	Thermoplastic	Strain Relief	Phosphor Bronze			Screw	-40 °C	115 °C	Plug Female Sockets	28 AWG	16 AWG	10 A	M2	300 V	6 mm	7 mm	7	Free Hanging (In-Line)			0.138 in	3.5 mm	UL94 V-0	7	Tin	Black	1			10.5 A	300 V	1.5 mm²
Amphenol Anytek TJ0711540000G	Thermoplastic	Strain Relief	Phosphor Bronze			Screw	-40 °C	115 °C	Plug Female Sockets	28 AWG	16 AWG	10 A	M2	300 V	6 mm	7 mm	7	Free Hanging (In-Line)			0.138 in	3.5 mm	UL94 V-0	7	Tin	Green	1			10.5 A	300 V	1.5 mm²
