PM2 Series

Catalog

RING TONGUE TERMINAL, M3, #5, 14 AWG, 2.5 MM², PM SERIES

Part	Features	Stud/Tab Size	Terminal Type	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Contact Material	Width - Outer Edges	Width - Outer Edges	Insulation	Contact Finish	Thickness	Thickness	Mounting Type	Tongue Inside Opening [diameter]	Tongue Inside Opening [diameter]	Length - Overall [x]	Length - Overall [x]	Color	Material	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	For Use With/Related Products
Panduit Corp PM2-3R-C	Brazed Seam Serrated Termination	M3 Stud	Circular	14 AWG	16 AWG	Crimp	Copper	5.84 mm	0.23 in	Non-Insulated	Tin	0.81 mm	0.032 in	Free Hanging (In-Line)

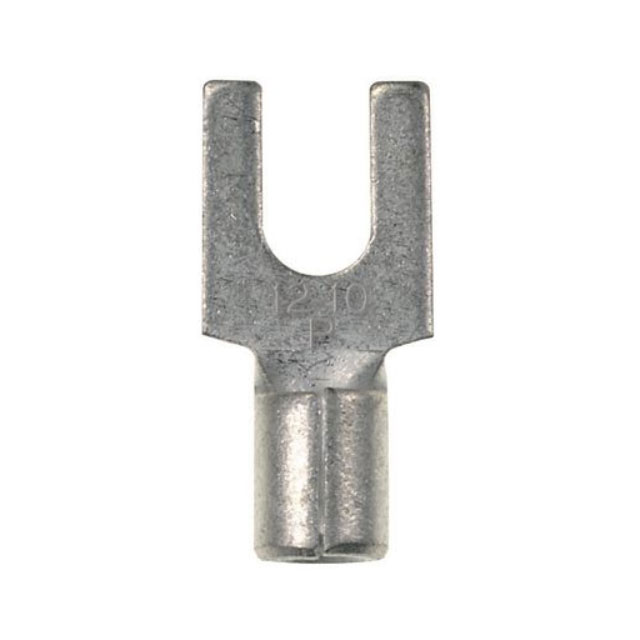

Panduit Corp PM2-3F-C	Brazed Seam Serrated Termination	M3 Stud	Standard	14 AWG	16 AWG	Crimp	Copper	5.84 mm	0.23 in	Non-Insulated	Tin			Free Hanging (In-Line)	3.3 mm	0.13 in	0.63 in	16 mm

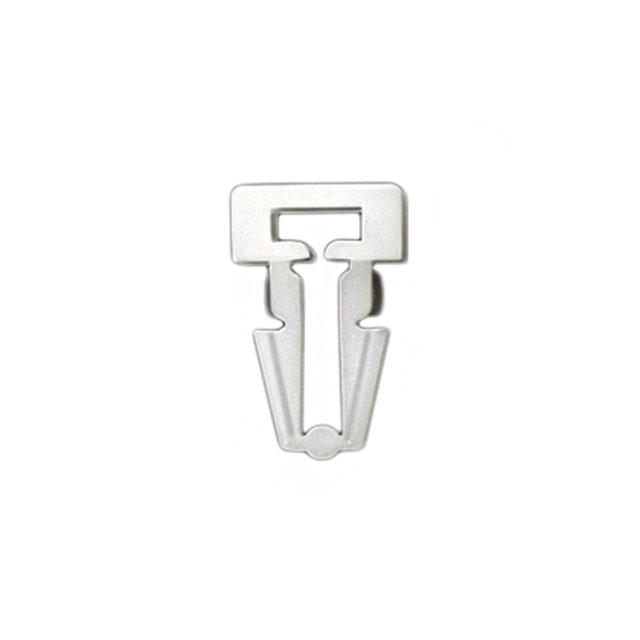

Panduit Corp PM2H25-C														Push In - Arrowhead					Natural	Nylon	Single Opening	0.38 "	0.62 in	7.6 mm	9.7 mm	15.8 mm	0.3 "	I Ties M Ties S Ties

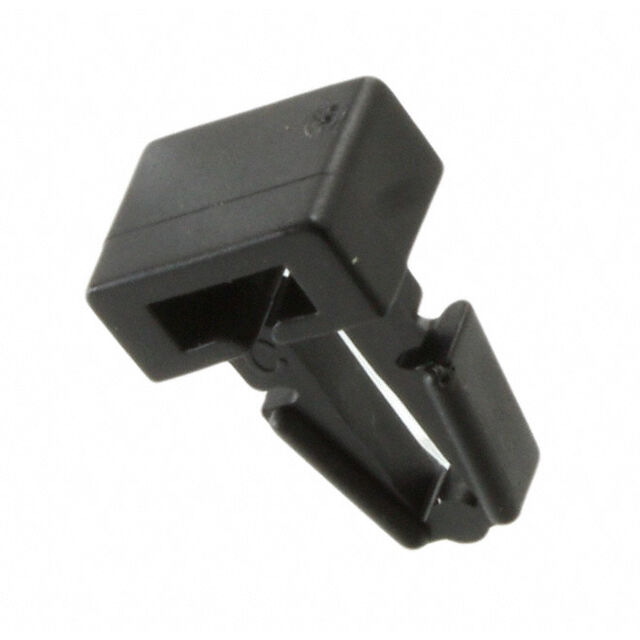

Panduit Corp PM2H25-M0														Push In - Arrowhead					Black	Nylon Weather Resistant	Single Opening	0.38 "	0.62 in	7.6 mm	9.7 mm	15.8 mm	0.3 "	I Ties M Ties S Ties

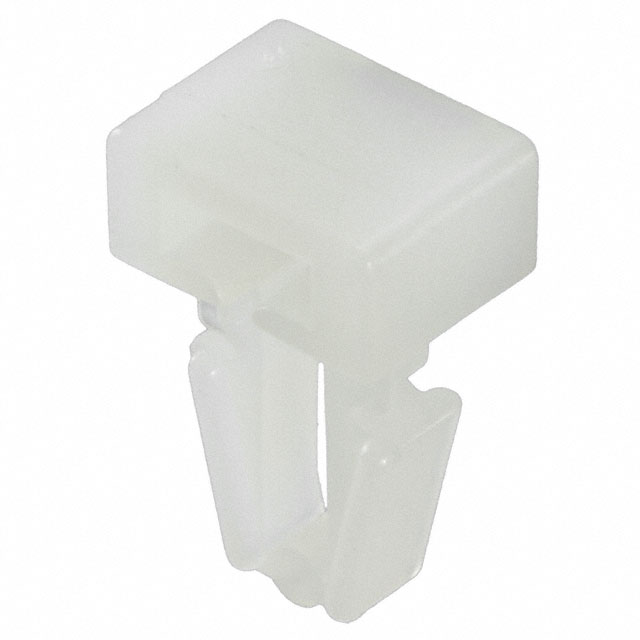

Panduit Corp PM2H25-M														Push In - Arrowhead					Natural	Nylon	Single Opening	0.38 "	0.62 in	7.6 mm	9.7 mm	15.8 mm	0.3 "	I Ties M Ties S Ties
