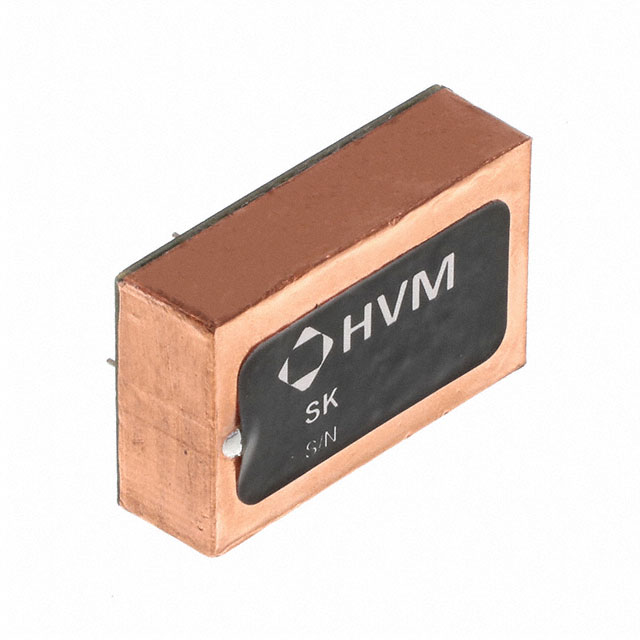

SK05 Series

Catalog

DC DC CONVERTER 4000V 1W

Part	Efficiency	Applications	Mounting Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Package / Case	Voltage - Input (Max) [Max]
HVM Technology, Inc. SK0540	60 %	ITE (Commercial)	Through Hole	4000 V	4.5 V	250 µA	1	High Voltage - Non-Isolated Module	60 °C	-40 C	44.5 mm	0.5 in	1.1 in	27.9 mm	1.75 "	12.7 mm	5-DIP Module	5.5 V
HVM Technology, Inc. SK0530N	60 %	ITE (Commercial)	Through Hole	-3000 V	4.5 V	333 µA	1	High Voltage - Non-Isolated Module	60 °C	-40 C	44.5 mm	0.5 in	1.1 in	27.9 mm	1.75 "	12.7 mm	5-DIP Module	5.5 V
HVM Technology, Inc. SK0530	60 %	ITE (Commercial)	Through Hole	3000 V	4.5 V	333 µA	1	High Voltage - Non-Isolated Module	60 °C	-40 C	44.5 mm	0.5 in	1.1 in	27.9 mm	1.75 "	12.7 mm	5-DIP Module	5.5 V
HVM Technology, Inc. SK0540N	60 %	ITE (Commercial)	Through Hole	-4000 V	4.5 V	250 µA	1	High Voltage - Non-Isolated Module	60 °C	-40 C	44.5 mm	0.5 in	1.1 in	27.9 mm	1.75 "	12.7 mm	5-DIP Module	5.5 V
