171822 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
CONN RCPT HSG 8POS 2.50MM
| Part | Number of Rows | Pitch [x] | Pitch [x] | Connector Type | Insulation Material | Contact Type | Color | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Note | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Black | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | 8 |
 TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Natural | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | 2 |

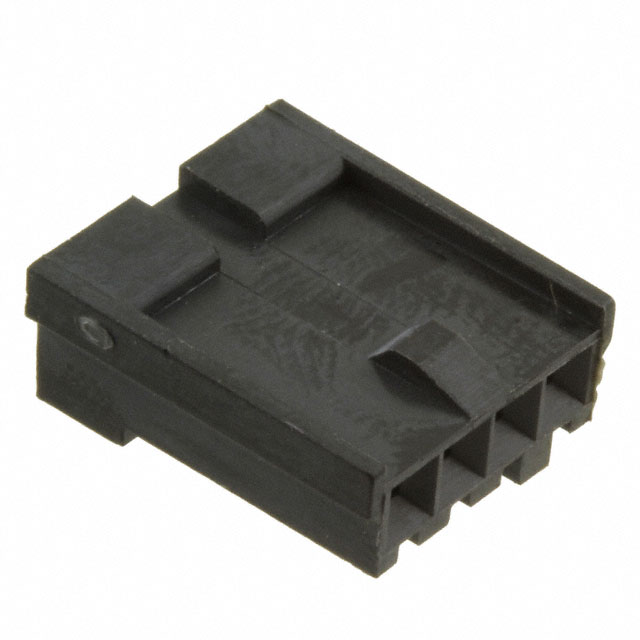

 TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Black | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | 4 |

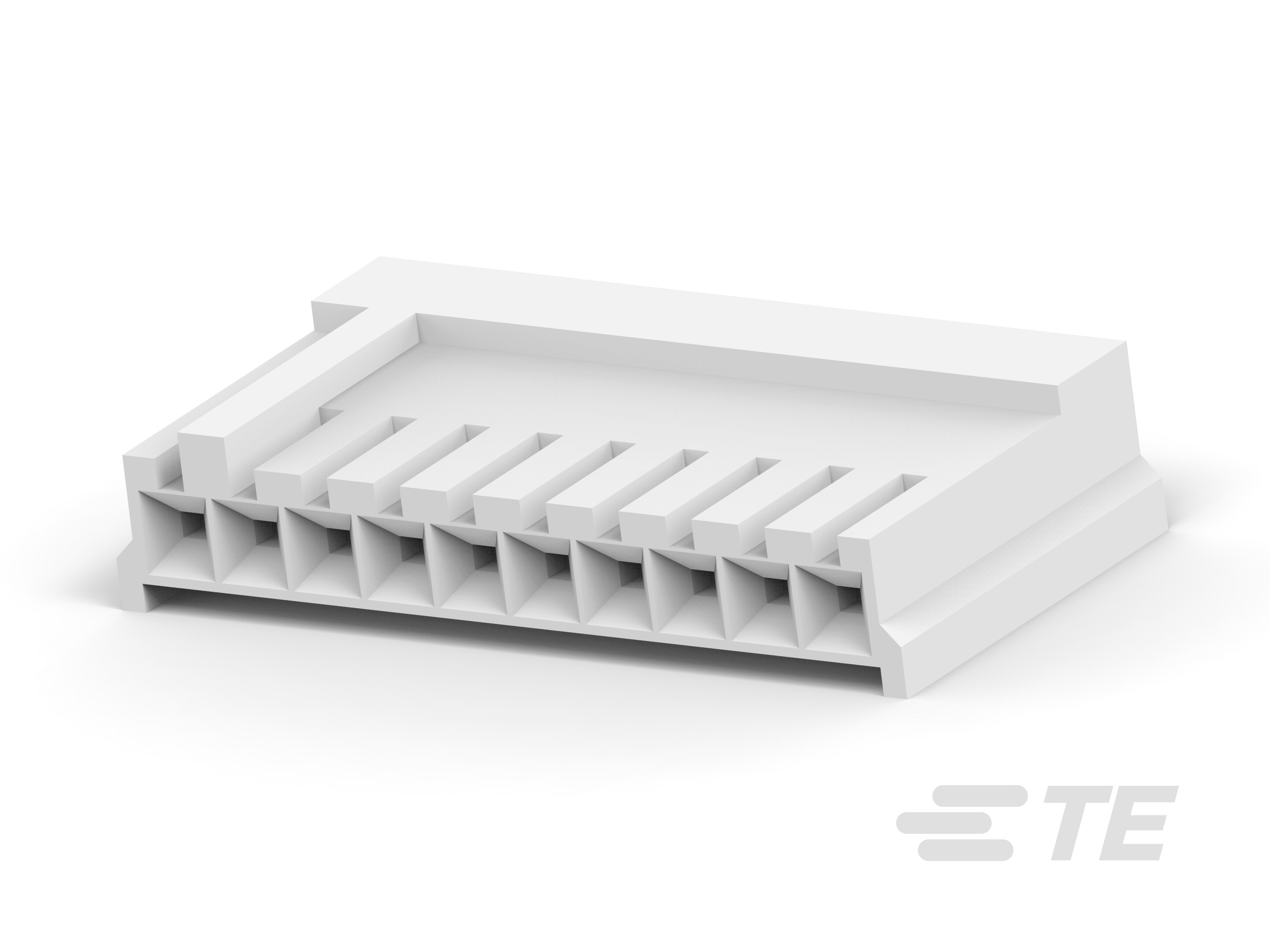

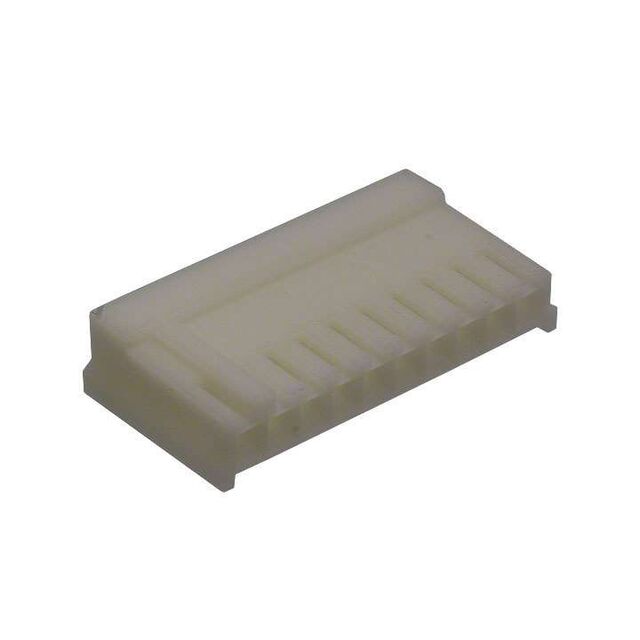

 TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Natural | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | 10 |

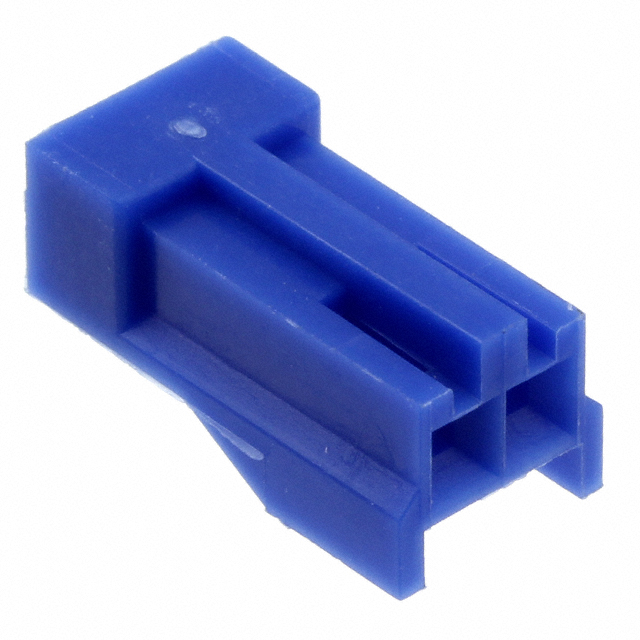

 TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Blue | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | 2 |

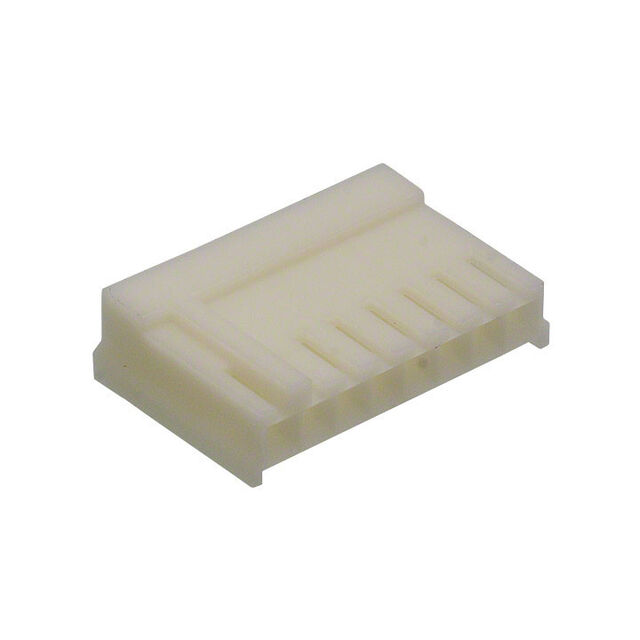

 TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Natural | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | 8 |
 TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Blue | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | 6 |
TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Red | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | |
TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Green | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included | 4 |
TE Connectivity Raychem Cable Protection | 1 | 0.098 in | 2.5 mm | Receptacle | Polyamide (PA66) Nylon 6/6 | Female Socket | Blue | Crimp | -20 C | 203 °F | Free Hanging (In-Line) | Contacts Not Included |
