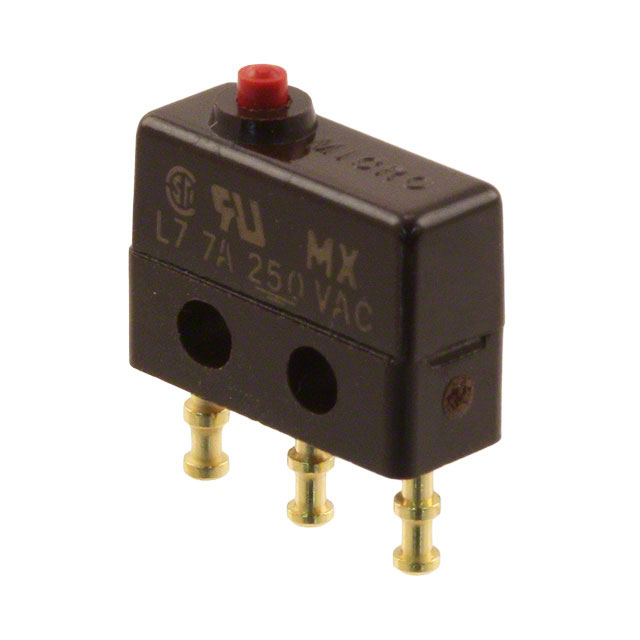

21SX39 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
MICROSWITCH, SUBMINIATURE, PIN PLUNGER, SPDT, SOLDER, 7 A, 28 VDC
| Part | Operating Position | Operating Position | Overtravel [custom] | Overtravel [custom] | Operating Force | Termination Style | Current Rating (Amps) | Voltage Rating - DC | Pretravel | Pretravel | Operating Temperature [Min] | Operating Temperature [Max] | Switch Function | Release Force | Mounting Type | Mechanical Life | Differential Travel | Differential Travel | Circuit | Voltage Rating - AC | Actuator Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | 8.13 mm | 0.32 " | 0.004 in | 0.1 mm | 141 gf | Solder Turret | 7 A | 28 V | 0.02 in | 0.5 mm | -53 °C | 85 °C | On-Mom | 28 gf | Chassis Mount | 1000000 Cycles | 0.005 in | 0.13 mm | SPDT | 115 V | Round (Pin Plunger) |
