395-090 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 90POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Features	Number of Rows [custom]	Contact Finish	Read Out	Number of Positions/Bay/Row	Gender	Termination	Contact Type	Contact Material	Card Type	Color	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Flange Feature	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]

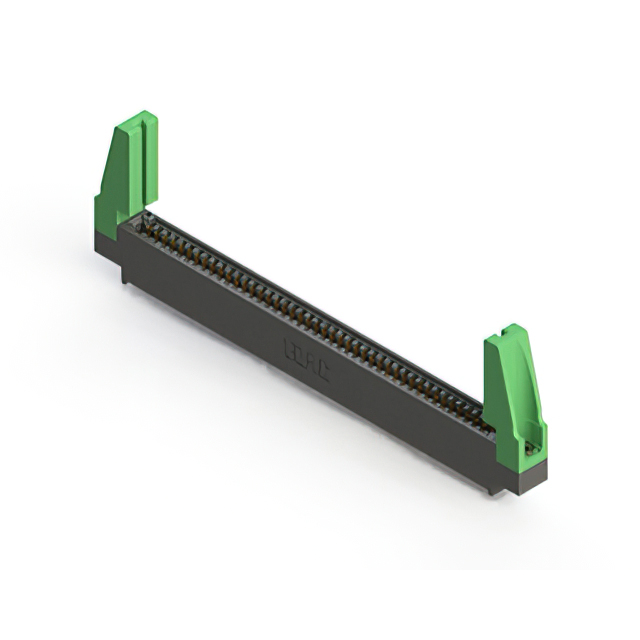

EDAC Inc. 395-090-560-888	2	Polyester Thermoplastic	Card Extender Card Guides	2	Gold	Dual	45	Female	Solder	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm	4-40 Threaded Insert Top Mount Opening	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C
EDAC Inc. 395-090-541-508	2	Polyester Thermoplastic		2	Gold	Dual	45	Female	Wire Wrap	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm	4-40 Threaded Insert Top Mount Opening	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C
EDAC Inc. 395-090-556-201	2	Polyester Thermoplastic	Card Extender	2	Gold	Dual	45	Female	Solder	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm		Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C
EDAC Inc. 395-090-541-507	2	Polyester Thermoplastic		2	Gold	Dual	45	Female	Wire Wrap	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm	M3 Threaded Insert Top Mount Opening	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C

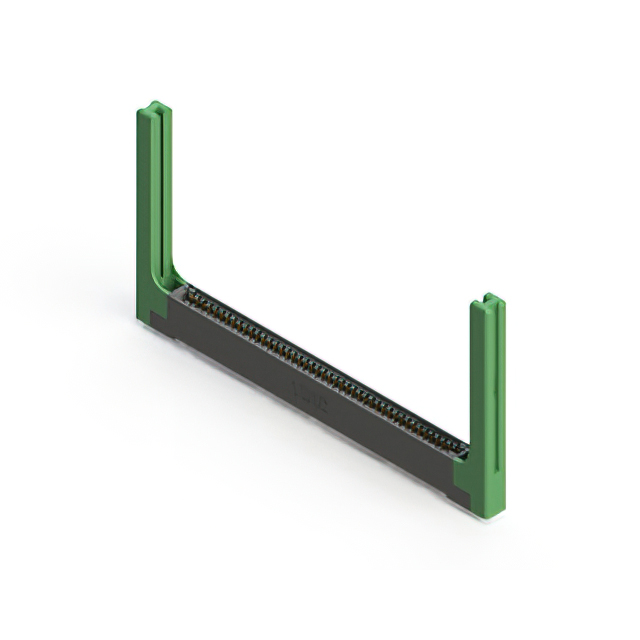

EDAC Inc. 395-090-560-258	2	Polyester Thermoplastic	Card Extender Card Guides	2	Gold	Dual	45	Female	Solder	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm	4-40 Flush Mount Threaded Insert Top Opening	Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C
EDAC Inc. 395-090-524-808	2	Polyester Thermoplastic		2	Gold	Dual	45	Female	Solder	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm	4-40 Threaded Insert Top Mount Opening	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C
EDAC Inc. 395-090-542-808	2	Polyester Thermoplastic		2	Gold	Dual	45	Female	Wire Wrap	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm	4-40 Threaded Insert Top Mount Opening	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C
EDAC Inc. 395-090-524-512	2	Polyester Thermoplastic		2	Gold	Dual	45	Female	Solder	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm	Side Mount Opening Unthreaded	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C	0.128 "	3.25 mm
EDAC Inc. 395-090-558-804	2	Polyester Thermoplastic		2	Gold	Dual	45	Female	Solder	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm		Right Angle Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C	0.156 "	3.96 mm
EDAC Inc. 395-090-556-804	2	Polyester Thermoplastic	Card Extender	2	Gold	Dual	45	Female	Solder	Cantilever	Copper Alloy	Non Specified - Dual Edge	Black	0.25 Ám	10 Áin	0.1 "	2.54 mm		Board Edge Straddle Mount	0.07 in 1.78 mm	0.054 in 1.37 mm	90	-40 C	105 ░C	0.156 "	3.96 mm
