160134 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

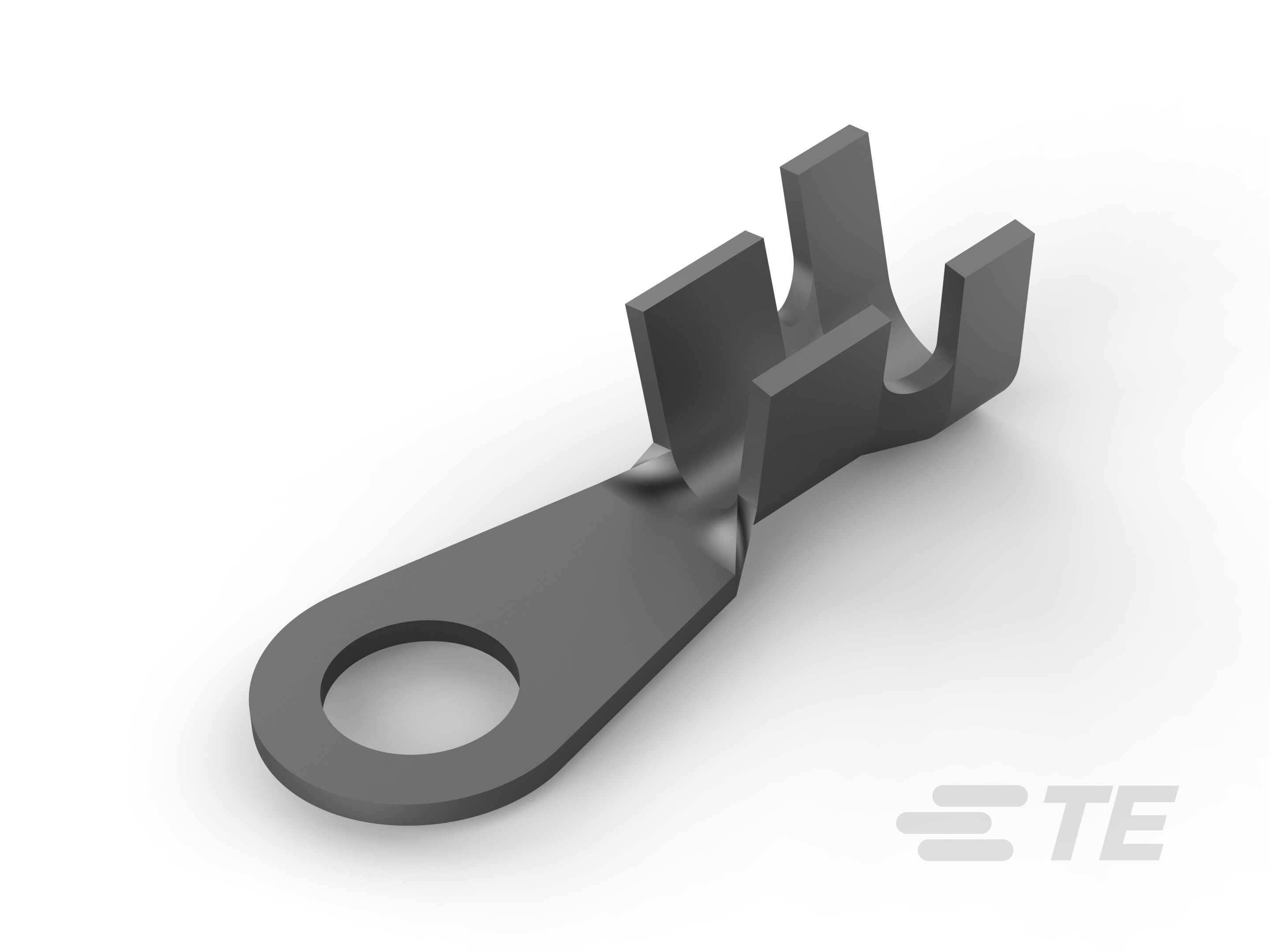

CONN RING CIRC 10-12AWG M5 CRIMP
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] | Insulation Diameter [Min] | Contact Material | Thickness | Thickness | Width - Outer Edges [x] | Width - Outer Edges [x] | Length - Overall [x] | Length - Overall [x] | Mounting Type | Insulation | Termination | Stud/Tab Size | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 12 AWG | 10 AWG | 0.15 " | 0.209 in | 5.31 mm | 3.81 mm | Brass | 0.03 in | 0.76 mm | 9 mm | 0.354 in | 0.945 in | 24 mm | Free Hanging (In-Line) | Non-Insulated | Crimp | M5 Stud | Circular |
