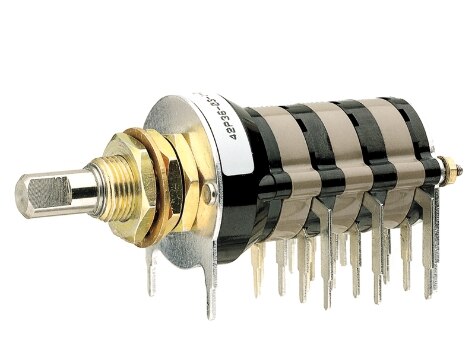

42SP36 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH ROTARY 8POS 1A 115V
| Part | Actuator Length [x] | Current Rating (Amps) | Voltage Rating - AC | Contact Material | Mounting Type | Contact Timing | Actuator Type | Number of Positions | Circuit per Deck | Termination Style | Number of Decks | Angle of Throw | Voltage Rating - DC | Index Stops | Depth Behind Panel [z] | Number of Poles per Deck | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 11.1 mm | 1 A | 115 V | Silver Alloy | Panel Mount Right Angle Through Hole | Non-Shorting (BBM) | Flatted (6.35mm Dia) | 8 | SP8T | PC Pin | 6 | 36 ° | 28 V | Fixed | 76.33 mm | 1 | |
Grayhill Inc. | 11.1 mm | 1 A | 115 V | Silver Alloy | Panel Mount | Non-Shorting (BBM) | Flatted (6.35mm Dia) | 5 | SP5T | Solder Lug | 4 | 36 ° | 28 V | Fixed | 52.4 mm | 1 | |
 Grayhill Inc. | 11.1 mm | 1 A | 115 V | Silver Alloy | Panel Mount | Non-Shorting (BBM) | Flatted (6.35mm Dia) | 9 | SP9T | Solder Lug | 4 | 36 ° | 28 V | Fixed | 52.4 mm | 1 | |
Grayhill Inc. | 11.1 mm | 1 A | 115 V | Silver Alloy | Panel Mount Right Angle Through Hole | Non-Shorting (BBM) | Flatted (6.35mm Dia) | 5 | SP5T | PC Pin | 8 | 36 ° | 28 V | Fixed | 93.9 mm | 1 | Shaft and Panel Sealed |
